Ask ten hay haulers how they strap a load of round bales and you’ll get ten answers — rope and a crescent wrench, a window-washing pole, “throw the whole roll, never the hook.” Underneath the folklore, though, there’s a real legal framework and a handful of habits that separate the operators who’ve never lost a bale from the ones cleaning hay off the interstate. This guide pulls the practical methods that experienced haulers actually use, lines them up against the federal securement rules, and shows where good net wrap makes the whole job easier.
How wide can you legally haul round bales?
The federal maximum legal vehicle-and-load width is 102″ (8 feet 6 inches) on the Interstate system and most state highways. That number includes the cargo, not just the trailer. It matters the moment you start stacking 5-foot bales, because two 5×6 bales set side by side measure about 120″ — a full 10 feet — which is already over width and would require an oversize permit in most states.
This is why so many haulers orient the load the way they do. As one Kansas operator put it, he loads so that two 5×6 bales sit 10′ wide, not 12′ wide — facing the flat ends out and running the bales down the length of the trailer rather than across it. A 10′ load is still over the 8′6″ line, so for any highway run you either keep the bales to a single 5-footer per row width, run narrower 4-foot bales, or carry the proper permit and markings. Check your own state’s farm-vehicle and implement-of-husbandry exemptions before you assume you’re covered — they vary, and an exemption that works for a tractor moving between fields rarely covers a loaded gooseneck on the highway.
How many tiedowns, and how strong?
Round bales hauled on a public road fall under the FMCSA cargo-securement rules in 49 CFR Part 393. Three requirements drive everything else:
- Aggregate strength. The combined working load limit (WLL) of all the tiedowns holding a bale or stack must be at least one-half the weight of that cargo (49 CFR §393.108). A loaded 5×6 grass bale commonly runs 1,300–1,700 lb, and a dense 5×6 alfalfa bale can top 1,800 lb, so the math adds up fast on a full deck.
- Minimum count. Under 49 CFR §393.110, cargo up to 5′ long and 1,100 lb needs at least one tiedown; longer or heavier articles need a minimum of two, plus one additional tiedown for every extra 10′ of cargo length. A trailer-length row of bales therefore needs several straps, not one.
- Blocked from rolling. Round bales are explicitly the kind of cargo that must be restrained against rolling as well as sliding. The bottom row should be cradled by the trailer sides, racks, or by the bales themselves nesting together — never free to roll.
Two 4″ ratchet straps in good condition usually carry a marked WLL well above what a single bale needs, but worn webbing, a bent ratchet, or a weak anchor point drops the rated number to the weakest link. Inspect for cuts and abrasion, and replace anything frayed.
Lengthwise or crossways: which way to strap
This is the question that starts every trailer-side argument, and the honest answer is it depends on your region and your load:
- Crossways, every row (the Midwest default). Throw each strap over the top across the load and ratchet down so the strap sinks into the bale. Most haulers running 2-on-2 or 2-on-1 stacks strap every top row plus the rear bottom bales this way.
- Lengthwise, front to back (the mountain-state habit). California, Montana, and Wyoming haulers commonly run a strap or rope the length of the deck and tension it with a come-along. The point is to stop the load from shifting forward under braking — useful on long downgrades.
- Both (British Columbia DOT). In BC, round-bale loads are required to be strapped lengthwise in addition to every row crossways — and you can’t simply tie two ordinary straps together; the lengthwise run wants a single strap around 80′ long.
For most short farm-to-farm hops with one bale on top, a single lengthwise strap down the center is plenty — provided the bottom row can’t roll. For anything at highway speed or multi-layer, strap every top row crossways and tie down the rear. Veteran haulers are blunt about why: a bale going off the side is rare, but the back end of the load dropping off is the failure that actually happens, so the rear row always gets a strap.

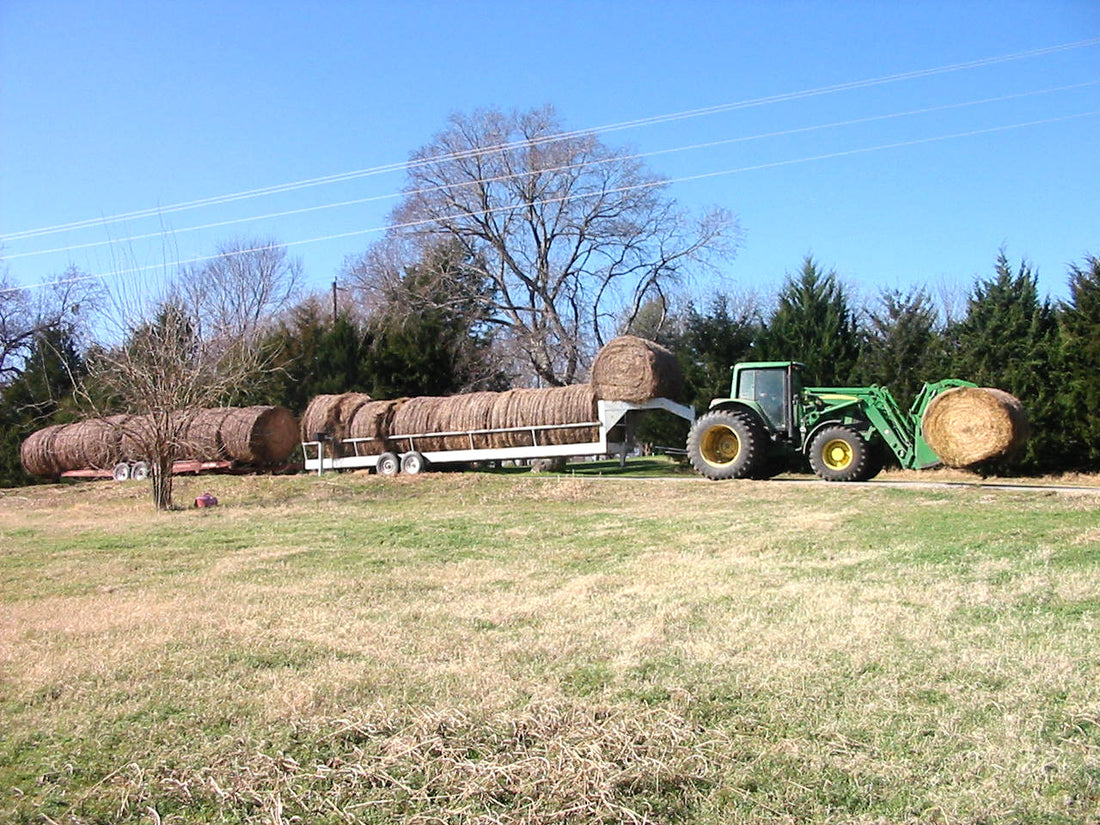

How to load round bales on a trailer
A load that’s built right is half-secured before you ever throw a strap. The method that experienced haulers describe again and again:
- Flat ends out, bales nested. Set the bottom row with the flat faces pointing forward and back so each bale nests against the next. This keeps the round sides from rolling and presents a flat surface to the strap.
- Keep the width down. Arrange 5×6 bales so the load is 10′ wide rather than 12′ — and narrower still if you’re trying to stay legal without a permit.
- Build 2-on-2 (or 2-on-1). Two on the bottom, two on top — or a single bale in the top valley for short runs. A bale sitting in the valley between two lower bales is far more stable than one perched on a flat top.
- Strap the top row and the rear. Run a strap over each top row and ratchet until the webbing sinks into the bale; add one across the rear bottom bales. As one North Dakota hauler who moved thousands of bales commercially put it: strap every top row and the very back, throw with the wind, ratchet them down so the strap sinks in — and you’ll never lose a bale.
Where net wrap fits into a safe load
Securement keeps the bale on the trailer; net wrap keeps the bale a bale. The two work together, and the difference shows up most on long hauls:
- Shape retention under strap tension. A firm, well-wrapped bale takes ratchet pressure without deforming, so the strap stays tight for the whole trip. A loose or twine-tied bale squashes, the strap goes slack, and you’re re-tensioning at the next fuel stop. If your bales are losing shape before they’re even loaded, start with why round bales don’t hold their shape.
- Edge integrity at highway speed. Wind shear works the shoulders of a bale at 60 mph. A bale wrapped edge-to-edge — or with extra shoulder cover — peels far less crop off the ends by the time you unload. That’s the same reason hay haulers in the western states specify wider, full-coverage wrap for commercial loads; see 48″ vs 51″ net wrap for how edge coverage changes transport losses.
- Fewer surface chunks on the road. Net wrap holds the outer layer together so you’re not shedding flakes of hay — and the cleanup and citation risk that comes with them — across someone’s windshield.
Loading and unloading at the yard is a separate skill from road securement. For grapple and loader technique that doesn’t tear wrap or gouge bales, see round bale handling without damage.
Pre-haul checklist
| Step | Why it matters |
|---|---|
| Load width ≤ 102″ (or carry a permit) | Stay legal; avoid an over-width citation |
| Flat ends out, bottom row nested | Stops bales rolling; gives straps a flat bite |
| Tiedown WLL ≥ ½ the load weight | Meets 49 CFR §393.108 |
| At least 2 tiedowns, +1 per extra 10′ | Meets 49 CFR §393.110 |
| Strap every top row + rear bottom row | Back-end drop-off is the real risk |
| Inspect webbing, ratchets, anchors | Rated strength is only as good as the weakest link |
| Re-check tension after the first few miles | Bales settle; straps loosen early in the trip |
Frequently asked questions
How many straps do I need for a load of round bales?
At minimum, follow 49 CFR §393.110: two tiedowns for any article over 5′ long, plus one more for each additional 10′. In practice, most haulers strap every top row and the rear bottom row, and confirm the combined working load limit is at least half the load’s weight.
Can I haul two 5×6 bales side by side legally?
Usually not without a permit. Two 5-foot bales side by side span about 120″ (10′), well over the 102″ federal width limit. Run a single 5-footer per row width, switch to narrower bales, or carry the oversize permit and markings your state requires for that route.
Do round bales really have to be blocked from rolling?
Yes. The federal securement rules treat round bales as cargo that must be restrained from rolling as well as sliding. Nest the bottom row flat-end-out so the bales cradle each other, use trailer racks or side rails, and don’t rely on a single over-the-top strap to hold a free-rolling bottom row.
What’s the safest way to throw a strap over a tall load?
Tie a ¼″ rope to a weight and throw the rope, then pull the strap across — or use a hooked window-washing pole. Whatever you do, throw the soft strap roll, never the steel hook or wrench. Warn your helper on the far side, and keep your footing off slick tires and fenders.
Does net wrap actually help during transport?
It helps two ways: a firm, net-wrapped bale holds its shape under ratchet tension so straps stay tight, and full edge coverage resists wind shear that peels crop off the shoulders at highway speed. Loose or poorly wrapped bales deform, loosen straps, and shed hay on the road.
Wrapping bales that travel well
Safe hauling starts at the baler. A dense, fully covered bale rides better, straps tighter, and arrives looking like it left. XES Extreme bale net wrap is built to hold edge-to-edge so bales keep their shape from the field to the stack to the customer’s yard — shop factory-direct net wrap, or use the baler size checker to confirm the right width for your machine.
