Seller disclosure: XES sells bale net wrap. We cannot certify machine fit from a Vermeer model family, bale width or chamber width alone. Keep the comparison product-neutral until the operator or parts manual for the exact machine and the current physical roll label agree on width, usable length, core, maximum package diameter, axial length and loading hardware. If any item is missing, treat fit as unverified.
Quick answer: Choose net wrap for a Vermeer baler by exact machine identity and binding configuration, not by a family-name shortcut. Record the complete model, 17-digit VIN or older 6-digit serial number, year and market, installed net/twine option and later modifications. Then use the exact Operator's, Maintenance and Parts Manual to verify the entire roll package before comparing any product label.
Use a manual-first Vermeer net-wrap workflow
Vermeer has reused 504, 604 and 605 family numbers across multiple generations and configurations. Those numbers describe a bale-size family; they do not prove that a particular machine has a netwrap system or that a roll package will fit its holder, brake and feed path. In this article, round-bale dimensions are written as width × diameter.
- Identify the exact machine. Photograph the model and serial plate. Record the complete suffix or trim, the 17-digit VIN or older 6-digit serial, year, market and any evidence of a replacement monitor, aftermarket binding kit or modified roll holder.
- Confirm the installed binding option. Do not assume netwrap is present because another machine in the family has it. Official Vermeer literature lists netwrap as optional on several configurations and standard on others.
- Obtain the serial-specific manuals. Vermeer's official product-manual page asks owners to have the model and 17-digit VIN available; older equipment may use a 6-digit serial number. Request the Operator's, Maintenance and Parts Manual for that exact machine and language.
- Verify the complete approved package. Find the manual or parts-book requirements for net material and width, core, maximum roll outside diameter, maximum axial length, holder capacity, spacers or end hardware, brake/tension path, feed rollers, cutter, sensors and settings. A nominal bale width does not establish these values.
- Match the physical roll label. Use the label on the roll being loaded, not a store title or an old invoice. Match every required dimension and usable length. If a required value is absent from either source, stop and ask a Vermeer dealer to resolve it.
Why this is stricter than a width chart: edge-cover systems, roll-holder limits, spacer hardware and feed geometry can make the approved net package different from the nominal bale width. A family name, visual similarity or another operator's successful roll is not compatibility evidence.
Buyer verification table
| Verify before purchase | Machine-side evidence | Roll-label evidence | Pass condition | If unresolved |
|---|---|---|---|---|
| Exact identity | Complete model, VIN/serial, year/market, net or twine configuration, modifications | Not applicable | Manual and parts book match the physical machine | Dealer identifies the serial-specific documents |
| Net material and usable width | Exact manual or approved-parts specification | Material and usable width on the current physical label | Material and width match exactly | No product recommendation |
| Core and axial package | Approved core specification, maximum axial length, spacers and end hardware | Core and roll length across the holder axis | Package seats correctly with specified hardware | Manual-required; do not improvise spacers |
| Outside diameter and handling | Maximum package outside diameter, holder capacity and loading method | Actual labeled package dimensions and weight | Within every machine limit; handling follows the manual | Dealer confirmation before loading |
| Usable roll length | Any package limit stated by the exact manual | Usable length on the current label | Length does not conceal a larger or heavier package | Do not infer fit from footage |
| Feed, tension and cut system | Routing, brake/tension, feed roller, cutter, sensor and monitor procedures | Correct unwind direction and intact edges | Package matches the documented hardware, routing and setup | Dealer inspection for missing, damaged or altered hardware |
Vermeer model evidence: what is verified and what is not
The table below is an evidence table, not a sales-fit matrix. Bale dimensions and option status come from official Vermeer sources. None of those public sources supplies the complete roll-holder package specification needed to approve a third-party roll.
| Exact model/configuration | Official bale size (width × diameter) | Net option evidence | Verified roll-package requirement | Source/version/access date | Unresolved/manual check |
|---|---|---|---|---|---|
| 504R Classic / Signature / Premium | 47 in × 36-60 in | Classic and Signature: optional netwrap. Premium: standard. Mechanical tension adjustment. | Unknown from public brochure; manual-required | 2024 Vermeer Balers, pp. 30-31; accessed Aug. 16, 2026 | Width, core, outside diameter, axial length, holder capacity, spacers, feed/cutter details |
| 604R Classic / Signature / Premium | 47 in × 36-72 in | Classic and Signature: optional netwrap. Premium: standard. Tension is controlled through the machine control system. | Unknown from public brochure; manual-required | 2024 Vermeer Balers, pp. 32-33; accessed Aug. 16, 2026 | Width, core, outside diameter, axial length, approved spacers, feed/cutter/sensor settings |
| 605N | 61 in × 36-72 in | Netwrap optional; mechanical tension adjustment; extra-roll storage standard | Unknown from public brochure; manual-required | 2024 Vermeer Balers, pp. 34-35; accessed Aug. 16, 2026 | Confirm the installed net option and serial-specific width, core, package limits, routing, brake, cutter and sensors |
| 605N Cornstalk Special (605N CSS) | 61 in × 36-72 in | Netwrap standard; mechanical tension adjustment; its driveline and crop-handling equipment differ from the base 605N | Unknown from public brochure; manual-required | 2024 Vermeer Balers, pp. 34-35; accessed Aug. 16, 2026 | Do not transfer a base-605N roll or setting assumption; verify the CSS manual and physical label |
| 605S Rancher | Approximately 5 ft wide × up to 6 ft diameter; Vermeer calls this its "6-ft by 5-ft" family using diameter × width naming | Mechanical netwrap with a dual spiral roller; optional net-lift system | No package dimensions in launch release; manual-required | Vermeer 2026 product launch; accessed Aug. 16, 2026 | Exact width, core, outside diameter, axial length, holder limit, spacers, brake/feed/cutter settings |
| 604S Rancher / Signature / Premium | Approximately 4 ft wide × up to 6 ft diameter; Vermeer calls this its "6-ft by 4-ft" family using diameter × width naming | The launch release says all three share a mechanical netwrap system and Atlas Pro control system | No package dimensions in launch release; manual-required | Vermeer 2026 product launch; accessed Aug. 16, 2026 | Do not transfer 604R package assumptions to 604S; verify exact trim, serial and manual |
| Rancher 6650 | 61 in × 36-66 in | Round baler with optional netwrap; mechanical tension; net feeds to the main belts through a spiral roller | Unknown from public brochure; manual-required | 2024 Vermeer Balers, pp. 27 and 38-39; accessed Aug. 16, 2026 | Separate architecture and 66-in maximum diameter; do not fold it into the 605N/605S family |
Names not treated as verified configurations: the official 2024 baler brochure and 2026 launch release reviewed here do not identify a "605N Select" or a separate, unsuffixed "605S" model. Do not attach specifications to either name without a serial-specific Vermeer document. Likewise, older 504, 604, 605 and Rebel machines are not one shared feed system. Keep each historical suffix and installed binding kit separate and use its exact manual.
A Vermeer Net size list is not a machine-fit chart
Vermeer's 2025 Vermeer Net brochure lists nine roll-size combinations: 48 in and 51 in widths at 5,000 ft or 9,840 ft; 53 in at 9,840 ft for limited Vermeer balers; 64 in at 7,000 ft or 8,800 ft; and 67 in at 7,000 ft or 8,000 ft. The brochure says Vermeer Net fits "most balers," not every Vermeer configuration, and directs buyers to a dealer for the limited 53-in application. It does not publish the machine-side core, outside-diameter, axial-length or holder-capacity limits needed to certify another roll.
For current XES inventory, 9,840 ft is common on 48-in and 51-in variants, while 7,000 ft is common on 64-in and 67-in variants. Those numbers describe usable length only. The current physical label and exact machine package specification still control; footage cannot prove fit, and a Shopify variant title is not a substitute for the label.
Let the exact operator manual govern coverage and settings
Do not carry a universal wrap count, brake setting or feed adjustment from one Vermeer model to another. Crop, storage plan, bale diameter, binding architecture and the installed controls all matter. Use the exact operator-manual procedure for wrap application count, net tension, start position, feed path and cutter timing.
Net is porous and is not a waterproof film. Wider net also does not guarantee longer outdoor storage life or better crop containment. Vermeer's 2025 brochure describes water-shedding capability from a tight, dense bale; it does not promise a waterproof barrier. Judge the result by complete coverage, secure tails and repeatable acceptable bales under the operating conditions specified in the manual.
Safety boundary before inspecting or loading netwrap
The exact Vermeer manual controls. Before approaching the binding system, use a level site; disengage the PTO; park and lower or close components as directed; set the brake; stop the engine; remove the key; and wait for all motion to stop. Disconnect monitor or controller power if the manual requires it. If any component must be raised, install the manufacturer-specified tailgate or loader lock. Never rely on hydraulics, bypass a guard or reach into the feed, brake or cutter area.
- Handle the roll using its actual labeled weight and the manual's loading method. Do not estimate from width or footage.
- Before energizing the machine, verify guards, specified spacers/end hardware, routing, brake/tension path and cutter position with the system de-energized.
- Powered observation belongs only in the tractor seat or another location expressly allowed by the exact manual.
- Stop and involve a Vermeer dealer when the manual is unavailable, hardware is unknown or modified, guards are missing, the holder or cutter is damaged, or the monitor reports a binding-system fault.
Frequently asked questions
Can I choose net wrap from the Vermeer model number alone?
No. Record the complete model and suffix, 17-digit VIN or older 6-digit serial, year and market, installed net/twine option and modifications. Then match the exact manual's complete roll-package requirements to the current physical roll label.
Do all 605-family Vermeer balers use the same netwrap system?
No. Official Vermeer sources show configuration differences even between the 605N, 605N Cornstalk Special and 605S Rancher. The Rancher 6650 is a separate round-baler line with a 66-in maximum bale diameter and its own binding architecture. Do not transfer roll or setting assumptions between them.
What if the manual does not list core or maximum roll-package dimensions?
Treat fit as unverified. Ask a Vermeer dealer to identify the approved part or package for the exact serial number, including usable width, core, outside diameter, axial length, holder capacity and required spacers or end hardware. Do not recommend an XES SKU while any required value is unknown.
Does a 9,840-ft or 7,000-ft roll automatically fit?
No. Usable length does not establish roll width, core, outside diameter, axial length, package weight or feed compatibility. The exact machine manual and the current physical roll label must agree on every required value.
Is bale net wrap waterproof?
No. Bale net wrap is porous, not a waterproof film. A tight, dense and completely covered bale may shed water better, but wider net or more net does not guarantee storage life. Follow the exact operator manual and a crop-appropriate storage plan.
Source and method note: Model facts above were checked against official Vermeer publications available by full GET on August 16, 2026: the 2024 Vermeer Balers brochure, the 2025 Vermeer Net brochure, the 2026 product-launch release and Vermeer's product-manual page. Public brochures do not provide the complete roll-package dimensions needed to certify third-party fit, so unknown values remain manual-required rather than inferred.

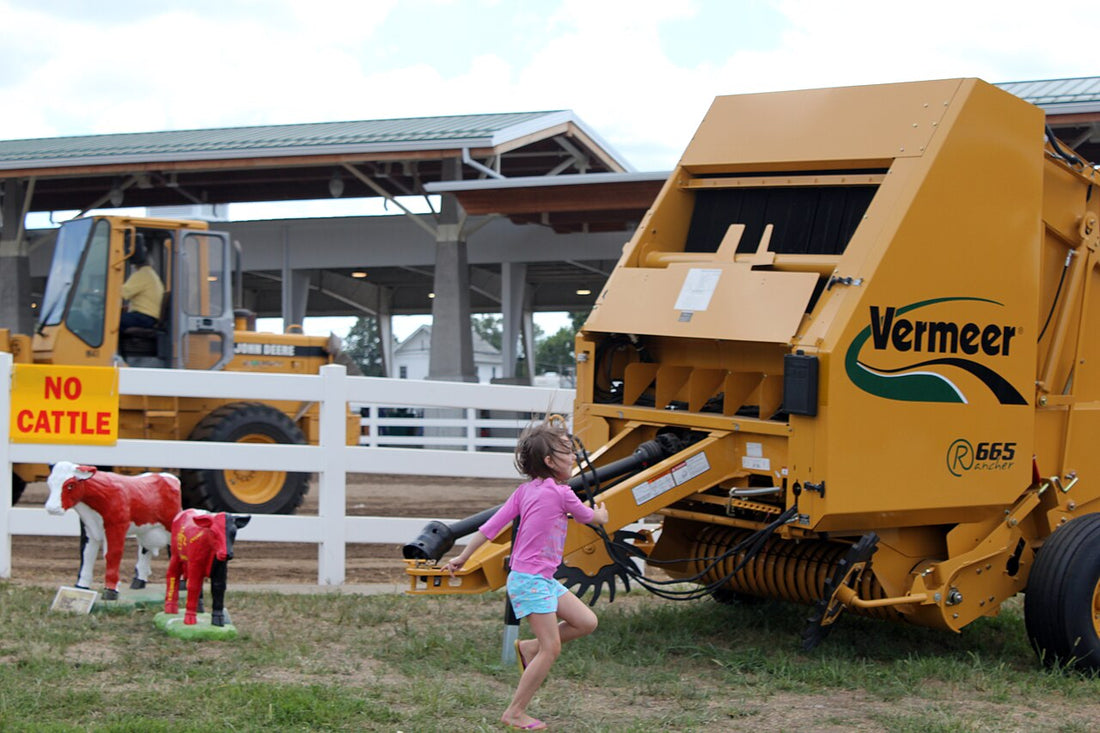

Featured photo: Vermeer baler, showing a Vermeer Rancher 665 round baler at the 2011 Iowa State Fair, by Quinn Dombrowski, licensed under CC BY-SA 2.0, via Wikimedia Commons.
