Quick answer: Treat a round baler monitor problem as an identification job before a repair job. Record the full baler model and serial number, the exact monitor or controller, the complete code, and when the symptom appears. Then separate a dark display, restart, lost communication, wrong sensor status, missing command, stored code, vibration fault, or moisture-only issue. With the machine safely de-energized, an owner can check only the exact OEM fuse, seated connectors, visible harness damage, and manual-specified battery, ground, and tractor-supply connections. Do not probe a powered baler or assume a mechanical net-wrap fault is a monitor fault.
Seller disclosure: XES manufactures and sells bale net wrap. We do not sell baler monitors or controllers, service farm equipment, or represent any baler manufacturer. This product-neutral guide uses official OEM manuals and portals; the operator and service information for your exact model, serial range, attachment, and software version always supersedes it.
A monitor can be completely dark while the baler has a supply problem, or it can work normally while a mechanical wrap component is jammed. The display alone does not identify the failed part. A safe diagnosis starts by naming the machine and symptom precisely, then following the matching OEM procedure without improvising around moving components.
Make the baler safe before opening, inspecting, or touching anything
Before opening a cover or inspecting a connector: Park on level ground, set the parking brake, lower the pickup and gate unless the exact manual requires another position, disengage the PTO, shut off the engine, remove the key, and wait for all motion to stop. Disconnect monitor, controller, and actuator power exactly as the manual directs. Relieve stored hydraulic and electrical energy.
If the gate must be raised, install the exact mechanical gate lock or support specified by the manual. Never trust hydraulics. Keep hands and tools away from the knotter, twine arm, net knife, feed rollers, actuators, belts, and chains.
Do not stand beside an operating baler to watch a wrap or tie cycle. A powered diagnostic is appropriate only when the exact OEM procedure requires it. Run that test from the normal operator position with covers and shields latched, bystanders clear, and only the specified test points, ranges, equipment, and training. If a procedure requires access near a knife, actuator, guarded harness, or raised gate, stop until you have the manual and the required lock or support.
Identify the machine and control system before troubleshooting
Model names that sound similar can use different monitors, channel numbers, wiring, software, and diagnostic routes. Write down the following before unplugging anything:
| Identify | Record exactly | Why it matters |
|---|---|---|
| Baler | Full model plus PIN, VIN, or serial number | Manuals and parts can change at a serial break |
| Attachment | Fitted twine, net-wrap, or combination attachment and its part or option number | A monitor menu may show functions the machine does not have |
| Control | Monitor or controller full name, part number, software, and version | BaleTrak Pro, Bale Command, and ISOBUS screens do not share one test map |
| Tractor supply | Tractor model and the exact OEM-specified power connector in use | Supply requirements and protection are configuration-specific |
| Symptom | Exact displayed code, when it appears, and whether all functions or one function failed | A code is evidence only within the correct manual family |
Photograph connector orientation, seals, locks, wire routing, controller labels, and the display before disturbing them. A clear before-photo prevents a rotated connector, misplaced clamp, or wrong part number from becoming a second fault.
Choose the correct symptom branch
| Observed symptom | Safe first classification | Do not assume |
|---|---|---|
| Monitor completely dark | No display power or no wake-up; use the exact supply and fuse section | That the monitor itself has failed |
| Boots, then restarts or resets | Record load, engine speed, temperature, and vibration when it happens | A universal shutdown voltage |
| Display works but reports no baler communication | Identify the bus or controller family and save the exact message | That a sensor, actuator, or display is interchangeable |
| One sensor or status is wrong | Name the one input, its physical state, and when the display disagrees | That every monitor function shares the fault |
| Actuator or command is absent | Separate a missing command from a mechanical obstruction using the exact manual test | That manual tie success clears the relay, actuator, controller, or feedback circuit |
| A code is present | Copy every character and the operating condition; use the matching publication | That a similar-looking code from another generation means the same thing |
| Intermittent with vibration or heat | Record location, run time, ambient conditions, and whether a restart changes it | A hidden broken wire location or heat-failed component without testing |
| Moisture value only is wrong | Treat it as a sensor, calibration, contact, crop, or sampling question | That the whole monitor is defective |
A mechanical wrap fault is not automatically a monitor fault. Net that is routed incorrectly, a knife or feed path that is obstructed, or a damaged mechanical component can leave the display working normally. Do not command movement repeatedly to force a stalled mechanism.
Do only these de-energized owner checks
- Verify the exact OEM fuse and rating. Use the location and rating in the publication for the fitted monitor or controller. Replace only with the specified type and rating. A fuse that opens again is a stop condition, not permission to fit a larger fuse.
- Confirm each accessible harness connector is fully seated. With power disconnected as directed, inspect the lock, seal, shell, and visible pins for damage, displacement, moisture, or corrosion. Do not force a connector.
- Trace only the visible, safely accessible harness. Look for rubbing, pinching, crushed conduit, unsupported weight, heat damage, or exposed conductor. Do not enter a guarded area or reach past belts, chains, rollers, knives, or actuators.
- Inspect battery and ground connections only as the manual specifies. Identify the actual connection point and visible condition. Do not add a new ground or change the circuit layout as a diagnostic shortcut.
- Confirm the tractor supply uses the OEM-specified connector. Do not prescribe a convenience outlet, direct-battery lead, or homemade power harness across brands. The correct source and protection depend on the exact control system.
Do not substitute a different fuse, jump or bypass a switch or sensor, pierce insulation, add a ground, apply dielectric grease unless the exact connector procedure specifies it, rewire the supply generically, or swap controllers to see what happens. These shortcuts can hide the original fault, damage electronics, defeat safety functions, or create unexpected motion.
Use the correct OEM diagnostic family
John Deere: keep BaleTrak Pro channels separate from R-series ISOBUS tests
For the John Deere 468, 468 Silage Special, and 568 with BaleTrak Pro, the official operator manual assigns CH018 to net-wrap actuator current. It is a powered actuator test, not a general wiring check. Deere specifies key on, engine not started, exact current ranges during travel and stall, then returning the counterknife home, switching off, and removing the key.
On the same 468/568 manual family, CH019 tests tractor convenience-outlet voltage under the manual's specified actuator load. Deere warns that this outlet is connected directly to the battery, so turning the tractor key off does not disconnect monitor power; disconnect the monitor power cord before working around the knife arm. When the CH019 procedure uses the net-wrap actuator, Deere also requires removing the net roll because an extended actuator followed by PTO engagement can feed net into an empty baler and damage the pickup or feed system. Its threshold belongs to that test and configuration. It does not establish a universal baler-monitor voltage rule or a generic direct-battery prescription.
The 460R and 560R use a different ISOBUS interface. Their official manual routes commanded checks through Baler Diagnostics > Test Output, where Deere warns that machine parts move and requires everyone to stay clear. The R-series also has separate pages for net-wrap actuator current and tractor battery voltage. Do not call these R-series ISOBUS functions CH018 or CH019.
New Holland: verify the exact Bale Command publication
No public serial-specific New Holland 650 manual page was found that verifies a universal setup, automatic-trigger threshold, or calibration sequence for the fitted Bale Command system. Use the official New Holland self-repair and manual resources, then match the baler serial number, attachment, monitor part number, and software. Manual tying does not universally clear the relay, actuator, controller, or feedback path.
Case IH: use FieldOps or the official manual archive
Case IH directs owners of 2007-present equipment to manuals and updates through FieldOps and routes older publications through its Document Management Center. Start at the official Case IH operator-manual page. Without the exact model, year, serial range, wrap attachment, and display, do not carry a test, sensor gap, code meaning, or controller diagnosis from one RB or RBX machine to another.
Vermeer: request the manual by VIN or serial number
Vermeer provides operator, maintenance, and parts manuals to registered owners through its official product-manual request. The request uses the model plus a 17-digit VIN, or a 6-digit serial number on older equipment. If a public test route is unavailable, record the exact display and configuration and ask the dealer for the correct manual procedure rather than inferring from another Vermeer generation.
AGCO and Massey Ferguson: use the customer portal and DTC lookup
The official AGCO Customer Portal provides operator manuals and diagnostic-trouble-code lookup. Massey Ferguson also directs owners to the portal from its service and information page. If the exact round-baler monitor or controller route is not public, use the serial-specific manual or dealer diagnostic system; do not translate a Deere, New Holland, Case IH, or Vermeer procedure into an AGCO machine.
Record observations before the dealer or next safe test
A short evidence log is more useful than a guessed part name. Record:
- Full model, serial or VIN, wrap attachment, monitor or controller part number, and software version.
- The exact code or message, including spaces, punctuation, channel, and whether it is active or stored.
- Whether the display is dark, restarting, disconnected, showing one wrong input, or missing one output.
- The step in the bale cycle when the symptom appears: startup, chamber fill, full-bale alert, wrap command, cut, gate open, or reset.
- Engine state, PTO state, run time, ambient temperature, moisture conditions, vibration or bump, and whether cycling normal operator power changes the symptom.
- Which de-energized checks were completed and what was seen, without cleaning away evidence first.
- Before-and-after photographs of accessible connectors, locks, seals, harness routing, labels, and the display.
Do not erase codes, change calibration, update software, or disturb multiple connectors before saving this information unless the exact manual tells you to. One change at a time preserves evidence.
Moisture-display values are aids, not a safety release
An in-cab moisture number does not by itself declare hay safe to bale, store, or feed. The University of Florida IFAS guide to forage moisture testing explains that electronic conductance readings vary with compaction and electrode contact, bale density, sample area, forage texture, and species.
Calibration and temperature effects must stay tied to the exact sensor. For example, the official manual for the John Deere SW07350 Baler Mounted Low Moisture Range Hay Tester says bale density, windrow size and shape, time of day, hay temperature, and climatic conditions affect its readings. Deere also states that this tester was calibrated with 100% alfalfa and can read higher as grass content increases. Its separate calibration procedure recalibrates the circuit to the sensor's current environment. Do not apply those corrections to another monitor unless its own manual says to.
Kansas State University's round-bale moisture-sensor study compared commercial systems with oven-dried core samples across growth stages, moisture levels, sampling locations, and baler compression settings. That is why one display value should be checked against representative independent sampling and a direct drying or qualified laboratory method when the decision affects storage or fire risk.
For a representative hay-lot sample, the University of Nebraska-Lincoln recommends a core sampler across 15 to 20 bales with cores at least 12 to 18 inches deep. Use a safe sampling protocol after the baler and handling equipment are secured. Hand feel, twisting hay, or guessing by bale weight is not a moisture go/no-go test.
Stop and call the dealer or a qualified technician when
- A specified fuse opens again.
- A connector is melted, discolored, hot, or smells burned.
- An actuator moves unexpectedly or a command produces the wrong motion.
- Communication loss or a code remains after the exact owner-level manual checks.
- The suspect harness enters a guarded area or requires access near a knife, roller, belt, chain, actuator, or raised gate.
- A gate lock, shield, interlock, connector lock, seal, or other safety device is missing or damaged.
- The model, serial range, fitted attachment, monitor, controller, software, tractor supply, or test procedure is uncertain.
Give the dealer the evidence log and photos. Ask for the operator or service publication number used for the diagnosis so any next step remains tied to the correct configuration.
Frequently asked questions
Why is my round baler monitor completely dark?
A dark monitor identifies a no-display symptom, not the failed part. Record the baler model and serial number, monitor part number, tractor power source, and whether every function is lost. After the full shutdown procedure, check only the exact OEM fuse and rating, fully seated accessible connectors, visible harness damage, and manual-specified battery, ground, and supply connections. Stop if the fuse opens again or a connector is hot or melted.
Can I test a baler monitor or actuator with the machine running?
Only when the exact OEM procedure requires a powered test. Run it from the normal operator position with covers latched, bystanders clear, and the specified test points, ranges, equipment, and training. Otherwise park on level ground, set the brake, lower the pickup and gate, disengage the PTO, stop the engine, remove the key, wait for all motion, disconnect power as directed, and use the exact gate lock if the gate must be raised.
What do John Deere BaleTrak CH018 and CH019 test?
On the official John Deere 468 and 568 BaleTrak Pro manual family, CH018 tests net-wrap actuator current and CH019 tests tractor convenience-outlet voltage under the specified actuator load. For CH019, key-off does not disconnect battery-direct monitor power; the manual requires disconnecting the monitor power cord around the knife arm. When the test uses the net-wrap actuator, remove the net roll as directed. Those channel assignments and ranges are not universal. The 460R and 560R use separate ISOBUS Baler Diagnostics and Test Output screens, so do not apply CH018 or CH019 instructions to an R-series display.
Does manual tying prove the relay, actuator, or controller is good?
No. Manual operation can be a useful observation, but it does not universally clear the relay, actuator, controller, wiring, feedback input, or automatic logic. Record exactly which manual command works and which automatic step fails, then use the serial-specific manual. Do not transfer a setup, threshold, calibration, or code meaning from a forum or another model.
Can I trust the moisture number on the baler monitor?
Use it as an aid, not a safety release. Crop, calibration, electrode contact, bale density, sample location, and sampling method can change the reading. The John Deere SW07350 manual also identifies hay temperature for that tester; apply temperature handling only when the exact sensor manual specifies it. Verify consequential storage or fire-risk decisions with representative independent samples and a direct drying or qualified laboratory method. Hand feel, twisting hay, and estimated bale weight are not moisture go/no-go tests.
Source note: Exact John Deere channel descriptions and powered-test cautions come from the linked Deere operator-manual pages. New Holland, Case IH, Vermeer, AGCO, and Massey Ferguson links lead to their official manual or support portals because a public serial-specific test was not verified for every configuration. Moisture limitations come from the linked university sources. No forum quotes, repair-time claims, cost claims, prevalence estimates, or monitor-interchangeability claims are used.

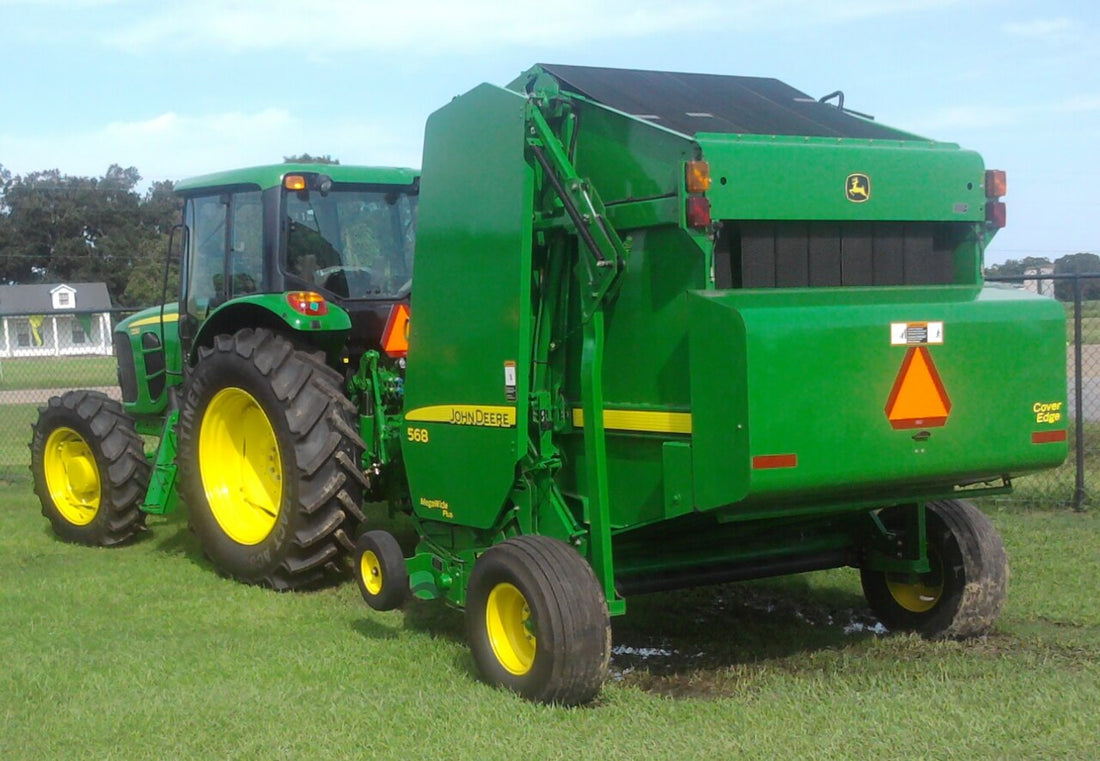

Featured photo: John Deere round baler 568 by Dudley B. Batchelor, Jr., licensed under CC BY-SA 2.0, via Wikimedia Commons.
