Quick answer: There is no universal round baler speed or PTO rpm. Identify the exact tractor and baler model, full serial numbers, installed options, controller, PTO shaft and selected mode, tire/load configuration, and current manual revisions. Use the baler manual for its rated PTO requirement and the tractor manual for the engine-rpm/PTO-mode relationship. Estimate incoming crop mass flow from measurements, not from a mph target or bale count, and stay inside every manual, alarm, capacity, terrain, visibility, stability, braking, and operator-control limit. If any required document or configuration is unknown, stop and contact the dealer.
What this round baler speed guide does — and does not do
This page owns one job: deciding whether a specific tractor-baler-crop setup is operating inside its documented PTO and travel-speed envelope, then recording enough evidence to diagnose a problem safely. It does not replace focused procedures for clearing plugs, sizing tractor power, repairing a pickup, changing bale density or core settings, preventing fire, or maintaining driveline and protection components.
The controlling documents are the operator's manuals for the exact tractor and exact baler, matched to both full serial numbers, plus documentation for installed pickup, cutter, rotor, core, controller, driveline, tire, hitch, hydraulic, and retrofit options. A manual for an adjacent model, earlier serial range, or different option package is not a substitute. Some OEM manuals require registration, purchase, or dealer access; that dependency is real. If the correct revision cannot be confirmed, the safe next step is the dealer, not a generic setting found online.
Keep these variables separate
A useful diagnosis starts by naming the quantity being observed. These variables interact, but one must never be substituted for another:
| Variable | What it means | Where its limit or meaning comes from |
|---|---|---|
| Tractor engine rpm | Crankshaft speed shown by the tractor tachometer or controller. | Exact tractor manual and selected transmission/PTO mode. |
| PTO shaft rated speed and mode | The required implement-input shaft speed and the selected 540, 540E, 1000, or 1000E mode, if those modes exist on that tractor. | Both exact manuals. A displayed engine rpm is not PTO shaft rpm. |
| Driveline | Shaft, guards, joints, telescoping members, phasing, hitch relationship, and implement input connection. | Exact tractor, baler, and driveline documents for the installed parts. |
| Pickup, rotor, and feed speed | Motion of crop-handling components, which may be mechanically linked or option-dependent. | Exact baler manual and installed pickup, rotor, cutter, or feed option. |
| Ground speed | Distance traveled per unit time, measured by a verified source rather than assumed from gear choice. | Safe field conditions, tractor data, and all machine and operator-control limits. |
| Windrow mass per unit length | Measured crop mass along a known ground distance, stated on an as-fed or dry-matter basis. | Field sampling method and representative moisture/dry-matter measurement. |
| Crop condition | Crop species, maturity, moisture or dry-matter content, stem and leaf condition, and contamination. | Representative field measurements and the exact baler manual. |
| Bale geometry and state | Bale width × diameter, core architecture, density setting or measurement, and observed shape. | Exact baler configuration, manual, controller, and measurement method. |
| Controller evidence | Active channel, settings, alarms, codes, event time, and cycle count. | Exact controller and baler documentation. |
| Clutch and shear protection | Protection events, not permission to change a spring, torque, bolt, reset, or procedure. | Exact serial-specific baler and driveline documents; dealer when uncertain. |
| Tractor and baler tire/load setup | Exact tire size, construction and type, axle and implement loads, ballast, and road/field speed category. | Tractor and baler manuals plus the exact tire manufacturer's load/inflation/speed tables. |
Rated PTO: use both exact manuals
The baler manual identifies the required implement-input speed, shaft and driveline configuration for that exact machine. The tractor manual explains which PTO shaft, selected mode, controls, and engine-rpm indication produce the permitted output. Confirm the installed hardware as well as the labels; an unknown retrofit, adapter, replacement driveline, or changed gearbox is a dealer question.
Do not generically lug the tractor, overspeed or under-speed the baler, select economy PTO, change between shafts or modes, or alter engine rpm to chase fuel use, leaf retention, density, output, or wear. Economy PTO may change the engine speed used to produce a shaft speed, but it is acceptable only when both exact manuals authorize that exact tractor-baler-load configuration. The absence of an alarm is not proof that the configuration is correct.
Why one model's numbers cannot become a general range
The following primary-source example is scoped only to John Deere 460M and 560M balers covered by operator's manual OMFH331594. Applicability still depends on the full serial number, installed pickup/feed/core/controller options, tractor, and current manual revision. These are records of what five exact manual pages say, not recommendations for another machine. Notice that the pages distinguish tractor engine rpm, rated PTO shaft speed, ground speed, crop condition, controller state, and a diagnostic test. Collapsing those quantities into one “PTO rpm range” or “baling speed” would change the meaning.
| OMFH331594 page | What this exact 460M/560M page says | Boundary and next document |
|---|---|---|
| Recommended Baling Guidelines DP99999,0000E20-19-20171127 |
It identifies tractor engine speeds of 1800 rpm in normal to moderately heavy crop, an example of 1500 rpm in some light crop, and above 1800 rpm in some heavy crop. It separately gives crop-preparation and BaleTrak shape-display rules: windrows up to half the chamber width use a page-specific crisp side-to-side pattern; full-chamber-width windrows eliminate weaving. It also states a hay-moisture condition with silage/preservative exceptions. | These engine-rpm and steering statements are inseparable from this page's crop, windrow, controller, density, sensor, tire-spacing, and option conditions. Read the linked page plus its referenced Adjust Tractor Wheels, Bale Shape Sensor, Bale Density, and handling sections. Do not copy its numbers or weaving pattern to another baler, serial, controller, crop, or terrain. |
| Check Baler Performance in the Field DP99999,0000D18-19-20170928 |
For a defined field performance check, it specifies model-specific full-width windrows, maximum density, 1800–2000 tractor engine rpm, and 4–5 mph while observing named gauge and monitor results. | This is a diagnostic test condition, not a universal production speed. Use only when the exact model/serial/options and all stated setup conditions match; otherwise use the applicable performance-check page or dealer procedure. |
| Start a Bale in Difficult Conditions SF04007,00010BC-19-20171127 |
For its specified difficult-start condition, it says to select a gear producing 4–5 mph at rated PTO, reduce tractor engine speed to 900–1200 rpm only while starting, travel at least 10 ft without stopping, and then resume rated PTO speed. The same page branches to crop-, pickup-, windrow-, core-, belt-, and starter-roll checks. | This temporary sequence is not general permission to operate below rated PTO. Confirm the exact condition and follow every linked pickup, crop, variable-core, belt, and starter-roll section; unresolved starting problems go to the dealer. |
| Bale Short, Dry, Slick Crops DP99999,0000DF3-19-20170920 |
For this named crop condition, it allows 1500 engine rpm or below with a higher gear to maintain ground speed, but couples that statement to exact pickup, density, variable-core, compressor, knife, spindle, float-spring, windrow, monitor-compensation, and wrap/twine provisions. It also says to disengage PTO whenever crop is not being fed. | The engine-speed sentence cannot be detached as a fuel, wear, density, or universal PTO claim. Use the page only for a matching 460M/560M serial/options/crop setup and open every referenced adjustment or service section before action; unknown configuration means dealer. |
| BaleTrak Pro and Plus Monitor-Controller Operation DP99999,0000DF1-19-20170829 |
For the documented monitor cycle, it says to stop travel and maintain engine and rated PTO speed during wrap and eject. The page separately explains controller indicators and option-dependent behavior. | This is cycle- and controller-specific. Use the exact monitor/controller page and installed wrap option; do not infer a general field-travel or PTO setting. |
Safety boundary for the Deere example: even a matching manual page does not authorize abrupt steering, attention diverted from travel, or operation that conflicts with terrain, visibility, stability, braking, bystander control, or the tractor manual. Read the original page in full. If the serial range, option, controller, crop condition, or referenced next section does not match, stop and obtain the correct document or dealer instruction.
Wrong shaft selection, PTO mode, shaft speed, hitch geometry, driveline length, phasing, or guard configuration can damage machinery and seriously injure people. Keep the tractor master shield, driveline shield, and implement guards installed and serviceable. Extension's Power Take-Off Safety explains PTO-stub, driveline, separation, shielding, and entanglement hazards. OSHA's agricultural-equipment rule defines required guarding for PTO and other moving machinery (29 CFR 1928.57). The exact manuals still control the installed shield, hitch, and driveline geometry.
Ground speed starts with measured mass flow, not mph
A travel-speed target copied from another field does not describe what the baler is receiving. A dimensional estimate of incoming crop mass flow is more useful:
As-fed mass flow = measured windrow as-fed mass per unit length × measured ground distance per unit time
Dry-matter mass flow = as-fed mass flow × measured dry-matter fraction
Dimensional check: lb/ft × ft/min = lb/min, or kg/m × m/s = kg/s.
Sample enough of the windrow to represent the section being diagnosed, record the method, and state whether every mass value is as-fed or dry matter. If multiple windrows have been combined, sum them only when the mass per unit length of each contributing windrow was actually measured. Do not multiply one sample by an assumed windrow count.
This equation estimates incoming crop flow; it does not certify an acceptable machine capacity or tell an operator how fast to drive. Grisso, Cundiff, and Webb describe the mass-per-travel-distance and forward-speed relationship in their peer-reviewed agricultural-engineering analysis (Predicting Field Efficiency of Round-Baling Operations in High-Yielding Biomass Crops, 2020). Actual acceptable operation is limited by the exact manuals, tractor and baler power, pickup and feeding behavior, crop and moisture, bale dimensions/density/shape, alarms and plugs, terrain, visibility, stability, braking, and the operator's ability to remain in control. Bale count alone cannot establish crop flow or capacity.
Windrow shape, chamber fill, and weaving are machine-specific
There is no universal windrow width, height, shape, weave pattern, steering maneuver, or edge-loading rule. Fixed-chamber and variable-chamber balers do not form a bale the same way. Core-forming options can change the early cycle. Pickup width, feed rotor, cutter, auger, belt, roller, chain-and-slat, and controller options can change what an indicator means and which operator response the manual allows.
If an uneven-fill indicator or misshapen bale is observed, record the controller channel, time and cycle, crop and windrow measurements, and securely mounted evidence. Then stop and compare the observation with the exact manual or dealer. Do not improvise abrupt weaving, look away from travel to watch a device, or copy a steering pattern from another baler. Do not change density, core, hydraulic-flow, feed-reversal, or controller settings unless the exact serial- and option-specific procedure authorizes the change.
A safe evidence-first diagnostic sequence
1. Confirm documents and configuration before operating
- Record exact tractor and baler model names, both full serial numbers, and all installed or retrofitted options.
- Record the title, publication or document number, revision/date, and applicable section or page for both operator manuals.
- Confirm shaft, selected PTO mode, rated implement-input speed, controller and channel, hitch/drawbar setup, driveline and guards, hydraulic connections, and exact tires/load setup against those documents.
- If a label, shaft, mode, guard, retrofit, tire, manual revision, or configuration cannot be identified, do not create a substitute setting. Stop and contact the dealer.
2. Observe only from the seat
During permitted operation, record engine rpm, controller channel, codes and alarm time, measured ground speed, crop and windrow sample identifiers, terrain and weather, and cycle count without leaving the operator's position. A camera must be securely mounted before movement. Review video, photos, and logs only after the machine is stopped and secured.
3. Stop and secure before any inspection or adjustment
Before approaching a plug, alarm, protection event, vibration, heat, noise, damage, or adjustment point: use firm, level ground when possible; lower or secure equipment as directed by the manuals; place the transmission in park or the specified safe state; set the park brake; disengage the PTO; shut off the engine; remove the key; and wait for every part to stop.
Control stored hydraulic, spring, belt, flywheel, rotor, roller, and knife energy exactly as the manuals require. Mechanically lock or support the gate with the exact manufacturer-provided device before any permitted work near or below it. Penn State's baler-safety guidance specifically calls for PTO disengagement, engine shutdown, key removal, waiting for all moving parts to stop, relieving hydraulic pressure where required, and using hydraulic cylinder lockout devices.
Never enter the chamber; reach into the pickup, feed, driveline, roller, belt, rotor, or knife area; or work under an unsupported gate. Do not use reverse, jog, kick, hand-clearing, or another improvised workaround. If the exact clearing or service procedure is unavailable or cannot be followed, keep the machine secured and call the dealer.
Unranked evidence table by symptom or event
For every row below, record: exact tractor and baler model plus full serial numbers; both manual titles/numbers/revisions/pages; shaft, selected mode, and rated PTO; engine rpm and controller channel; measured ground speed; measured windrow as-fed and dry-matter mass per unit length with sampling method; crop, moisture/DM, and maturity; bale width × diameter, core/density setting or measurement, and shape; code/alarm, timestamp, and cycle count; terrain and weather; securely mounted photos/video/logs; and photos taken only after full shutdown, stored-energy control, and required gate support.
| Symptom or event | Event-specific evidence to add | Next step |
|---|---|---|
| Unable to hold rated PTO safely | Engine response, exact load moment, controller event, and whether the tractor and baler requirements match. | Stop; use the exact tractor and baler documents, then dealer diagnosis if the condition recurs or rated operation cannot be maintained safely. |
| Repeated plug or alarm | Exact code, alarm sequence, feed location if the manual identifies it, crop-flow sample, and post-lockout photos. | Use only the exact alarm and clearing procedure; recurring events go to the dealer. |
| Uneven bale shape | Controller fill channel, bale geometry, windrow measurements, cycle evidence, and installed chamber/feed options. | Compare with the exact architecture- and option-specific manual; do not apply a generic weave or density change. |
| Shear or clutch event | Protection-device identity, event count, installed part markings, and post-lockout condition. | Follow the exact serial-specific inspection/replacement/reset procedure or contact the dealer; do not substitute bolt grade, torque, spring, or burnishing advice. |
| PTO vibration, heat, or noise | When it begins, hitch position, turn/terrain context, shield condition, and post-lockout driveline photos. | Stop operation and have the exact hitch/driveline/guard configuration checked under the manuals or by the dealer. |
| Tractor lugging or overheating | Instrument readings, warning/code, ambient conditions, load moment, crop flow, and tractor-baler requirement match. | Stop for any warning or unsafe loss of control; use the exact tractor and baler diagnostic documents, then dealer service. |
| Pickup losses | Measured crop left behind, pickup/feed option, controller evidence, crop condition, and windrow sample. | Use the exact pickup/feed manual section or dealer; do not infer a universal speed, pickup height, or rotor setting. |
| Wheel slip or instability | Exact tires, loads, ballast, hitch, slope/terrain, wetness, steering/braking behavior, and speed at the event. | Stop; use exact tractor, baler, and tire documentation and dealer/tire-manufacturer support before resuming. |
| Braking or terrain concern | Slope, holes/drop-offs, surface condition, visibility, traffic, weather, stopping behavior, and bale-ejection area. | Stop or choose a safer route/site plan; consult both manuals and the responsible farm safety lead or dealer. |
Settings this article cannot supply
Do not use generic online instructions for clutch or shear adjustment/replacement, spring torque, bolt grade, slip-clutch burnishing, feed reversal, density or core setting, controller reset, tire pressure, ballast, drawbar or hitch position, driveline setup, or hydraulic flow. Each depends on exact serial-specific hardware, tractor configuration, installed options, loads, and manufacturer procedures. Unknown means dealer.
There is also no universal tractor or baler tire pressure. Inflation depends on exact tire size, construction/type, measured axle and implement load, ballast, field or road speed category, and the tire manufacturer's tables, subject to the tractor and baler manuals. A guessed pressure can reduce stability or damage the tire or machine.
Stop and contact the dealer when
- rated PTO cannot be maintained safely, or the required shaft, mode, speed, engine-rpm relationship, manual, or retrofit is unknown;
- a plug, shear, clutch, alarm, or code recurs;
- the driveline vibrates, heats, or makes unusual noise, or any PTO shield or guard is missing, damaged, seized, or incorrectly fitted;
- hitch, drawbar, driveline length/phasing, or PTO geometry is uncertain;
- the pickup, feed system, rotor, knife, belt, roller, chamber, gate, or protection component is damaged;
- a hydraulic or electrical fault, leak, warning, or controller problem appears;
- steering, braking, stability, traction, or tire/load compatibility is uncertain; or
- the exact operator manual, revision, serial range, or authorized procedure is unavailable.
Frequently Asked Questions
What PTO rpm should I run a round baler?
Use the rated implement-input PTO speed in the operator's manual for the exact baler model, full serial number, and installed driveline/options. Then use the exact tractor manual to select the permitted shaft and PTO mode and identify the corresponding engine-rpm indication. Do not assume that another model's PTO requirement, a tachometer mark, or the absence of an alarm proves the setup is correct.
How fast should I drive while round baling?
There is no universal mph target. Measure windrow mass per unit length and ground distance per time to estimate incoming mass flow, with as-fed and dry-matter bases clearly stated. Actual acceptable travel is bounded by both manuals, tractor and baler power, pickup/feed behavior, crop/moisture, bale geometry, alarms/plugs, terrain, visibility, stability, braking, and operator control.
Why does the tractor lug or the baler plug?
Lugging or a plug is an event to document, not proof of one generic cause. Record the exact tractor and baler serials, manuals, shaft/mode/rated PTO, engine rpm, controller channel/code/time, measured speed and crop mass flow, crop condition, bale geometry, terrain/weather, and mounted evidence. Stop for warnings or loss of control and use the exact diagnostic procedure; recurring events require the dealer.
Can I slow the PTO to save fuel or use economy PTO?
Do not lower shaft speed, lug the tractor, or select 540E or 1000E from generic advice. Economy PTO changes the engine-to-shaft relationship and may be permitted only when both exact manuals authorize that tractor, baler, driveline, mode, and load combination. This article makes no fuel, wear, density, output, or leaf-loss claim for changing PTO operation.
Should I weave to fill a round bale evenly?
There is no universal weave pattern or steering rule. Pickup, feed, chamber, core, rotor/cutter, and controller architectures differ. If uneven fill is observed from the seat or in mounted evidence, record the exact channel, cycle, windrow measurements, and bale geometry, then follow the exact manual or dealer. Never weave abruptly or divert attention to a device while moving.
How should I clear a round baler plug?
Use only the exact serial- and option-specific manual procedure. Before approaching, park on firm level ground when possible, secure equipment, set park/park brake, disengage PTO, stop the engine, remove the key, wait for all motion, control stored energy, and lock/support the gate exactly as directed. Never reach in, enter the chamber, work under an unsupported gate, or use reverse, jog, kick, or hand clearing.
What tire pressure should I use with a round baler?
No universal pressure is safe. Use the exact tire size and type, measured axle and implement loads, ballast, and field/road speed category with the tractor and baler manuals and the tire manufacturer's load/inflation/speed tables. If the tire identity, load, or table is uncertain, stop and ask the tire manufacturer or equipment dealer.
What evidence should I give the dealer?
Provide exact tractor and baler models/full serials; manual numbers/revisions/pages; shaft, mode, and rated PTO; engine rpm/controller channel; measured ground speed and windrow as-fed/DM mass per length; crop moisture/maturity; bale width, diameter, density/core/shape; code, time, and cycle; terrain/weather; mounted logs/video; and post-lockout photos. Do not create evidence by approaching a powered machine.
Sources and limits
This guide uses Penn State Extension's 2025-reviewed large-bale safety guidance, the Ag Safety and Health Community of Practice's 2025-reviewed PTO safety guidance, OSHA's agricultural guarding standard, Penn State's explanation of ROPS and seat-belt protection, and Grisso, Cundiff, and Webb's peer-reviewed mass-flow/field-efficiency analysis. Penn State explains that a ROPS and seat belt keep the operator within the protective zone during an overturn (Rollover Protection for Farm Tractor Operators).
No source in this article supplies a universal mph, engine-rpm, PTO, fuel-saving, density, tire-pressure, output, cost, or time target. Exact OEM operator manuals remain the dependency for the installed tractor, baler, options, and full serial numbers. When those manuals are gated or unavailable, obtain the correct document through the official OEM source or dealer before operating or changing the setup.

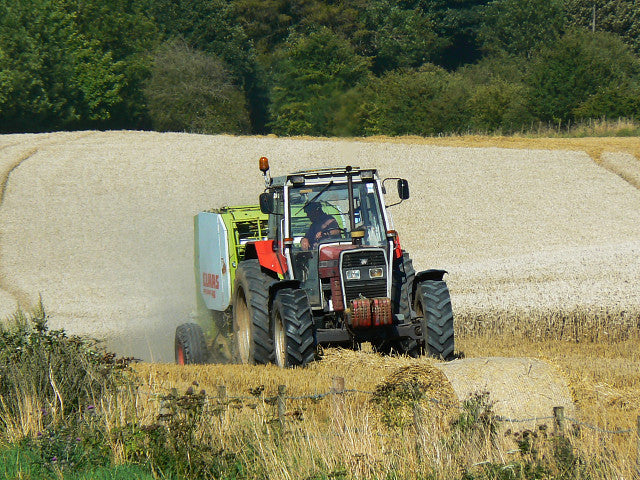

Featured photo: A field and baling operations, near Clout's Wood, Wroughton (tractor operating a CLAAS round baler, photographed from a safe distance) by Brian Robert Marshall, file 1449883, licensed under CC BY-SA 2.0, via Wikimedia Commons. Visual verified August 16, 2026: tractor operator is inside the cab; the round baler is viewed from a distant field edge; no person is near the pickup, driveline, gate, or ejection area; the image does not show baleage film.
