Quick answer: Diagnose a sickle haybine by where it plugs. Plugging at the cutterbar means the knife is dull, out of register, or the hold-down clips are loose — and standard guards in heavy crop are the usual culprit, which is why stub guards are the single most recommended upgrade on the hay forums. Plugging at the conditioner rolls means the reel is out of time with your ground speed or the roll gap is wrong. Set the roll gap to 1/64"–1/16" for alfalfa and up to about 1/8" for heavy grass, run the reel tips roughly 25–50% faster than ground speed, and keep the sickle moving freely by hand. Most haybines cut well at 4–6 mph once those four things are right.
New Holland ended Haybine production after the 2023 model year, closing a line that started in 1964. That did not make the machines disappear — it made a large installed base of them suddenly a used-equipment story, and it means the people running one are increasingly doing their own setup without a dealer down the road who still knows the machine.
This guide covers the four adjustments that account for nearly every sickle haybine complaint: guards and knife, reel timing, conditioner rolls, and skid shoes. If you are still deciding between a sickle machine and a disc machine, start with our comparison of a disc mower versus a mower conditioner instead.
First, know what you are running — and why it matters now
The Haybine is a specific piece of equipment history, not a generic term. New Holland introduced the concept in 1964 with the model 460 and ended it with the model 488, a run of roughly six decades.
"It's the last of a legacy. It's bittersweet."
— Jordan Milewski, senior brand marketing manager, New Holland Agriculture North America, quoted in HayTalk thread 100578
Key dates in that run: the model 461 in 1966 brought the chevron rubber conditioning rolls that are still the standard pattern; a 12-foot machine with 110-inch rolls arrived in 1975; and the pivot-tongue model 499 came in 1983. Disc-based Discbines launched in the 1990s and gradually took the volume.
The practical question owners now ask is the obvious one:
"For how long will replacement parts be manufactured?"
— Rrueda · HayTalk thread 100578
Sickle sections, guards, hold-down clips and wobble box components are high-volume wear parts shared across many machines and served by a deep aftermarket, so they are the least of your worries. Model-specific castings and gearboxes are the parts worth grabbing when you see them. That is an argument for setting the machine up properly rather than wearing parts out through misadjustment.
Diagnose by where it plugs
This is the single most useful troubleshooting rule for a sickle haybine, and it turns a vague "it keeps plugging" into a specific job:
"If you are plugging at the guards you probably need stub guards. If you are plugging at the rolls you probably need to raise the swath gate."
— mike10 · HayTalk thread 101362
Walk the machine and look at where the wad actually forms. A slug packed against the cutterbar is a cutting problem. A slug wrapped around or banging through the conditioner rolls is a feeding problem. A rope of hay building near the wobble box or the ends of the bar is usually a guard, divider or hold-down issue. Fix the right one and the rest of the symptoms usually go with it.
Stub guards: the most-recommended upgrade there is
Standard pointed guards were designed for lighter, thinner stands than most people cut today. In heavy, fertilized, lodged or wet crop, the long points comb the crop and start the wad. Stub guards are short and paired with a top clip, and operators describe the change in unusually strong terms:
"Unplugging mine got to be supremely frustrating until I changed to stub guards. Absolute game changer."
— Hayjosh · HayTalk thread 100578
"Get rid of the standard guards and order stub guards for it. That will help a lot with the plugging."
— FarmerCline · HayTalk thread 22874
There is a design reason underneath the anecdotes: a haybine's cutterbar was engineered around the crop volumes of its era, and modern yields overload it.
"The haybine was not designed to handle the high volume of crop that is grown today with the fertilizer that is applied. Stub guards were what kept these machines in the field."
— mike10 · HayTalk thread 22874
Two cautions. Stub guards usually require matching sections and top clips, so price the conversion as a set. And if you are converting an older bar from riveted to bolted sections, budget for new hold-down clips at the same time — reusing tired clips is a common reason a rebuilt bar still cuts badly.
Knife sharpness, register, and free movement
A sickle bar is a pair of scissors repeated across its width. It only cuts if the moving section and the fixed guard ledger pass close together, and if the section is in the right place at the end of its stroke. The clearest explanation of this comes from an operator walking a newcomer through it:
"The knife sections must be sharp and pass close to the fixed section of the guard, like a pair of scissors. The knife needs to be 'in register' — that is, at the end of each stroke the section should be centred on the guard finger."
— Coondle · HayTalk thread 22874
Three checks, in order:
- Register. With the machine off and locked out, turn the drive by hand to the end of the stroke and look down the bar. Each section should sit centred on its guard. If the whole knife is biased to one side, the fix is at the wobble box connection or the bar mounting, not at individual guards.
- Clearance and hold-downs. Sections should run tight against the ledger with no daylight and no binding. Loose or worn hold-down clips let the section lift over the crop instead of shearing it. One operator replaced six worn guards and tightened the hold-down clips and reported: "WOW what a difference" (blainalbin, HayTalk).
- Free movement. The sickle should slide by hand without a fight. Binding destroys drive components.
"When you have the sickle out of the machine you should be able to move it easily by hand. If it binds anywhere it will stress the belt and the wobble box."
Carry a complete spare sickle, sharpened, in the truck. Swapping bars in the field takes minutes; sharpening one on the tailgate does not.
Reel speed and position: the adjustment nobody checks
The reel is a timing device, not just a pusher. Its tip speed needs to be modestly faster than your ground speed — roughly 25% to 50% faster is the standard working range — so it delivers the crop rearward at the moment it is cut. Get it wrong in either direction and you get two very different failures:
"The reel speed should be such that it does not pull the cut crop back too fast (which pulls the crop out by the roots and clumps it) nor too slow, which allows a bunch of cut crop to build up which then goes to the rolls and bangs them."
— Coondle · HayTalk thread 22874
That "bangs the rolls" symptom is worth calling out, because people go looking for a roll problem when the actual cause is a reel that is too slow for the ground speed and is feeding the machine in slugs.
Reel position matters as much as speed. Moving the reel forward and down gets it into the crop earlier, which helps in short or thin stands; moving it back and up avoids over-handling in tall, heavy crop. In down or lodged hay, speed the reel up so the tines lift the crop into the knife instead of riding over it:
"Slide the reel forward and lower it. Speed the reel up in down hay."
— mlappin · HayTalk thread 15101
Also check the reel drive: a slipping reel belt or a loose reel drive chain produces intermittent bunching that looks exactly like a feeding problem but disappears when the belt is tightened.
Conditioner rolls: gap, tension, and worn edges
The rolls exist to crack stems so they dry at the same rate as leaves, which is the whole point of conditioning. Set the gap by crop:
- Alfalfa and other legumes: about 1/64" to 1/16". Tight, because you want stems cracked without stripping leaf.
- Heavy grass: up to roughly 1/8". Grass stems are coarser and more forgiving, and too tight a gap in bulky grass just packs the rolls.
Always confirm against your own operator manual, and set the gap with a feeler across the full roll width, not at one end.
The counterintuitive part is that opening the gap is usually the wrong response to banging rolls:
"Setting the crimper gap wider makes it worse. You want them close, but the pressure released."
— stack em up · HayTalk thread 22874
Gap and pressure are separate adjustments. Keep the rolls close so they grab and meter the crop evenly, and back the spring pressure off so a slug can pass without hammering the machine. Cranking the pressure up to stop banging is what breaks roll drive components.
Two more roll failures worth ruling out:
- Rounded chevron edges. Rubber roll bars wear round with age, and round bars stop gripping. The machine then feeds unevenly no matter how you set the gap. This is a wear item, not an adjustment.
- Rolls out of time. If the chevrons on the upper and lower rolls no longer mesh, they beat against each other instead of interlocking. Check timing marks before chasing anything else.
If conditioning is not doing what you expect on leafy crop, our guide to hay leaf shatter and leaf loss covers the dry-down side of the same problem, and how to make dry hay faster covers swath width and timing.
Skid shoes and cutting height
Cutting too low is not always an operator error — it is often worn skid shoes. The shoes sit under the cutterbar, and they flatten with use:
"The skid shoes are located under the cutterbar and are held on with one 5/8" bolt each. Over time the shoes flatten out and lower the cutting height. Press them back to the correct curvature."
— mike10 · HayTalk thread 95338
Worn-flat shoes mean the bar rides lower and the guards start eating dirt, which dulls sections fast and adds ash to your hay. New shoes have a pronounced upward curve at the front. Different models handle the adjustment differently — some use bolt positions in a bracket, some (like the 492) use a sliding rod with spring clips, and some let the header pivot forward off the shoes for a closer cut. A pin moved in front of the slot rather than behind it changes the angle of the cutterbar, which changes effective cutting height as much as the shoes do.
Manuals are notoriously unhelpful here — one owner could not tell from the manual which hole was "high" and which was "low," and found the bolt heads were captured inside the bracket with only a couple of inches of ratchet swing. If yours is like that, set it once with the machine on level ground and a tape measure at the ledger, and mark the setting with paint.
Be careful with stroke-control spacers. They will limit how far the header drops, but they also reduce flotation, and a header that cannot follow ground contour will scalp high spots and miss low ones.
Ground speed and realistic expectations
A properly set haybine is not a slow machine. Operators consistently report 5 to 6 mph in normal conditions:
"About 5 mph is where I run mine."
— FarmerCline · HayTalk thread 22874
One owner running a 499 with stub guards reported cutting at 6 mph and never plugging. If you are creeping along at 3 mph and still plugging, the answer is not less speed — it is one of the four adjustments above. Speed actually helps a sickle bar in some conditions, because a faster feed rate carries the crop through the guards instead of letting it settle and comb.
Keep in mind that on wide double-drive machines, each wobble box drives only about six feet of knife, which is part of why the wide models handle heavy crop better than a single-drive bar of similar width.
Routine maintenance that prevents most of this
Haybine pre-season and in-season checklist
- Grease the wobble box and driveline joints on the manual's schedule — this is the most commonly repeated single piece of advice for these machines.
- Check gearbox and wobble box oil levels before first cutting.
- Inspect every guard for bent points and cracked ledgers; replace bad ones as a set, not one at a time.
- Check and tighten hold-down clips so sections cannot lift.
- Verify knife register at the end of the stroke.
- Confirm the sickle moves freely by hand.
- Set roll gap for the crop; set roll pressure only firm enough to condition.
- Check roll timing marks and inspect chevron edges for rounding.
- Check reel drive belt tension and reel drive chain.
- Check skid shoe curvature and set cutting height on level ground.
- Carry a sharpened spare sickle, spare sections, guards and clips.
- At season end, coat the cutterbar and knives with a rust protectant — see our end-of-season storage checklist.
When to stop adjusting and buy a discbine
A haybine that is set up correctly will handle most hay. But there are honest limits. If you are consistently cutting heavy, fertilized, lodged or wet-stemmed crop, or if you need more acres per hour than a 9- to 12-foot sickle machine can deliver, a disc machine is a different capability rather than a better-adjusted version of the same one. Disc mowers cut in tangled and down crop where a sickle bar combs and plugs, and they run at higher ground speeds.
The counter-argument is cost: sickle machines are cheaper to buy, cheaper to maintain, take less horsepower, and leave a wider swath for a given width. If you are weighing that trade, our disc mower vs mower conditioner comparison lays out the numbers, and disc mower troubleshooting covers what you take on when you switch. For the machine after the mower, see our rake selection guide.
Frequently asked questions
Why does my haybine keep plugging?
Look at where the plug forms. A wad packed at the cutterbar points to dull sections, knife out of register, worn hold-down clips, or standard guards overwhelmed by heavy crop — stub guards fix that last one. A wad at the conditioner rolls points to reel speed mismatched to ground speed, or a swath gate set too low.
What should the conditioner roll gap be on a haybine?
Roughly 1/64 inch to 1/16 inch for alfalfa and other legumes, and up to about 1/8 inch for heavy grass. Set it with a feeler across the full roll width, not just at one end, and confirm against your operator manual. Gap and spring pressure are separate adjustments: keep the rolls close but back the pressure off so slugs can pass.
Are stub guards worth it on a haybine?
For most operators cutting modern fertilized stands, yes — it is the most frequently recommended haybine upgrade on the hay forums, with owners describing it as the difference between constant unplugging and cutting normally. Standard pointed guards comb heavy crop and start the wad. Budget for matching sections and top clips, since the conversion is a set rather than a single part.
How fast should the reel turn on a haybine?
Reel tip speed should be about 25% to 50% faster than ground speed. Too fast and it pulls crop out by the roots and clumps it; too slow and cut crop builds into a bunch that slams into the conditioner rolls. In down or lodged hay, speed the reel up and move it forward and down so the tines lift the crop into the knife.
Why is my haybine cutting too low?
Usually worn skid shoes. The shoes bolt under the cutterbar with a single bolt each and flatten with use, which drops the bar and lets guards pick up dirt. New shoes have a pronounced upward curve at the front; flattened ones can often be pressed back to shape. Cutterbar angle, set by the pin position in its slot, also changes effective height.
Can you still get parts for a New Holland Haybine?
Production ended after the 2023 model year with the 488, closing a line that began in 1964. Wear parts — sickle sections, guards, hold-down clips, wobble box components — are shared widely and well served by the aftermarket, so those remain easy to source. Model-specific castings and gearbox internals are the items worth buying when you find them.
This guide is maintained by the XES Netting team — a bale net-wrap manufacturer. Every farmer quote is verbatim with a thread link so you can read the original discussion. Settings vary by make, model and crop: always confirm against your operator manual, and shut the machine down, lock it out, and wear cut-resistant gloves before working on a cutterbar. Sickle sections are extremely sharp even when dull enough to stop cutting hay.

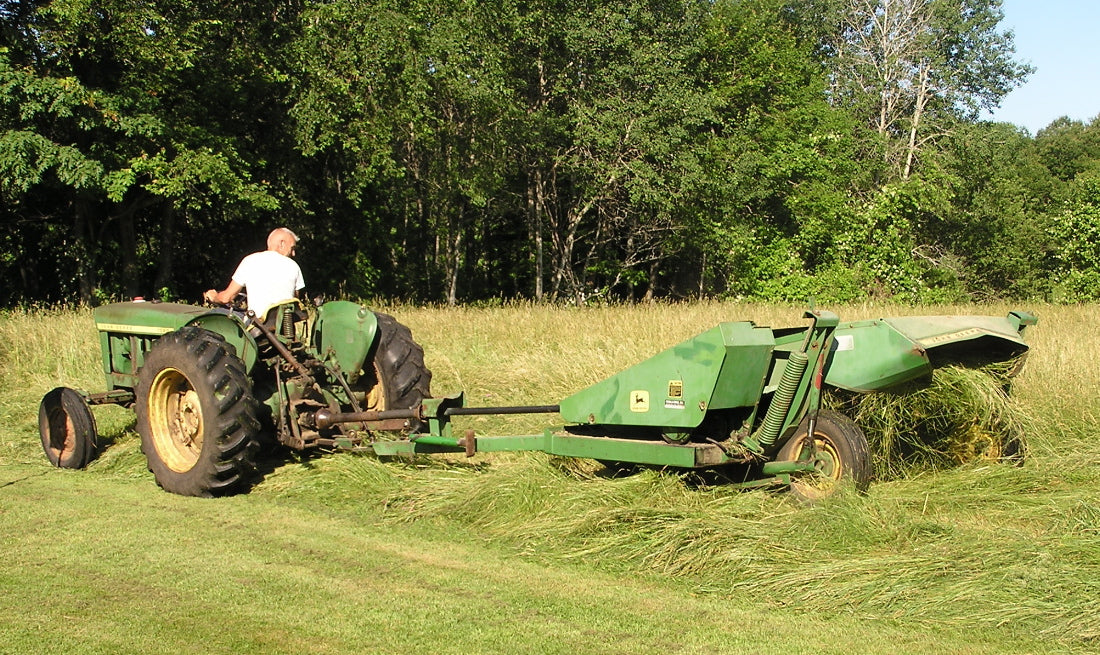

Featured photo: John Deere 1207 mower-conditioner by liz west (Muffet), licensed under CC BY 2.0, via Wikimedia Commons.
