How to Keep Cattle Water From Freezing in Winter

By the XES Netting team — bale net-wrap manufacturer · Updated October 10, 2026 · ~21 min read

Knowing how to keep cattle water from freezing matters as much as the hay pile in a northern winter. Cattle that cannot drink eat less hay, and a frozen waterer on a windy subzero morning is one of the most common winter complaints on AgTalk’s Stock Talk forum. Producers there have tried everything: ground-heat waterers, heated fountains, tank heaters, propane burners, overflows, tire tanks and the ax. Their experience is consistent. The brand matters less than how the waterer is installed, how many cattle drink from it and whether the wind can reach the water.

This guide is for beef producers watering cows, bred heifers, weaned calves or feeders through a freezing winter, on pasture, stalks, drylots or yards. It is not an electrical or plumbing design: have a licensed electrician wire any heated waterer, and follow your local frost-depth, backflow and permit rules. XES manufactures bale net wrap, and the cattle eating your round bales all winter need open water beside them. We read 152 archived AgTalk discussions about winter water (1,759 posts, all from 2022–2026) and checked them against Extension and agency guidance from North Dakota State, the University of Kentucky, the USDA Natural Resources Conservation Service, Ontario’s agriculture ministry, the University of Florida and the U.S. Energy Information Administration.

How much water cattle drink in winter

Cattle drink less in cold weather, but they never stop needing water. North Dakota State University’s Livestock Water Requirements (AS1763, revised March 2021, by Miranda Meehan, Gerald Stokka and Michelle Mostrom) gives these daily figures, adapted from the 2016 edition of Nutrient Requirements of Beef Cattle:

Source: NDSU AS1763, Table 1, as published. The table has no rows below 40°F. By our arithmetic, 50 dry pregnant cows need roughly 300 to 335 gallons a day at 40°F, and 50 nursing 900-lb cows about 570.

The University of Kentucky’s Master Grazer program puts it in one example: a lactating beef cow that drinks 16 gallons on a 90°F summer day still drinks about 11 gallons on a 40°F day in December (Winter Watering of Livestock). The same page explains why water decides winter hay use. Cattle eat more in the cold to stay warm, and “Water intake affects animal DMI and if it is limited due to a frozen, inaccessible water source, animals will not be able compensate for the colder environmental temperatures.” Very cold water also cuts intake and costs body heat. NDSU is blunter: “Limiting water intake reduces feed consumption and animal performance.”

Timing matters as much as volume. An eastern Kansas producer wrote, “My cattle go to the waterer after eating feed as it seems to trigger thirst,” and a central Saskatchewan rancher pointed out that cattle fed with a feed wagon may all show up to drink within an hour, while grazing cattle trickle in. A waterer that keeps up with a trickle can fall behind a crowd.

"As I have tried larger herds, it’s become more evident that some of those cattle that are waiting just don’t get enough. When we upsize the water area, we have less problems with cattle falling back from the group on performance and health. My observation has been that while they CAN take turns, not all of them will."

— J HL, Nebraska · AgTalk thread 1188982

Producers’ rules of thumb for drinking space vary. The same Nebraska producer likes “about 5-10% of the cattle able to drink at once,” and a western Iowa producer uses about an inch of water space a head. The USDA Natural Resources Conservation Service’s standard for watering facilities says to design access for “the number of animals that will be drinking at the same time.”

Winter water options compared

Every system on AgTalk works for someone and has failed for someone else. This table sums up what producers reported:

Producer reports from AgTalk Stock Talk, 2022–2026. Costs are what individual producers posted, not quotes.

Energy-free waterers: what keeps them open

Energy-free waterers, such as Cobett, Mirafount and the energy-free models of other makers, sit over a buried tube that lets ground heat rise to the valve and bowl. The University of Kentucky notes that these systems “do a good job of keeping pipes and floats from freezing” but are not ice-free: on very cold days there is often a thin layer of ice that must be removed. The most-cited explanation on AgTalk came from a producer who has run them for years:

"I have come to believe energy-free waterers depend on ground heat from 2 sources. 1. The heat well under the waterer 2. Fresh (ground heated) water brought into the waterer by animal drinking activity. … A large(r) number of cows drinking through the cold period will keep it working ice free."

— Doug61, Eastern NE KS · AgTalk thread 1224377

That makes head count the first rule. About 20 posts in a dozen threads tied freezing to too few cattle. Minimums producers cited were “10 hd like they recommend” for lidded units, “at least 5” on a Mirafount-type unit in north central Kansas, and, from Russ In Idaho, whose homemade ground-heat troughs follow the Cobett idea, “30-40 head is prime in -20 weather.” A producer with five Cobetts saw the difference directly: one with 14 calves of 300 lb might need the ice broken to free the float below zero, while one with 90 fed cattle “didn’t have ice on it even at 18 below.”

"We put a heat lamp under ours with 1 cow, 4 calves and 3 horses drinking. It does not freeze but will have 5 inches of ice on it when is -25 with the wind blowing. If there are 40 cows using it, it will work fine with no heat lamp."

— RJ4630, NE Montana · AgTalk thread 1091923

Wind and water level are the other two levers. Wind was the most-named cause of ice on every kind of waterer; a Minnesota producer wrote of his heated ball units, “It takes an overnight wind to freeze them up.” Lowering the water so wind cannot sweep the surface was the most-repeated fix, about 36 posts in 21 threads.

"Float needs to be much lower. The water surface needs to be protected from the wind. Windchill will freeze them over pretty quick. If you have the water line 5 inches below the top or more, they do a lot better."

— paul the original, southern MN · AgTalk thread 1186253

On ball-type units the same idea applies to the floats. Another Minnesota producer finally lowered the water level on a Mirafount-type unit and, during a week near −30°F, “we never had to kick the balls loose.” The first Minnesota producer took half the floats out of his heated units and set the rest at least half an inch below the lid. Cattle need a day or two to learn lids and balls. A west central Illinois producer ties the lid up with wire on day one, then on day two takes the wire off and flips the lid down “so they learn to flip it with their nose.”

Expect to break some ice. Producers called that the honest trade for no power bill:

"I have multiple Cobetts and like them for what I do. Buried correctly, float set correctly, and giving it wind protection will be the difference between its success and failure. I have had about 80 head on mine this winter and had to break ice maybe 8-10 total times, mostly related to terribly cold wind chills."

— RCD, West Central Iowa · AgTalk thread 1103569

"I tell guys there is no such a thing as energy free waterers. It’s either electric energy or your energy. … Cobett you have to check at least once a day and break ice. But the Cobett are the best in energy free because when they freeze they aren’t a 50 gal block of ice."

— bordercolliie1, Ecsd · AgTalk thread 1144789

A northwest Missouri producer summed up the comparison that sells many of them: “I'd much rather spend 30 seconds breaking ice on a Cobett with a hatchet than spend 5 minutes walking out on a pond and cutting a hole with an ax.” For small groups, frost-free drinking posts and nose pumps are other no-power options; a southwest Ohio producer liked that “I did not have to run power along with the water line to the drinker,” though cattle need training to use them.

Cost runs both ways. A north central Missouri producer paid “about 2000$ each rock, install included” for energy-free units on city water in early 2026. Ag Energy NY, a New York farm energy-efficiency program, lists potential energy savings of 40% to 100% for energy-free livestock waterers, a typical simple payback of four to 15 years, and notes that replacing existing heated units over 250 watts has a reasonable payback.

Heated waterers and tank heaters: costs and safety

Producers who choose electric heat are paying for reliability. “If power is already there, I just don't understand putting something in that you have to break ice every day,” a Minnesota producer wrote. A central Nebraska producer has three stainless-pan heated units about 12 years old and wrote, “I don't think they have froze up once.”

"When we are battling inclement conditions, energy free (or low energy models) have a tough time providing the reliability that electric models are capable of. If I have to pay an extra $10 or $15 per month in the dead of winter for a full electric model to keep it reliably thawed, I am OK with that."

— RCD, West Central Iowa · AgTalk thread 1082314

What heated water costs to run

When thermostats cycle, the bill is small. An Iowa producer with a 175-gallon heated tank, three-quarters covered, said it “costs me at most $50.00 a month to run”:

"I have a separate meter for my cow shed, I think the highest bill I've had was $30-40 in electricity, that powers my electric fencer, a yard light, my heated water and occasionally plug in a skid loader. … What is your water temp? Have you confirmed your thermostats are cycling?"

— mafrif, NC Iowa · AgTalk thread 1141493

That reply went to a producer whose bill ran over $300 a month with two waterers. A Manitoba rancher did the math: even two heaters totaling 2 kW running around the clock would cost about $200 a month at 14 cents, so “something's not quite right.” A big bill usually means a stuck thermostat, a short or another load on the meter. Work out your own with this formula and your rate:

XES calculation. The U.S. Energy Information Administration’s Electric Power Monthly (Table 5.6.A) puts the July 2026 average residential price at 15.89 cents per kWh in the West North Central states and 18.31 cents nationally. Hours on depend on cold, wind, cover and thermostat setting; a Wisconsin producer reported his newer heated unit uses about 120 watts and “barely ever runs.”

Keep cords away from calves and check for stray voltage

"I used a 2 inch pvc pipe with a 45 degree y on in. Fed the cable up thru the pipe and out the y, used a regular sinking heater and secured the assembly to the 100 gallon Rubbermaid tank. Tank was placed next to the fence. This left the exposed power cable outside the reach of Holstein electricians."

— BOGTROTTER, Kingston, Mi · AgTalk thread 1184474

Drain-plug heaters keep the cord outside the tank, and producers preferred sinking or caged heaters to floaters that cattle pull out. Never let a heated tank run dry. If cattle approach a waterer and back off, suspect stray voltage. The University of Florida’s fact sheet Stray Voltages in Dairies (AE019) notes that cows react to voltages people cannot feel, that animals exposed through water cups “will hesitate to drink and may lap the water,” and that 0.5 volt or more between neutral and earth is cause for concern; all metal a cow can touch should be bonded together. On AgTalk, one producer whose calves were barely drinking measured 0.3 volt AC between the tank water and a fence ground rod with the heater on, and none with it off. “Cattle are very sensitive to voltage,” a Colorado rancher replied; “try unplugging it for a while and see if they drink more.” The calves drank well with the heater unplugged, and after he bonded the tank with a copper wire he found no voltage difference between the tank and the ground rod.

Run heated waterers on a dedicated, properly grounded and GFCI-protected circuit installed by an electrician, and size the wire for the distance. A North Dakota producer’s new heated waterer sat without power for about two hours at −25°F after a GFI trip and recovered once he fixed it; another producer whose waterer is “at the long end of a 12 gauge wire” chops ice once it gets down to about 10°F. The usual failures are parts, not the concept: “Heating elements, thermostats and especially heat tape,” as a Wisconsin producer listed them. An Iowa producer fought freeze-ups for two years until he replaced an element that “was still working but was weak.” Skip light bulbs for heat; a Wisconsin producer called a bulb “a terrible way to keep something from freezing, good way to start a fire,” and an Illinois producer found ceramic screw-in heaters lasted more than a year against about 30 days for bulbs.

Propane and bubblers fill gaps. An Iowa producer runs a propane heater on a 1,500-gallon concrete tank covered with insulation board and plywood and uses “about 180 gal of propane for the whole winter”; in wind, a Nebraska producer noted, “it will blow out” unless shielded. Aquarium bubblers kept a hole open “down to right at zero” for one Iowa producer, but a Manitoba rancher warned that a stalled bubbler can leave “a solid block of ice” and preferred a slow overflow with “a really good lid.”

Overflows, tire tanks and ponds

Moving water freezes slowly. The University of Kentucky describes a continuous-flow valve that keeps a tank open, with an overflow pipe that carries water away from the tank so the area does not turn to mud. Where water is free, from a spring, a pond, tile or gravity, producers use the same idea:

"Been around concrete waterers with weep or pee valves for probably 30 to 40 years now. I don't think I've ever had one clog up. … Now I think they are really good if they are in the right location - sunlight and out of the wind - and plenty of dirt on them."

— cows-n-crops, NEMO · AgTalk thread 1186253

“A stream about the size of a pencil running 24/7 is enough to keep a line from freezing,” an Iowa producer wrote, and a Missouri producer’s advice for precast concrete tanks was to “open up the pisser a little don't take much. Run the overflow 75' away.” On metered rural or city water the math changes: “Would you want to run a pisser on rural water?” one Iowan asked. Thermostatic bleeder valves that only run in cold weather drew mixed reports; one producer watering 180 cows at a tire tank had used one for three years, while an Arkansas producer gave up on the ones he tried: when it got very cold, “they just run full stream and flooded everything.” NRCS’s Watering Facility standard (Code 614) calls for a protected, stable overflow outlet and for backflow prevention or an air gap on waterers connected to wells or domestic or municipal water. Check your water supplier’s rules before you plumb any waterer to it.

Tire tanks made from mining or earthmover tires are the big-herd answer. A Manitoba producer matches tire to herd: 12-foot tires take “about 400 cows,” 8-foot tires about 250. They still need enough cattle turning the water; one producer’s tire tank grew “about 1.5” thick” of ice at −20°F with a −61 wind chill, and “If it doesn't get below 10 it wont freeze.”

"Here is our tire tank setup that we really like. The top of it is covered with plywood. We come up the center with a 18" pipe from 6ft deep and then concrete around the rest of the bottom bead. This one faces to the north all the other ones we install face south to get sun."

— peterbilt379 · AgTalk thread 1092126

Chopping pond ice is the system of last resort. Producers reported cows slipping, falling through and breaking hips, and Alberta Cowman wrote that “all it takes is one wreck and that will pay for a gravity or pump setup quick.”

"My experience with pond ice is cow goes on it to drink, slipps, falls and breaks a hip. Our solution move cows home where there is a mirafount waterer. Alot safer for cows and my blood pressure."

— BeeBe Draw Kid, La Salle, Colorado · AgTalk thread 1186253

Cost-share can help with permanent systems. NRCS programs such as EQIP fund watering facilities and livestock pipelines under its practice standards; a producer in Big Sky Country recalled that NRCS wanted tanks “big enough for 2 days drinking” and that “they cost shared 80%” on his 1988 project. Rates and rules vary by state and year, so ask your local NRCS office before you buy.

Installing a winter waterer: depth, pad and drainage

Producers agreed that installation decides whether a waterer works. NRCS’s Livestock Pipeline standard (Code 516) requires burying pipe “at sufficient depth below the ground surface to provide protection from hazards imposed by traffic loads, farming operations, freezing temperatures, or soil cracking,” and the watering facility standard calls for a firm, level foundation, protection of the heavily used ground around the trough, and valves and controls protected from damage by livestock, wildlife, freezing and ice.

How deep is deep enough depends on where you farm. AgTalk answers ran from 12 inches of cover in Alabama to about 5 feet in northern Illinois, 6 feet in northeastern South Dakota, 7 feet minimum in Manitoba yards and “All water lines around here are 10 feet deep, and even then they freeze now and then” in central Alberta. Use your county’s frost depth and your waterer maker’s instructions, not a neighbor’s number.

"I check it every morning when it's cold, and keep a rubber mallet in the fence nearby. When it gets close to zero at night, I usually have to break the ice and throw out the chunks. Keep it no higher than 22" above the surface and bury the water line 5' deep or more depending on location."

— redfarm, N. IL · AgTalk thread 1188461

For energy-free units, the heat tube has to stay dry. Producers ran 18- to 24-inch culverts 5 to 8 feet down, insulated the top, and put drain tile under wet sites.

"They work best in an area with a low water table. Up tight below a leaking pond damn is tough on them because their heat well will have water in it. If that heat well as water halfway up instead of a full column of air, they won't perform as intended."

— farmernelson88, South Central Iowa · AgTalk thread 1221918

When it freezes anyway: a cold-snap plan

Every system freezes eventually. “I haven’t found a water source that doesn’t require checking!” a producer wrote, and the daily check was the norm in nearly 50 posts. Keep a mallet or a short-handled shovel at each waterer, and a plan for the morning one does not open.

"I have one mirafount in a smaller pen that I only keep a few head on it. At -10 it will freeze but just pour 5 gallons of hot water in the reservoir and in an hour it is running OR take the top off and pour warm water over the valve and in a few minutes it is running."

— ICC, southeastern corner of Idaho · AgTalk thread 1145685

• Keep the valve working. One Wisconsin farm pumps a little water out of each unit every morning, “Just enough to get the water level low enough that the valve opens and it fills,” which keeps the valve from freezing.
• Thaw with hot water, carefully. Producers pour 4 to 10 gallons of hot water down the heat well or over the valve. If you build a steamer, give it a pressure relief; one homemade unit drew the reply “you have built a bomb!!”
• Have a backup tank. A stock tank with a heater, filled from a hydrant, carries cattle while a line thaws. A Wisconsin farm hauled water with a skid loader after its supply line froze in 2014, and “it wasn’t until Memorial Day until the line thawed.”
• Do not count on snow. Ontario’s agriculture ministry (Replacing Water with Clean Snow) says dry, pregnant beef cows in good condition can use soft, clean snow as their only water after a three- to five-day adjustment, with daily checks and a backup plan. That guidance covers dry, pregnant cows, not lactating cows or calves. Cattle eating snow on stalks may skip the waterer for “20 hours or more,” which lets a remote unit freeze. Our stockpiling guide covers snow on winter pasture.
• Train cattle to new water early. NDSU warns that new animals may refuse unfamiliar water, so watch intake. Producers tie lids up, take balls out for a day or two, let an experienced cow show the way and check for stray voltage. One producer’s tip: “Maybe some nice hay beside the waterer as well. They will find it.”

Water and the hay yard

Round bales and winter water work together on most farms. On AgTalk, a bale or two was one of the most common windbreaks at a waterer.

"Mirafount (corrected name) would require about a yard of concrete to make a pad for it and a drain valve to turn it off if not used. If you are expecting zero or below with wind, set a couple of old bales upwind from it to slow down the wind chill factor."

— Kelly, NC KS · AgTalk thread 1103569

A North Dakota producer who made a windbreak of large round straw bales said it “made a big difference,” and one dealer’s neighbor sets round plastic tanks “inside of bale rings.” To protect an idle waterer, producers bury it under a torn-apart round bale, the “haystack method”; a southern Wisconsin producer would drain it, then “cut the net off a stalk bale or old hay bale, shake it up and make a big pile on top of the waterer,” and push the pile into the pen as bedding when the waterer goes back into service. Take every strand of net wrap off those bales first (our guide to removing net wrap safely shows how) so it never ends up in the bedding pack, and keep heat tape out of the pile; a dealer warned that “mice start chewing and it could get a little too warm.”

Plan the hay and the water together:

• Feed where cattle can drink. Cattle drink after they eat, so a feeding site far from water sends the whole herd to the waterer at once. A Kentucky producer with no pressurized water uses a ditch: “Hay on one side, feed em on the other.”
• Do not feed right on top of the waterer. A Manitoba rancher’s drinking bowl “can plug with junk if you feed too close to it,” and a Big Sky Country rancher’s cows dropped hay into a standpipe overflow until it plugged.
• Set out days of hay only when the water is sure. “If you wanted to set enough hay out to skip seeing a group for 2 or 3 days you just can't do that if the cattle are drinking from a cobbett,” a northeast Missouri producer wrote.
• Keep the mud away from both. Overflow and hoof traffic turn the ground around waterers and bale feeders to mud; our cattle feeding pad guide covers surfaces, and reducing round bale feeding waste covers feeder placement.

If you are planning a winter of bale grazing, see the water section of our bale grazing guide; for confined herds, the drylot cow-calf guide sizes pens and bunks. Weaning in December or January adds another group to water; our weaning calves guide covers water placement for new calves. And because the bales those cattle eat must come out of the stack whole, count wrap for the winter with our how much hay does a cow eat worksheet.

Frequently asked questions

How do you keep cattle water from freezing without electricity?

Use an energy-free waterer over a deep, dry heat tube, with enough cattle drinking to keep fresh water moving, the water level set low and the unit sheltered from wind. Where water is free, a small constant overflow or a tire tank with a heat pipe works. Expect to break thin ice on the coldest mornings.

How much water does a cow drink in winter?

At 40°F, NDSU’s table lists about 6 to 7 gallons a day for pregnant beef cows, 11.4 gallons for a 900-lb lactating cow and 4 to 5.3 gallons for 400- to 600-lb calves. Intake rises with temperature; a lactating cow drinks about 16 gallons on a 90°F day.

How many cows does it take to keep an energy-free waterer open?

Producers on AgTalk cited about 10 head for lidded units, at least 5 on some ball-type units and 30 to 40 head on a Cobett-style trough at −20°F. Too few cattle is the most common reason these waterers freeze. Check the maker’s minimum, keep the float low and block the wind.

How much does a stock tank heater cost to run?

Multiply watts by hours on and divide by 1,000 for daily kWh. A 1,500-watt heater running half the time uses 18 kWh a day, about $86 a month at 16 cents. Producers with thermostats and covered tanks reported $10 to $50 a month; a much bigger bill usually means a fault.

Why won’t my cattle drink from a new waterer?

Cattle can refuse unfamiliar water, and they need a day or two to learn lids and balls, so tie lids open and let an experienced cow show them. If cattle approach and back away from a heated waterer, have an electrician check for stray voltage.

The bottom line on keeping cattle water from freezing

The best answer to how to keep cattle water from freezing is the one that fits your herd size, your power and your frost line: an energy-free unit with enough cattle and a windbreak, a heated waterer on a sound circuit, or a steady overflow where water is free. Install it below frost with a dry heat well and a good pad, check it every morning, and keep a hot-water bucket and a backup tank for the week it fails. Water and hay go together: cattle that drink well eat well. Plan the bales beside the water too: round bales finished with XES bale net wrap hold their shape through a winter outside, and they can do double duty as a windbreak for the waterer until the herd needs them.

Research note: We read 152 archived AgTalk discussions about winter water and waterers (1,759 posts, 2022–2026), set aside dealer pitches and brand attacks, then checked the linked Extension and agency guidance on October 9 and 10, 2026. Brand names appear only where producers reported their own experience; prices and bills are what individual producers posted at the time. Post counts include questions and replies, not counts of farms. Cost tables are XES calculations from the cited rates and stated assumptions. XES sells bale net wrap and does not endorse any waterer, heater or valve brand.

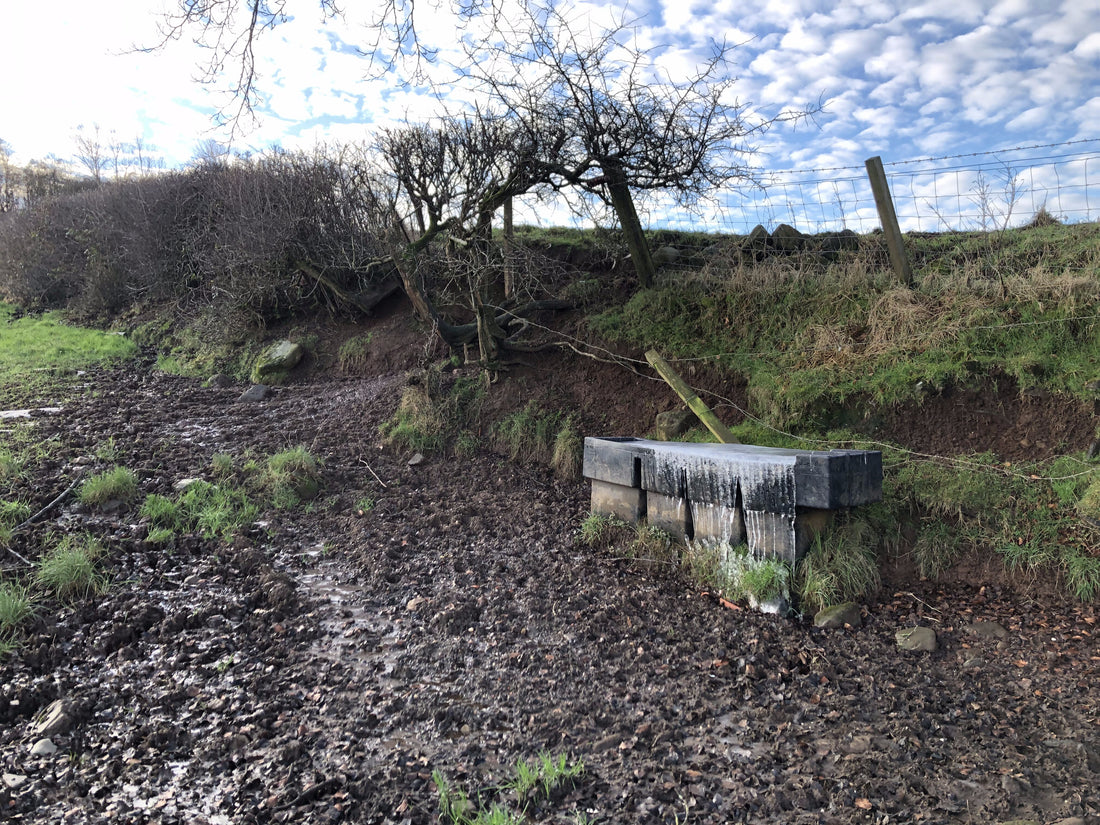

Featured photograph: Frozen trough, Richard Webb, licensed under CC BY-SA 2.0, via Wikimedia Commons (Geograph Britain and Ireland). An overflowing field trough sheathed in ice beside a churned, muddy approach, New Kilpatrick, Scotland, January 2026. Image unchanged apart from display resizing.
