Disclosure and limits: XES Netting manufactures bale net wrap. We are not a baler OEM, dealer, service technician, or safety authority. This guide does not replace the operator or service manual for your exact machine and does not guarantee a diagnosis or repair outcome.
Quick answer: Net wrapping around a baler roller or spiral is an event, not a universal diagnosis. Stop and secure the machine, identify the exact component and moment the wrap begins, then use the operator or service manual for the exact model, full serial number, controller or software, and installed retrofit. Unknown procedure or damage means dealer service.
Safety boundary before any diagnosis
The exact model, full serial number, controller or software version, installed options or retrofits, and the matching operator and service manuals govern every action. A manual for the same brand or model family is not a substitute. Serial breaks and retrofits can change component names, routing, guards, settings, stored-energy controls, and service steps.
For any powered observation, remain in the operator seat. Keep every bystander outside the pickup, feed, wrap, gate, ejection, and bale-roll hazard zones. Do not handle a phone, camera, or other device while operating.
Before anyone approaches the baler for threading, clearing, inspection, photography, or adjustment: park on firm, level ground; lower or secure attachments exactly as the manual requires; engage the park brake; disengage the PTO; shut off the engine; remove the key; wait for all motion to stop; and control stored hydraulic, spring, belt, flywheel, knife, and other mechanical energy under the exact manual procedure. If the gate is raised, mechanically lock or support it with the exact device provided for that machine.
Never enter the bale chamber. Never work beneath an unsupported gate. Never reach into the pickup, feed, wrap, roller, belt, or knife areas. Do not bypass a guard, sensor, or interlock, and do not operate with a missing or damaged guard. Use only the PPE specified by the exact manual and service procedure.
Source basis: John Deere's model-specific 460M and 560M manual separately requires safe operation, power isolation, pressure relief, raised-element support, and the provided gate lock; Penn State Extension gives the same general stop-and-secure sequence for baler maintenance. See Operate Baler Safely, Practice Safe Maintenance, Lock the Gate, and Safely Making and Handling Large Hay Bales. Accessed August 16, 2026.
What this guide covers - and what it does not
This page covers net that is observed winding around a manual-identified roller, roll, spiral, or auger during the wrap event, or net found there after the baler has been stopped and secured. It helps document the event for the exact manual and dealer. It does not prescribe a universal repair.
Keep these separate because they have different evidence and manual sections:
- Net not starting or feeding: net never reaches the intended application path.
- Net wrapping a roller or spiral: net winds onto a component instead of continuing through the intended path.
- Net tearing: net separates before, during, or after application.
- Net not cutting, leaving a long tail, or rewrapping: the cut or retraction event is incomplete.
- Edge or over-edge coverage: net reaches the bale but does not track to the intended width.
- Finished-bale surface damage: net is on the bale and is later cut, displaced, or abraded.
- Post-ejection handling: damage or removal occurs after the bale leaves the chamber.
If the net never enters the application path, diagnose the no-feed event under that manual section. If the event begins at cut, gate opening, ejection, or on the finished bale, document that later stage instead of treating it as roller wrapping.
Start with the exact architecture and event timing
"Feed roller" is not a universal component name. Depending on the exact machine and configuration, a manual may identify a feed roll, spreader roll, rubber roll, steel roll, starter roll, spiral or auger, duckbill or feed pan, belt, actuator, brake, knife or cut system, or proprietary edge or over-edge hardware. Use a name only when the exact manual or parts catalog identifies it.
Do not transfer a setting, routing path, spacer, brake procedure, or component function from a nearby serial number, another model in the same family, or a different controller. The public John Deere 460M and 560M operator manual table of contents, for example, separates net material selection, loading, controller channels, net-wrap troubleshooting, and service procedures. That structure is evidence that the exact document matters; it is not permission to apply those models' procedures to another baler.
Unranked symptom and evidence record
Use this table to capture observations, not to rank causes. Complete powered observations only from the operator seat. Record close-up evidence only after the full stop-and-secure procedure above.
| Symptom or evidence | What to record | Next exact document |
|---|---|---|
| When the wrap starts | Before net reaches the bale, during application, at the cut command, during retraction, at gate opening, or after ejection | The exact operator-manual sequence for that wrap-cycle stage and controller version |
| Component receiving net | The manual or parts-catalog name and identifier; do not label it from appearance alone | The exact parts catalog, routing diagram, and service section for that serial number |
| Direction and layer pattern | Which direction the material winds, where the first layer begins, whether it tracks sideways, and whether the pattern repeats | The exact routing and troubleshooting pages; dealer review if the component cannot be identified safely |
| Controller state | Displayed wrap stage, code, alarm, commanded action, and software or firmware version | The exact controller manual, code table, and software-specific service information |
| Bale and crop state | Crop, moisture if measured, bale shape, density setting as displayed, diameter, and whether the event changes with bale shape | The exact operating and troubleshooting sections; do not change density from generic advice |
| Physical roll package | Full label, supplier, lot, package markings, core dimensions, outside diameter, package mass, width, length, and winding orientation | The exact manual's approved material and package limits plus the supplier specification for that lot |
| Routing and threading | The revision or date of the diagram used and a post-lockout photo showing the route without hands in the machine | The exact routing diagram and loading procedure for the serial number and installed net system |
| Manual-named settings | Displayed or indexed brake, tension, wrap-layer, actuator, hydraulic, knife, or other setting without changing it | The exact specification and adjustment procedure; dealer if the value or procedure is unknown |
| Environment and condition | Weather, storage history, dust, crop residue, moisture, contamination, packaging damage, and visible machine damage | The exact inspection and maintenance section; supplier documentation for package or storage concerns |
| Powered evidence | Controller logs and footage from a securely mounted, pre-set camera only if the exact manual and local rules allow it; review only after stopping | The exact diagnostic procedure and dealer instructions for evidence capture |
| Post-lockout evidence | Wide and close photos of the identified component, guards, routing, accumulated material, heat discoloration, roughness, bending, and damage | The exact inspection criteria and service limits; dealer evaluation when no public criteria exist |
Model-scoped OEM diagnostic evidence
The following evidence belongs only to the exact models, manual, and page named in each row. It is not a repair sequence and does not transfer to another model, serial range, controller, or retrofit. Keep the full safety boundary above in force, then use the exact page and every referenced procedure in the matching manual or contact the dealer.
| Exact model, manual, and page | Manual-scoped observed evidence | Next exact document or dealer boundary |
|---|---|---|
|
John Deere 460M and 560M only Operator manual OMFH331594 Load Net Wrap Material |
The page states that net extending too far beyond the rollers can wrap around them; knife cuts in the rubber covering can cause more-frequent wrapping and require roll replacement; and the manual calls for releasing and resetting the feed-roll brake at the beginning of each day. | Use the exact OMFH331594 page only when the model, full serial scope, net system, and manual revision match. This summary does not reproduce the loading or brake procedure. Unknown scope, adhered material, damage, or an unavailable exact procedure means dealer service. |
|
John Deere 468, 468 Silage Special, and 568 only Operator manual OMFH309531 Correcting Net Wrap Feeding Problems |
The page names these evidence categories: looped net; brake torque; front-sheet-to-rubber-roll clearance; cuts or nicks; long or uneven tails; a dirty brush; net-pan contact with the belts; and crop deflectors. The categories and their referenced sections are specific to this manual. | Open the exact page and its referenced section only when OMFH309531 matches the model and full serial scope. No torque, clearance, cleaning, adjustment, or repair instruction is transferred here. Unknown detail, damage, adhered material, or unsafe access means dealer service. |
|
John Deere 468, 468 Silage Special, and 568 only Operator manual OMFH309531 Net Wraps on Rubber Drive Roll |
The page explicitly says DO NOT cut net from the rubber feed roll because knife cuts in the rubber covering may cause more-frequent wrapping and may require roller replacement. | Do not treat the page title or this warning as permission to remove material. The exact OMFH309531 procedure and serial scope remain controlling. If material is adhered, the roll is damaged, or the procedure cannot be followed exactly and safely, contact the dealer or qualified service technician. |
These exact-manual evidence categories make the article more useful while also showing why the old forum fixes could not be generalized. Even within one manufacturer, different manuals name different components, conditions, checks, and warnings. The correct next step is the exact page for the exact model and serial scope, not a brand-wide workaround.
Verify the physical roll and net system as a matched package
Bale width or chamber width alone does not prove that a roll package fits. Against the exact manual and the physical roll label, verify the net system type, allowed width and length, maximum outside diameter, core inside diameter and length, maximum package mass, winding orientation, leader and threading requirements, and every required spacer or piece of hardware.
Separate standard net systems from proprietary edge or over-edge systems. A width that appears plausible can still be wrong for the roll holder, core support, brake, routing path, sensor logic, or installed attachment.
As one model-specific example, John Deere's public 460M and 560M documentation lists different net-system widths and calls for model-specific spacer and attachment requirements; its loading page also identifies a particular routing path, brake state, extension range, and daily procedure. Those details apply only to the machines, serial scope, and manual revision named on those pages. See Select Net Wrap Material and Load Net Wrap Material. Accessed August 16, 2026.
What not to improvise
Do not use generic advice to loosen or tighten a brake, change roller pressure, alter PTO rpm, change gate speed or hydraulic flow, adjust tension or clearance, change knife or actuator settings, alter a V-belt, change bale density, or reroute net. Use the exact value, condition, and procedure in the correct manual. Unknown serial scope, controller version, retrofit, or procedure means stop and contact the dealer.
Do not pull, cut, unwind, melt, burn, heat, abrade, sand, polish, file, grind, sharpen, remove, reshape, weld, or modify material, a roller, a roll, a spiral, an auger, or related hardware based on this article. If material is adhered, a component is damaged, the wrap cannot be removed under the exact service procedure, or anyone proposes changing a roller or spiral, use an authorized dealer or qualified service technician.
Stop and contact a dealer or service technician when
- wrap accumulation repeats after the exact manual's verified loading and setup procedure;
- a roller, roll, spiral, auger, belt, or related component is coated, rough, bent, cut, worn, or otherwise damaged;
- there is heat, odor, smoke, discoloration, crop ignition, or other fire evidence;
- a knife, actuator, brake, spreader, feed component, belt, or hydraulic part appears damaged or out of its documented limit;
- there is a hydraulic or electrical fault, sensor code, alarm, unexpected motion, or controller inconsistency;
- a guard, shield, sensor, or interlock is missing, damaged, bypassed, or not functioning;
- an attachment, retrofit, controller, or serial break is unknown;
- the roll package, routing, winding orientation, spacer, or hardware cannot be matched to the exact manual; or
- the exact service procedure does not authorize safe removal of the accumulated material.
Dealer and supplier handoff record
A complete record helps the dealer separate machine architecture, event timing, roll-package fit, and material-lot questions without asking anyone to repeat a hazardous observation.
| Record | Details to provide |
|---|---|
| Machine identity | Manufacturer, exact model, full serial number, installed options, retrofits, and guard or interlock condition |
| Control system | Controller name, software or firmware version, displayed stage, settings as found, codes, alarms, and logs |
| Manual identity | Operator and service manual publication number, revision or date, and the routing or troubleshooting page used |
| Event record | Exact cycle stage, manual-named component, direction and layer pattern, bale and crop state, and whether the event repeats |
| Physical roll | Photos of the full package and roll labels, lot, width, length, core, outside diameter, package mass, winding orientation, leader, and packaging condition |
| Seller disclosure | Legal seller name, purchase date, exact listing or compatibility representation, and any supplied fit or routing document |
| Safe evidence | Controller logs, any permitted pre-set camera footage reviewed after stopping, and post-lockout wide and close photos |
| Conditions | Weather, storage, contamination, crop, measured moisture if available, bale shape, and displayed density |
Source method and external dependency
This guide uses an accessible John Deere 460M and 560M operator manual to show why machine identity, routing revision, controller state, and model-specific procedures matter. It does not generalize that architecture or those settings to other machines. General lockout language is supported by Penn State Extension only; the exact OEM manual remains controlling.
Many exact manuals and service procedures are not fully public. Vermeer asks owners for the model and 17-digit VIN or older serial number through its official product-manual request. Case IH provides current operator manuals through Case IH FieldOps. If the correct public page is unavailable or access is gated, obtain the exact manual from the OEM or dealer. Do not fill the gap with a forum, secondary blog, or a manual for a nearby model. Accessed August 16, 2026.
Frequently asked questions
Why does net wrap around a roller or spiral?
There is no universal cause. The useful first distinction is when the event begins and which exact manual-named component receives the net. Routing, package fit, controller state, damage, contamination, and machine settings can only be evaluated against the operator or service manual for the exact model, full serial number, controller or software, and installed retrofit.
Can I pull or cut the wrapped net off?
Do not reach in, enter the chamber, or improvise removal. Stop and secure the machine under the exact manual, including control of stored energy and the provided gate lock or support. Follow only the exact service procedure for that machine. If no procedure authorizes safe removal, the material is adhered, or a component is damaged, contact a dealer or qualified service technician.
Can I remove a spiral or polish a roller?
Not from generic advice. Do not remove, reshape, shield, abrade, sand, polish, file, grind, weld, or otherwise modify a spiral, auger, roller, or related hardware. The component may be part of a specific net system, serial configuration, or safety design. Any proposed modification belongs with the OEM, dealer, or qualified service technician.
Can I change PTO speed, brake tension, hydraulics, or other settings?
Only use the exact value and procedure in the correct operator or service manual for the machine's model, full serial number, controller or software, and installed options. Do not improvise PTO rpm, brake or roller pressure, hydraulic flow, gate speed, tension, clearance, knife, actuator, belt, density, or routing changes. Unknown details mean stop and contact the dealer.
How do I verify roll fit and routing?
Match the physical roll label to the exact manual's net system type, width, length, maximum outside diameter, core inside diameter and length, maximum package mass, winding orientation, leader and threading path, spacers, and hardware. Chamber or bale width alone does not prove fit. Keep standard net separate from proprietary edge or over-edge systems.
What evidence does the dealer need?
Provide the exact model and full serial number; controller and software; options and retrofits; manual publication and routing revision; cycle stage; manual-named component; codes and logs; crop and bale state; full roll label, lot, package, core, outside diameter, mass, and winding details; seller representation; conditions; and safe post-lockout photos.

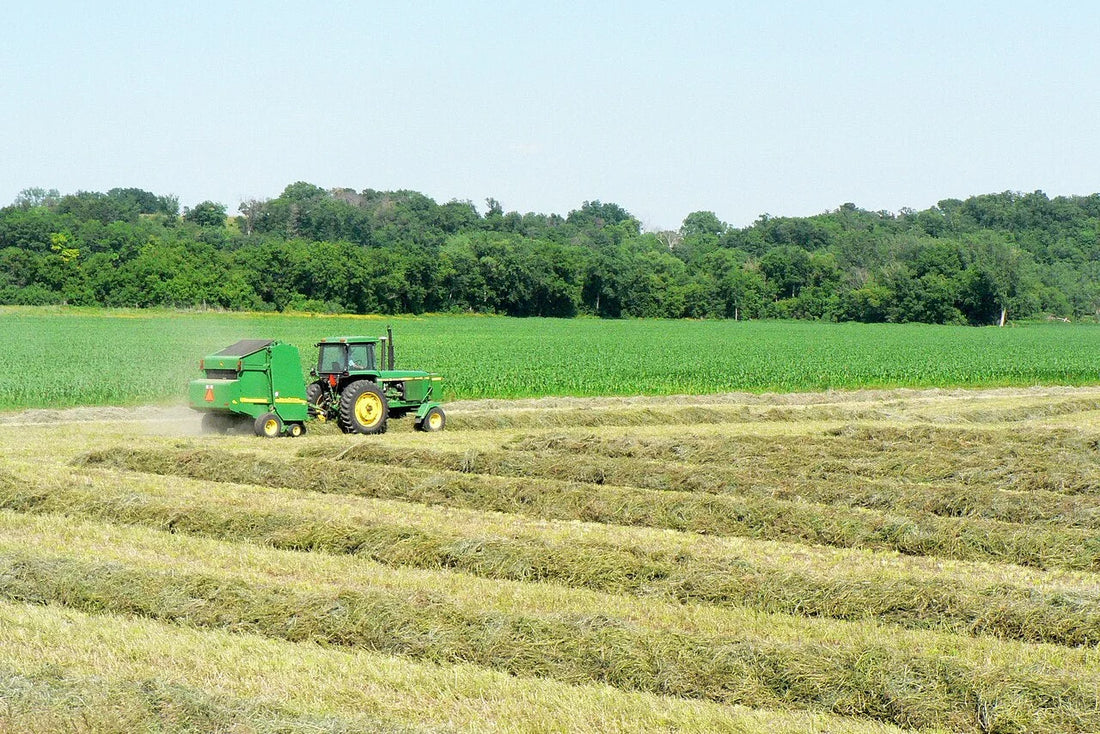

Featured photo: Iowa hay field harvest by mahalie stackpole, licensed under CC BY-SA 2.0, via Wikimedia Commons. File description: John Deere tractor towing a John Deere round baler through Iowa hay windrows. Visually verified August 16, 2026; the image is a distant operating view with the operator in the tractor cab and no person shown in the baler's hazard zones.
