Quick answer: New Holland net-wrap troubleshooting starts with the exact model, serial number and fitted wrapping system. A 600-series catalog route shows a belt-and-pulley drive, while Roll-Belt 450–560 balers use separate electric motors for the wrapper and knife. CNH's general variable-chamber maintenance page lists electric net-wrap actuator parts but does not prove they fit any specific BR or BR7000 baler.
Safety before troubleshooting a New Holland baler
Never stand behind or reach into an operating baler. Observe a wrap cycle from the tractor seat, the machine's viewing window or a properly mounted camera. Before opening a shield or touching the duckbill, baffle, knife, roller or hydraulic component, park on level ground, disengage the PTO, shut off the tractor, remove the key and wait for all motion to stop. Engage the mechanical tailgate lock or support required by the operator's manual. Relieve hydraulic pressure before disconnecting or servicing a line.
These shutdown steps follow Penn State Extension's 2025 baler-safety guidance and the Farm and Ranch eXtension round-baler safety recommendations.
Identify the baler generation before using a fix
New Holland has used several different wrap-control systems. A brake, linkage or motor check from one family can be wrong for another. Use the complete model and serial number when finding the operator manual or parts diagram.
| Family | What changes | Start with |
|---|---|---|
| 600 series when equipped with net wrap: 630, 634, 635, 640, 644, 648, 650, 654, 658, 660, 664, 678, 688 | For configurations represented in the 600-series catalog route, CNH shows a V-belt, net-wrap drive pulley, stripper rolls, duckbill and knife arm. Confirm applicability before using the diagram | Routing, belt and pulley, brake, knife, linkage and wear |
| BR series: BR740, BR740A, BR750, BR750A, BR770, BR770A, BR780, BR780A | Do not infer hardware fit from CNH's general variable-chamber maintenance page. Identify the components installed on the exact model and serial range before testing or replacing parts | Threading, baffle, brake, knife/cam or linkage, sensor and calibration named by the exact manual |
| BR7000 series: BR7050, BR7060, BR7070, BR7090 (incl. CropCutter) | Treat the remaining tail as an observed result of the cut cycle, not as proof of a separate tail-length control. Confirm every electrical and mechanical component by model and serial number | Threading, baffle, brake, knife/cam or linkage, sensor and calibration named by the exact manual |
| Roll-Belt series: Roll-Belt 450, Roll-Belt 460, Roll-Belt 550, Roll-Belt 560 (and Roll-Belt 450 Utility) | New Holland's Roll-Belt brochure says separate electric motors control the wrapper duckbill and net knife; the assemblies do not share the older multiple-linkage arrangement | Fault code, harness, wrapper motor, knife motor, home positions and routing |
| Pro-Belt 450, 460 (2022 onward) | Current commercial series. The public product page does not establish that its net-wrap hardware is identical to Roll-Belt, so do not assume cross-family parts or tests | Exact ISOBUS fault, operator manual, model/serial parts lookup and dealer test |
| New Holland 565 | Small square baler with a twine knotter, not a New Holland round-baler net-wrap model | Use square-baler knotter guidance instead |
The family map above comes from the CNH 600-series duckbill and knife-arm catalog, the CNH 600-series net-feed shield and drive catalog, CNH's general variable-chamber net-wrap maintenance page, and New Holland's Roll-Belt 450–560 brochure, pages 8–9. The 600-series routes establish those assemblies within that catalog family but do not prove that every component applies to every listed model or serial range. The general variable-chamber page lists service parts without model/serial applicability. The current Pro-Belt product page confirms the current family but does not publish a wrap-cycle component map.
A forum reference to a “Case 565 Premium” means a Case IH RB565 Premium round baler, not a New Holland 565.
New Holland net-wrap symptom checks at a glance
| Symptom | First safe check | Safe next step |
|---|---|---|
| No net remains in duckbill | Threading, baffle relationship and observed net tail | Correct the route and model-specific baffle relationship |
| Net tail pulls back after the cut | Observed tail, knife, brake and family-specific home position | Correct documented components; do not invent a universal tail-length setting |
| Short, stretched or torn wrap | Manual brake setting and roll condition | Set brake resistance by the model procedure, not a universal turn count |
| Continuous wrapping | Family, displayed fault and wrapper/knife home positions | Test only the linkage, electrical component or separate wrapper/knife motors documented for that machine |
| Net will not cut | Knife, linkage, routing and brake | Restore full travel and the exact model's knife relationship |
| Net tracks sideways or shreds | Buildup, roll centering, guides and spreader path | Clean and align the feed path before changing settings |
| Bale Command or IntelliView fault | Full code, connector and family-specific component test | Separate a missing command from the documented electrical or mechanical component |
| Wrap feeds slowly or comes up short | Routing, observed tail, brake, roll drag and the documented electrical or mechanical travel | Do not assume a hydraulic wrap circuit; follow the exact family architecture |
No net remains in the duckbill for the next bale
The duckbill is a moving feed assembly, not a gap between rollers. New Holland's 600-series parts catalog names the “Net Wrap, Duckbill & Knife Arm” assembly. CNH's general variable-chamber page separately lists duckbill/spreader bearings, electric net-wrap actuator parts, a brake pad, knives and a cam follower, but it does not establish which specific BR or BR7000 models or serial ranges use those parts.
A July 2025 BR7090 field discussion began with incorrect threading or the baffle-to-duckbill relationship as the first diagnosis. Replies also separated excessive brake tension, the amount of tail observed after the cut, knife condition and sensor/potentiometer calibration. One reply proposed a Roll-Belt duckbill-stop adjustment; the next correctly warned that the procedure did not transfer to the BR baler. That disagreement is why the model family matters.
Check in this order:
- Confirm threading with the operator-manual diagram and loading tool.
- With the machine secured, clean packed material from the baffle and duckbill area.
- Inspect the model-specific baffle contact or clearance only where the manual calls for it. BR and Roll-Belt procedures are not interchangeable.
- Observe how much net remains after the knife cuts. On BR and BR7000 machines, treat that tail as a diagnostic result; do not assume there is a separate tail-length adjustment.
- Continue with the documented machine path: confirm which 600-series components apply to the model and serial range; use only BR/BR7000 components and tests named by the exact manual; check Roll-Belt wrapper-motor and knife-motor movement; and use the Pro-Belt component test from its own manual.
Observed net tail versus an adjustable setting
The remaining tail is what you inspect; it is not automatically the control you adjust. A short or missing tail can result from brake resistance, knife condition, linkage or cam timing, baffle position, routing, roll drag, calibration or an electrical component identified by the exact machine's manual. The serviceable component depends on the installed system:
| Family | What the observed tail tells you | Documented components to inspect or set |
|---|---|---|
| 600 series | Whether the belt-driven feed and knife sequence left net ready for the next bale | V-belt, drive pulley, stripper rolls, brake, knife arm and linkage; set only by the exact manual |
| BR and BR7000 | Whether the cut cycle, brake and feed geometry left usable net in the duckbill | Baffle, brake, knife/linkage or cam, sensor and calibration where the exact manual identifies them; no universal tail-length setting or family-wide actuator assumption |
| Roll-Belt 450–560 | Whether the separately motorized wrapper and knife completed their travel and returned home | Routing, roll brake, wrapper motor, knife motor, home positions, harness and monitor test; New Holland says this design eliminates multiple linkages and knife-link adjustments |
| Pro-Belt 450/460 | Whether the current machine completed its commanded wrap and cut sequence | Only the controls and components named by the exact Pro-Belt operator/service manual and ISOBUS diagnostic |
Wrap comes out short, stretched or torn
Too much roll-brake resistance can stretch the net and pull the cut tail back through the duckbill. Too little resistance can leave slack at the knife. The correct setting depends on the brake design, model, serial range and roll diameter.
Do not loosen the adjustment three or four turns because a forum reply said “almost all the way.” That reply did not provide a turn count, and the starting position is unknown. Use the operator manual's starting setting and test procedure. Mark the original position before changing it, adjust only in the prescribed increment and record the result.
If changing the brake does not produce a predictable response, stop and inspect the brake pad, spring, linkage and roll support rather than continuing to turn the adjustment. A damaged roll edge, wrong route or rough guide surface can produce the same symptom.
Continuous wrapping will not stop
Continuous wrapping is a control problem only after the correct family's cutoff path has been checked. Start with the architecture the OEM sources actually identify:
- 600 series: inspect the belt-and-pulley feed, knife/linkage travel, brake and home position named in the exact manual.
- BR and BR7000 with Bale Command: record the displayed fault, identify the exact model/serial hardware in the operator or parts manual, then test only the named electrical component, sensor, brake, knife/cam and calibrated positions.
- Roll-Belt 450–560: use the Auto-Wrap II, Bale Command II or IntelliView procedure fitted to the baler, then test the separately motorized wrapper duckbill and knife, their home positions and the harness.
- Pro-Belt 450/460: record the full ISOBUS fault and use the current model's component test; do not inherit a Roll-Belt or BR test by model-name similarity.
Do not test a hydraulic valve as a generic continuous-wrap step. None of the reviewed net-wrap sources identifies a hydraulic valve in these wrap cycles. Test a valve only when the operator or service manual for the exact model and serial number names that valve in the failed function.
If the machine is labeled New Holland 565, this round-baler diagnosis does not apply: that model uses a twine knotter. The similarly numbered Case IH RB565 is a different round baler and needs its own model guidance.

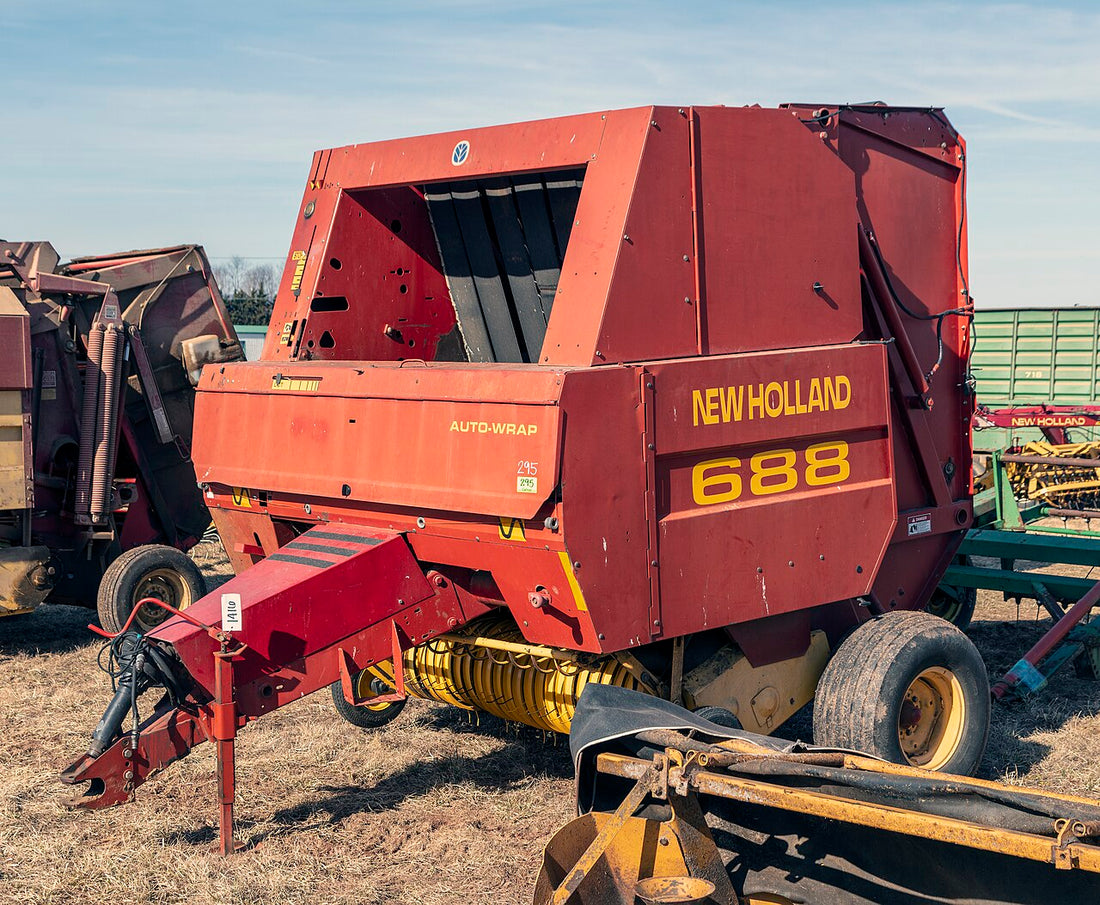

NH 648 or 688 will not cut net
The 648 and 688 are 600-series machines, but there is no verified mid-2010s net-wrap-standard change that made their knife geometry obsolete. The CNH catalogs instead document a knife arm, bearings and bushings plus a V-belt, net-wrap drive pulley, spring, eyebolt and stripper rolls. Age-related wear, knife condition, linkage travel, routing, brake setting and the feed path are better-supported places to start.
- Secure the machine and inspect the knife visually. Do not touch or test the edge with a finger.
- Confirm the knife arm reaches both the cut and home positions without binding.
- Match routing, belt condition, linkage and brake adjustment to the 648/688 manual, not a later BR or Roll-Belt procedure.
- Check for buildup, worn guides and rough contact points that can tear the net before the knife.
- Use the correct replacement part for the model and serial number; do not assume an aftermarket or OEM label alone guarantees the geometry.
If the net still will not cut after this shutdown-safe inspection, keep the PTO disengaged, engine off and key removed. Do not open a hood, reach toward the knife or observe moving parts from behind the baler. Record what failed to reach its manual-specified position and take that evidence to a New Holland dealer.
Net tracks sideways or shreds on the spreader path
Inspect the feed path at the start of each baling day and whenever the symptom changes. Clean crop residue with the method specified by the manual; avoid tools or solvents that can score or damage coated rollers. Compare both sides for buildup, free rotation, damaged rubber, guide wear and roll centering.
Do not rely on a universal bale-count interval for cleanliness checks; crop, humidity and residue load change the need. If one roll shreds, first shut down, remove the key and wait for all motion to stop before inspecting its width, edge damage and storage condition. Then load a known-good roll by the operator manual, close every shield and hood, return to the tractor seat and make the next comparison under the same documented settings. If the symptom follows the roll, quarantine it; if both rolls fail the same way, stop changing rolls and inspect the machine path. Never touch the knife or observe the test from behind an operating baler.
Bale Command or IntelliView fault
IntelliView is a tractor display. It can show baler faults when an ISOBUS-equipped baler is connected, but many New Holland balers use a standalone Bale Command monitor. Identify the display and controller before following a code procedure.
- Photograph or write down the complete code and the exact point in the cycle when it appears.
- Inspect the relevant connector for backed-out pins, corrosion, unsupported harness weight or chafing.
- Use the monitor's component test to distinguish a missing command from the electrical or mechanical component named by the exact machine's manual.
- If a fault names a hydraulic function such as the tailgate, pickup lift or drop floor, diagnose that function by its manual. Do not turn a generic wrap fault into a hydraulic flush or valve replacement.
- Firmware updates require the correct New Holland service process; they are not a substitute for testing the documented electrical and mechanical path.
For broader power and connector checks, see round baler monitor troubleshooting.
Wrap feeds slowly — should you test tractor hydraulics?
Not as a generic first test. New Holland did not use one universal wrap drive across these families. A 600-series catalog route shows a V-belt and net-wrap drive pulley, but applicability still has to be confirmed for the exact model and serial range. CNH's general variable-chamber maintenance page lists electric net-wrap actuator parts without proving fit for a specific BR or BR7000. The Roll-Belt 450–560 brochure says separate electric motors control the wrapper and knife.
No reviewed OEM manual or parts source supports the earlier BR7090 hydraulic figure as a wrap-cycle diagnostic, so it is not used here. Hydraulic requirements belong to the exact operator manual and configuration, not to a cross-family wrap rule.
If the wrap feeds slowly, comes up short or lags the bale, start with the documented wrap path: routing, roll centering and drag, brake condition, observed tail, knife and duckbill travel, then only the belt, motor, switch, sensor, calibration or other component named for that machine. Do not turn the tractor remote to maximum hoping it will correct an electric or mechanical wrap fault.
A slow or drifting tailgate, weak pickup lift, slow drop floor or a fault that explicitly names a hydraulic function can justify the manual's flow-and-pressure test. A wrap that will not start, return home or cut does not justify one unless the exact model manual places a hydraulic component in that failed step.
When to call a New Holland dealer
- The duckbill, baffle or knife arm is bent, cracked or will not reach its calibrated positions.
- A Bale Command or ISOBUS fault returns after the model-specific component test, connector inspection and calibration.
- A documented 600-series drive component, BR/BR7000 electrical component, or Roll-Belt wrapper/knife motor does not complete its specified travel.
- The tailgate, pickup lift or drop floor stays slow after the tractor remote is set by the exact operator manual.
- Metal or other contamination is found in the hydraulic filter or oil.
- The problem crosses mechanical, electrical and hydraulic systems or changes unpredictably.
Frequently asked questions
What is the New Holland duckbill on a round baler?
The duckbill is a moving net-feed assembly that presents the net to the bale chamber; it is not a gap between rollers. CNH catalogs identify duckbill, knife, brake and drive components, but their relationships vary by family. Use the exact model and serial-number manual for baffle clearance, home position and adjustment.
How many turns should I loosen a New Holland net-wrap brake?
There is no safe universal turn count. The correct starting point and adjustment depend on the model, serial range, brake design and roll diameter. Mark the original position, use the operator manual's procedure and adjust only by its specified increment. A forum comment saying “almost all the way” does not establish a three- or four-turn setting.
Is net tail length adjustable on a New Holland BR baler?
Do not assume it has a separate tail-length control. On BR and BR7000 balers, the remaining tail is first an observation of how the documented brake, knife or cam, baffle, sensor, calibration and electrical components completed the cut cycle. Adjust only the component and procedure identified for that model and serial number.
Is the New Holland 565 a net-wrap round baler?
No. The New Holland 565 is a small square baler that uses a twine knotter. The Case IH RB565 Premium is a round baler with net-wrap capability, but it is a different machine. Do not apply Case IH RB565 troubleshooting to a New Holland 565 or list the NH 565 in a round-baler net-wrap table.
Does a New Holland round baler have a hydraulic net-wrap motor?
Do not use one answer for every family. A CNH 600-series catalog route shows a belt-and-pulley drive, subject to model/serial confirmation; CNH's general variable-chamber page lists electric actuator parts without proving BR or BR7000 fit; and New Holland's Roll-Belt 450–560 brochure identifies separate electric wrapper and knife motors. None identifies a generic hydraulic net-wrap motor or wrap valve across these families.
Source and disclosure note: Component architecture comes from the linked CNH parts catalogs and New Holland Roll-Belt brochure; the BR7090 symptom set comes from the linked field discussion. XES manufactures and sells bale net wrap and is not New Holland or a New Holland dealer. CNH's general variable-chamber page does not establish model/serial applicability, and we found no accessible OEM support for the previously published BR7090 hydraulic figure or a generic wrap-cycle hydraulic valve. The operator and service manual for the exact model and serial number supersedes this guide.
