Scope and disclosure: XES manufactures bale net wrap. We are not a baler manufacturer, a hydraulics shop, or your dealer. This guide organizes how the bale-density circuit works, what operators report going wrong with it, and published agricultural-safety guidance on servicing hydraulics. It is not a service manual and it does not replace one. Procedures, pressures, and port locations differ by make, model, and serial-number range — your operator's and technical manuals govern, and a qualified technician should handle anything you are not equipped to do safely.
Quick answer: On most variable-chamber round balers, bale density is set by a closed hydraulic circuit — density cylinders pushing on the belt tension arms, usually damped by a nitrogen-charged accumulator. Because it is closed, it holds no reservoir to top off: if oil escapes, air gets in, or a seal passes, density falls and bales come out soft at the same setting. Four symptoms point to four different faults. Bales soft with pressure low = the circuit needs recharging. Pressure climbs then bleeds off in under a minute = a seal, O-ring, or valve is passing, and recharging will not hold. Gauge won't return to zero with an empty chamber and the tailgate closed = usually over-filled, or a cylinder piston seal is leaking past. Tension arm creeps back slowly after a bale dumps = air still trapped in the circuit. Recharge before you replace: operators repeatedly report the fix being a recharge, a $50-range seal kit, or flushing contamination out of a stuck valve — not belts, not a worn-out baler. Relieve all pressure before opening anything, never hunt a leak with your hand, and never charge an accumulator with shop air.
1. How the density circuit actually works
On a variable-chamber baler, the belts wrap the growing bale and the belt tension arms decide how hard those belts squeeze. Hydraulic density cylinders push on that arm assembly. As the bale grows and forces the arms outward, pressure in the circuit rises, and that rising pressure is what packs the hay tighter and tighter toward the outside of the bale.
Two design details cause nearly all the confusion operators run into.
First, it is usually a closed circuit. The oil is captured in the density cylinders, hoses, and valve — it is not continuously fed from the tractor while you bale. That is why there is no dipstick and nothing to top off, and why a small loss of oil or a small intake of air changes behavior immediately. Anything that opens the circuit — a replaced hose, a weeping fitting, a rebuilt cylinder — means the circuit has to be re-charged and the air purged before the baler will make a tight bale again.
Second, many systems include a nitrogen-charged accumulator. An accumulator is a vessel split by a bladder or piston, with dry nitrogen on one side and hydraulic oil on the other. The compressed gas acts as a spring: it absorbs pressure spikes as slugs of hay hit the chamber and keeps force on the arms steady instead of hammering the hydraulics. A nitrogen pre-charge that has bled down over the years gives you a harsher, less consistent system even when the oil side is fine.
A separate variation worth knowing: on some machines the density setting is a manual knob or valve, and on others it is variable or programmable from the monitor — but the electronic soft-core/hard-core function only works if the valve on that machine actually carries the electric control hardware. Operators comparing two balers of the same family are sometimes comparing a machine that has that option against one that doesn't. If your machine has no gauge and no knob, adding a gauge is often the first useful diagnostic step, because you cannot troubleshoot a pressure you cannot see.
For the decision of how much density you want in the first place — and the soft-core-versus-hard-core trade-off — see our guide to soft core vs hard core round bales. This article is about the circuit that delivers it.
2. Match the symptom to the fault first
The single most expensive mistake here is replacing belts, chains, or a whole baler because bales went soft, when the actual fault was a circuit that lost its charge. Start by naming the symptom precisely.
| What you observe | Most likely direction | Will a recharge fix it? |
|---|---|---|
| Bales suddenly soft at the same setting; gauge reads low through the whole bale | Circuit has lost charge (slow seep, or it was opened for service) | Usually yes |
| Charges up fine, then falls from full pressure to a fraction of it within a minute | A seal, O-ring, or valve is passing internally | No — find the leak path |
| Gauge won't drop to zero with an empty chamber and the tailgate closed | Over-filled during charging, or cylinder piston seals leaking past | Bleed a little back out first |
| Tension arm creeps down slowly after a bale dumps; you wait before starting the next one | Air still trapped in the circuit after service | Re-cycle and purge |
| Pressure runs high or pins in the red and won't come down | Valve sticking, often from contamination in the circuit | No — clean or service the valve |
| Bale is firm in the middle, soft and rounded on both ends | Feeding technique, not hydraulics — the ends aren't being filled | No — weave the windrow |
That last row matters more than operators expect. A bale that comes out barrel-shaped — packed in the center, soft on the shoulders — is almost never a pressure problem. In a light or narrow windrow you have to weave across the chamber so hay reaches both ends. Turning the density up on a barrel-shaped bale just makes a harder barrel. If your bales are losing shape rather than simply running soft, that is a different diagnostic path: see round bales not holding shape.
3. Before you open anything: hydraulic safety
This is the section to not skim. A round baler density circuit is a stored-energy system, and the pressures involved are not trivial.
The Farm and Ranch eXtension in Safety and Health (FReSH) Community of Practice notes that hydraulic systems on agricultural equipment routinely operate above 2,000 psi, with some newer and larger machines exceeding 3,000 psi — against roughly 40 psi for a household faucet. At those pressures, fluid escaping a pinhole can penetrate skin.
The published guidance is specific:
- Never use your hand to locate a hydraulic leak. Wear eye protection and gloves, and run a piece of paper, wood, cardboard, or Plexiglas along the line instead.
- Relieve pressure before detaching or attaching any line. FReSH puts this in bold for a reason — it is the step most often skipped.
- Treat an injection injury as an emergency. Injected hydraulic fluid can cause severe injury including gangrene, and requires immediate medical care. Tell the clinician it was a high-pressure fluid injection injury — the puncture can look trivial while the damage underneath is not.
- Don't run the engine while servicing the system unless you are specifically bleeding it, and let hot fluid cool before opening lines.
- Don't mix low- and high-pressure coupler components, which can rupture a hose or fitting.
- Support the machine mechanically. Never rely on hydraulic pressure alone to hold a raised tailgate or component while you work under or behind it — use the tailgate lock, stands, or blocks.
One more that is specific to accumulators: charge them with dry nitrogen only, never with shop air or oxygen. Compressed air introduces both moisture and an oxidizer into a hot oil system. If your machine's accumulator needs a gas pre-charge and you do not have nitrogen and the correct charging gauge, that is a dealer job, not a shop-air improvisation.
Similarly, operators who have rebuilt density cylinders warn against using compressed air to blow a stuck piston and rod out of the barrel — the outcome ranges from a large oil mess to a projectile.
4. Recharging the circuit: what the job involves
Because the specifics vary by brand, treat what follows as the shape of the job so you know whether it is within your reach — not as step-by-step instructions for your machine. Some balers provide a dedicated charging coupler for exactly this purpose; others require you to tee into the circuit. Your technical manual specifies which, plus the port locations, the cycle count, and the target pressure.
In general terms, a density recharge involves:
- Relieving all pressure in the circuit and mechanically securing the tailgate before anything is opened.
- Connecting the circuit to a live hydraulic supply — typically the tractor remotes, through the manufacturer's charging point or a teed connection.
- Freeing the density cylinders so they can travel their full stroke safely without loading the tension arms — and confirming nothing is in the path.
- Cycling the cylinders full stroke, repeatedly. Operators commonly cite something on the order of a dozen full cycles; the point is to move oil through and push trapped air out, not to hit a magic number. Watch that both cylinders travel evenly — uneven travel is itself a finding.
- Restoring the original plumbing and verifying behavior: pressure should build as the chamber loads and the tailgate closes on a bale, and fall back toward zero on an empty chamber with the gate closed.
- Bleeding a little oil back out if it reads pressure when it shouldn't — the classic sign of over-filling during the charge.
That last check is the acceptance test. If an empty chamber with the tailgate closed still shows meaningful pressure, the circuit is holding oil it shouldn't. Some operators report their gauge never settles at a perfect zero and the machine bales fine regardless; a small residual is different from a gauge that sits high and never relaxes.
5. Getting the air out
Air is the most common reason a freshly recharged system still misbehaves. The tell is timing: the machine makes decent pressure while baling, but after a bale is ejected and the gate closes, the tension arm settles back slowly — sometimes leaving the operator idling half a minute before starting the next bale.
Oil is effectively incompressible; trapped air is not. That pocket of air compresses and re-expands, so the arm sponges instead of snapping back. The remedy is the same motion as charging — full-stroke cycling to carry the air out through the high point of the circuit — done per the manual's bleed sequence. If your machine also uses spring tension on the arms and the arm still won't return promptly with the circuit bled, stop and look for a mechanical bind or obstruction rather than adding more pressure.
6. When a recharge won't fix it
If the circuit charges to normal pressure and then bleeds down quickly, the oil is going somewhere. On a closed circuit with no visible external leak, that usually means it is passing internally — past a cylinder piston seal, or across a seal inside the tension/density valve.
Three findings come up again and again in operator accounts:
- Split or hardened O-rings on the valve pistons. These can look acceptable in place and only show the split once fully removed. A visual glance is not an inspection.
- Contamination holding a valve open or stuck. A flake of rubber shed by a deteriorating hose is enough. This matches the maintenance guidance from FReSH directly: dirt is the biggest culprit in hydraulic system damage. More than one operator has reported a density fault that resolved after cleaning the valve, with no parts replaced at all.
- Worn density cylinders needing a seal kit. Operators who have done this themselves describe rebuild kits in the $50-per-cylinder range and the job as heavy and messy but achievable — and note that a rebuild should be followed by a proper recharge.
The practical sequence that saves the most money: verify the symptom → recharge and bleed → if it won't hold, inspect the valve and clean it → then look at cylinder seals. Replacing belts because bales are soft, before checking the circuit that sets belt tension, is doing step four before step one. Belts have their own wear indicators — see when to replace round baler belts — and chain and bearing service is a separate schedule again.
If you are inspecting a used machine before buying, the density circuit deserves a specific look for exactly these reasons; our used round baler buying guide covers the wider walkaround.
7. What pressure should it run? There is no single number
This is where internet advice does the most damage. Operating pressures reported by operators across different makes, models, and crops span a very wide range — roughly 1,000 psi at the low end for dry hay on some machines, up to around 3,500 psi as a factory setting on others. A number that is correct for one machine is capable of damaging another.
So use this rule instead: the target pressure for your baler is the one in your technical manual for your model and serial range, and nothing else is a substitute. If you have no manual and no gauge, get both before you start adjusting.
Two pieces of judgment sit on top of the manual's number, and both come from operators running these machines season after season:
- More pressure is not free. Running near the top of the range all the time buys density at the cost of stress on belts, bearings, and the chamber. Several long-time operators deliberately run below maximum in dry hay for machine longevity, and only wind pressure up when they specifically need weight or are maximizing a load.
- Crop and moisture change the answer. Baleage and silage-type crops are commonly run near maximum density, dry hay lower. A bale can also be built too tight to get a spear into cleanly — a real handling problem, not a theoretical one.
Ground speed and windrow shape interact with all of this too. A baler fed a consistent, well-formed windrow at a steady speed makes more uniform bales than the same machine at the same pressure fed erratically — which is why bale weight varies so much between operations running identical balers. Our round bale weight by baler model guide covers that spread.
8. What density is worth: sag, weathering, and storage loss
It is worth knowing what you are chasing, because density is not just a number on a gauge — it changes how much hay survives storage.
University of Missouri Extension and other Extension sources put a working minimum of about 10 pounds of hay per cubic foot on large round bales stored outside. Below that, bales sag. A sagging bale flattens where it meets the ground, which increases the contact area, holds moisture against the bale, and accelerates spoilage from the bottom — the part you cannot see until you move it.
Denser bales also shed water better and let weathering penetrate less deeply. That matters because the damage concentrates in a thin outer shell: Extension sources commonly describe weathering in the outer several inches of an unprotected bale accounting for a large share of total dry-matter loss, with outdoor unprotected storage losses ranging widely by climate and site. Given that a large round bale's outer layers hold a disproportionate share of its volume, a few inches of rot is not a cosmetic problem.
For the storage side of that equation — site, base, spacing, and orientation — see how to store round bale hay and storing net-wrapped bales outside.
9. Where net wrap fits — and where it doesn't
Let's be straight about the boundary, because we sell net wrap and you should know where our product stops being the answer.
Net wrap does not create density. It cannot rescue a bale the chamber built soft, it will not fix a failing density circuit, and no wrap specification substitutes for hydraulic pressure. If your bales went soft, the fix is in this article, not in the wrap.
What is true is that the two interact, in one specific direction: the denser you build a bale, the more work the wrap has to do. A tightly packed bale stores real spring energy and tries to expand the instant the chamber opens. The net is what contains it from the chamber to the ground to the stack. Push density up while keeping the same wrap count and you can find the limit — operators running heavy, dense bales do report bales letting go when the wrap count was left where it was for lighter hay.
So if this guide's fix works and your bales come back up to full density, treat wrap count as part of the change rather than a constant. Our guides to how many wraps per bale and why net wrap breaks on bales cover where that limit sits. Coverage to the bale's edge matters as much as the count, since the shoulders are where a dense bale pushes hardest.
That is the honest relationship: the baler makes the density; the wrap has to hold it. XES Extreme net wrap is built for that holding job — consistent width so it reaches the shoulders, and 12-month UV protection tested to DIN EN ISO 4892-2 (A) for bales that sit outside through a season.
10. The pre-season density checklist
Run this before the first cutting rather than in the middle of it, when a dealer visit costs you a weather window.
- Confirm you have a working pressure gauge you can read from the seat, and the manual's target pressure for your model.
- With the machine safely shut down and pressure relieved, inspect hoses and fittings for weeping, chafing, cracking, or a deteriorating cover that can shed material into the circuit.
- Empty chamber, tailgate closed: confirm the gauge relaxes toward zero rather than sitting loaded.
- Watch both density cylinders through a cycle for even travel and for rods that are pitted, scored, or rusted.
- Check that the tension arms move freely through their range with no mechanical bind, and grease per the manual.
- If your machine has a nitrogen accumulator, note when its pre-charge was last verified — and book the dealer if you are not equipped to check it with nitrogen and the correct gauge.
- Bale a few and check bale shape and firmness by hand at the ends, not just the middle.
- If density changed, revisit wrap count before you fill a field with bales you have to re-wrap.
11. Frequently asked questions
Why did my round baler suddenly start making soft bales?
The most common cause is the density circuit losing its charge — through a slow seep, a replaced hose, or a passing seal. Because it is a closed system with nothing to top off, even a small oil loss drops pressure at the same setting. Check the gauge before assuming the belts or chamber are worn out.
How do I know if my baler density system needs recharging or repair?
Charge it and watch the gauge. If it builds to normal pressure and holds, it simply needed the charge. If it climbs and then bleeds off within about a minute, oil is passing internally — a valve seal, an O-ring, or a cylinder piston seal — and recharging will not hold until that is fixed.
Why won't my bale density gauge go back to zero?
Usually the circuit was over-filled during charging, and bleeding a small amount of oil back out corrects it. The other possibility is a density cylinder piston seal leaking past. Some operators report a small residual reading with no baling problems; a gauge that sits high and never relaxes is the one to chase.
Can I charge a baler accumulator with an air compressor?
No. Accumulators are charged with dry nitrogen only. Shop air introduces moisture and an oxidizer into a hot oil system. Charging also requires the correct gauge and the manufacturer's pre-charge specification, so if you are not equipped for nitrogen, this is a dealer job.
What pressure should a round baler density system run?
There is no universal figure — reported operating pressures span roughly 1,000 to 3,500 psi across different makes, models, and crops. Use the value in your technical manual for your model and serial range. Running near maximum continuously buys density at the cost of wear on belts, bearings, and the chamber.
Does net wrap make bales tighter?
No. Net wrap binds a finished bale's shape; the baler's density system creates the density. Wrap becomes relevant in the other direction: a denser, heavier bale pushes harder against the net, so if you raise density you should review wrap count and edge coverage rather than leaving both unchanged.
Is a soft bale actually a problem if the hay is good?
It costs you in storage. University of Missouri Extension cites roughly 10 pounds per cubic foot as a working minimum for large round bales stored outside; below that, bales sag, flatten against the ground, hold moisture, and spoil from the bottom. Denser bales shed water and resist weathering better.
The bottom line
Soft bales at an unchanged setting are a hydraulics symptom, not a verdict on your baler. The density circuit is closed, so it cannot be topped off — it has to be charged and purged, and it tells you which fault you have by how the pressure behaves: low throughout, bleeding off fast, refusing to zero, or sponging back slowly. Diagnose by that behavior, relieve pressure before opening anything, and work the cheap causes first. A recharge, a cleaned valve, or a seal kit resolves this far more often than a parts bill suggests. Then, once the bales come back up to weight, make sure the wrap holding them was specified for the density you are now making.

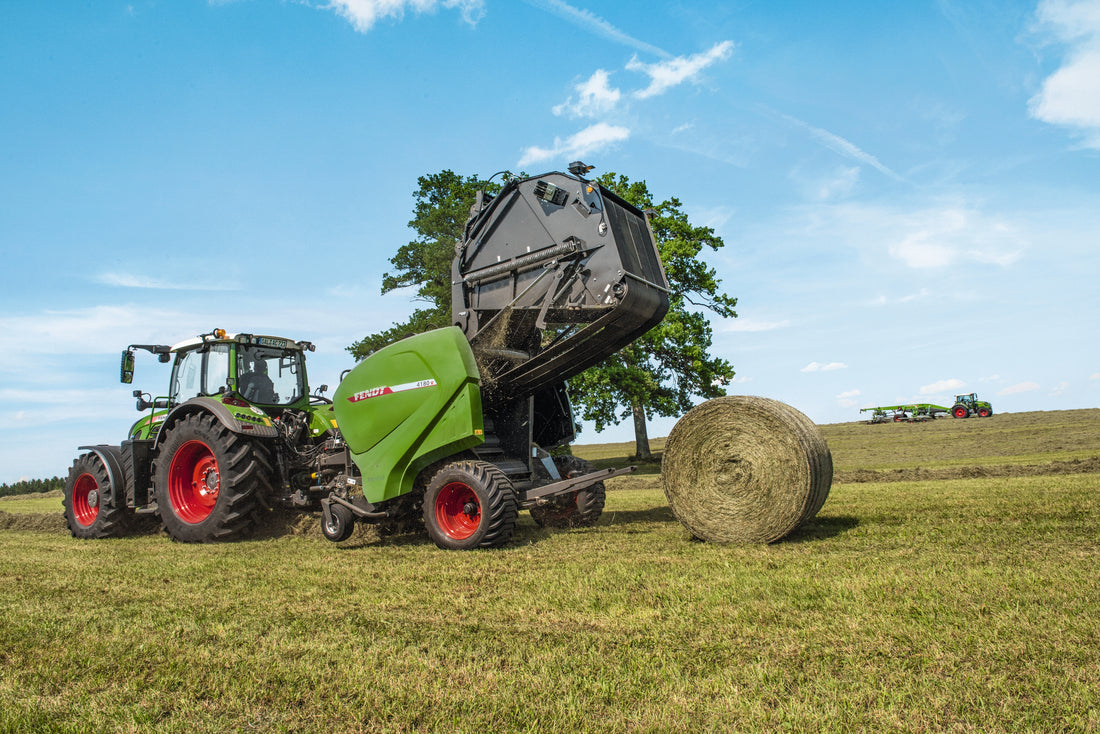

Featured photo: Fendt variable Rundballenpresse by AGCO-Fendt, licensed under CC BY-SA 4.0, via Wikimedia Commons. XES Netting is not affiliated with, endorsed by, or sponsored by any baler manufacturer; brand and model names are used only to identify equipment.
