Quick answer: Round-baler net wrap is made on a continuous production line. The seven core steps are:
- Extrude food-grade HDPE (high-density polyethylene) resin into thin monofilament tape.
- Blend in a UV-stabilizer masterbatch.
- Knit the tapes into an open Raschel mesh on warp-knitting machines.
- Heat-set the web for dimensional stability.
- Slit to width (48", 51", 64" or 67").
- Wind onto a cardboard core.
- Weigh, label, and palletize the finished rolls for shipment.
The whole sequence — pellets in, palletized rolls out — runs continuously around the clock in modern net-wrap plants.
Most farmers have never seen a roll of bale net wrap before it shows up shrink-wrapped on a pallet. That's a shame, because once you've stood next to a Raschel knitting machine, you understand why a $240 roll of HDPE mesh actually wraps 200+ round bales without splitting, sagging, or shedding off the chamber. This is a walk through how bale net wrap is made — from the factory floor, not a desk.
Step 1: The raw material is food-grade HDPE resin
Net wrap starts life as small white-translucent pellets of high-density polyethylene (HDPE) — the same polymer family used for milk jugs, food containers, and water pipes. HDPE is chosen over LDPE (plastic films) or polypropylene because HDPE has:
- Higher tensile strength per gram — the long, linear polymer chains pack tightly together when oriented, giving you a stronger tape from less plastic.
- Better creep resistance — once wrapped, the net does not slowly stretch under load and let the bale lose shape.
- Excellent chemical inertness — silage acids, animal urine, rain, and farm-yard fertilizer don't degrade the polymer.
Resin grade matters. Reputable net-wrap factories run virgin HDPE with a melt flow index in the low single digits — material that's strong, predictable, and free of the contamination you get with recycled plastic regrind. If you ever see net wrap with grey streaks or visible specks inside the strands, that's regrind, and it's a hidden quality red flag.
Step 2: Extrusion turns pellets into monofilament tape
Resin pellets are vacuum-fed into a large extruder — a heated barrel with a rotating screw that melts the plastic, mixes in additives, and pushes the molten polymer out through a flat slot die. The output is a thin, hot HDPE film about half a millimeter thick.
That film passes immediately into a quench bath of chilled water to set the polymer crystallinity, then through a precision slitter that cuts the film into hundreds of narrow ribbons. Those ribbons are pulled through a hot-air oven and stretched to roughly 7-9× their original length. This stretching aligns the polymer chains lengthwise — the same trick that makes a thread of spider silk stronger than a steel filament of the same diameter.
The result is a flat, glossy HDPE monofilament tape, typically 2-3 mm wide, that's wound onto bobbins. Each bobbin holds several kilometers of tape ready for knitting.
Step 3: UV stabilization and color are added in the melt
Pure HDPE will photo-degrade in sunlight in a matter of months — chains break, the polymer becomes brittle, and the net falls apart in your hand. To prevent that, factories add a UV-stabilizer masterbatch directly to the resin before extrusion, so the protection is locked inside every molecule of the finished tape.
The dominant chemistry is HALS — hindered amine light stabilizers. HALS molecules don't absorb UV themselves; they intercept the free radicals created when UV hits the polymer and quench them before they can break polymer chains. Carbon black or color pigments are sometimes added alongside HALS to absorb some UV upstream of the polymer.
Our XES Extreme net wrap is independently tested to a 12-month outdoor-life specification per DIN EN ISO 4892-2 (A) — the German Agricultural Society's standard accelerated-weathering test using xenon-arc lamps and a defined wet/dry cycle to simulate one year of central-European sun on an open hayfield. (If you want to understand what that test actually measures, see our deep-dive on how to store round bale hay.)
Step 4: Raschel knitting builds the mesh
This is where bale net wrap becomes net. The monofilament tapes are fed onto a wide Raschel warp-knitting machine — a large industrial loom with hundreds of needles working in parallel. Two sets of yarns interlock: warp tapes running lengthwise, and weft tapes laid across them. The needles pull loops that lock the structure together every few millimeters.
The geometry is deliberate. The diamond-shaped openings are large enough to let the bale "breathe" (so trapped moisture can escape during storage), but small enough that loose hay stems can't push through and unravel a strand. The edge cords — the heavier reinforced bands on either side of the web — are knitted at the same time and keep the net from tearing inward as the wrap stretches around a bale.
A modern Raschel machine produces a continuous web 4-5 meters wide that flows off the loom 24 hours a day. The finished mesh is wound onto a master roll big enough to fill a small storage room.
Step 5: Heat-setting locks the geometry
Knitted mesh straight off the loom is dimensionally unstable — the loops can still relax and the web can shrink unevenly. The master roll is unspooled and pulled through a long heat-setting tunnel where carefully controlled hot air anneals the structure. The polymer chains briefly soften, the knit relaxes into its final geometry, and the mesh cools locked into shape.
Heat-setting is the single biggest reason a quality roll of net wrap rolls onto a baler cleanly without wandering edge-to-edge. Skipping or under-doing this step is what causes the "wrap migrates off the chamber" complaint you see in some farmer forums — the net is still trying to find its dimensions on your tractor instead of in the factory.
Step 6: Slitting to width and core winding
The heat-set master web is then fed through a precision slitter that cuts it into the four common US widths — 48", 51", 64", and 67". Each slit web is rewound onto a heavy cardboard core under controlled tension. Tension matters: too loose and the roll telescopes during shipping; too tight and the inner wraps print into each other and the net feeds unevenly on a hot July afternoon.
Roll length is set by counting meters as the web passes a measuring wheel — XES Extreme retail rolls are wound at 9,840 ft for the 48" and 51" sizes and 7,000 ft for the 64" and 67" sizes (see bale net wrap sizes guide for the math on why those lengths are matched to those widths). Once the target length is reached, the web is sheared, the leading edge of the next roll is tucked onto a fresh core, and the loom never stops.
Step 7: QC, labeling, palletizing, shipping
Every roll is weighed, inspected for diameter and edge uniformity, end-cap labeled with width × length × lot number, then bagged in opaque polyethylene film to keep UV exposure off the outermost wraps during transit. Rolls are stacked on hardwood pallets — typically 30 rolls per pallet for the 48"/51" sizes — wrapped with stretch film and strapped for ocean or over-the-road freight.
From the buyer's side, that pallet-line packaging is what you receive at the dealer or your farm. If you ever see a roll arrive without an end-cap label, without lot tracing, or with the outer poly bag torn off, treat that as a flag — quality factories do not skip those steps.
Why "factory-direct" is more than a marketing line
Most net wrap sold in the United States passes through three to five hands before it reaches a farmer: factory → importer/brand owner → master distributor → regional dealer → farm-store retail. Each layer adds margin, paperwork, and a few weeks of shelf time. Buying factory-direct means:
- Fewer hands, fewer markups — you pay closer to the cost of HDPE plus knitting time, not seven different gross-margin stacks.
- Direct traceability — if a lot has a problem, the people who can pull manufacturing records are the same people answering your support email.
- Specification consistency — there is no "private label rewrap" where a generic roll gets relabeled with a premium brand. What you see on the end-cap is what came off the Raschel machine.
If you've been buying through a dealer for years, the easiest way to test factory-direct is to compare a single retail roll side-by-side with your current brand on the same baler — same crop, same chamber, same conditions. See our best bale net wrap buyer's guide for a head-to-head framework.
FAQ
Is net wrap recyclable?
HDPE is a category-2 recyclable plastic, but in practice farm-collected net wrap is almost never accepted at municipal curbside recycling because it contaminates other plastic streams with hay fines, soil, and mold. A growing number of US co-ops and ag-plastic recyclers (search "ag plastic recycling" plus your state) accept clean, dry net wrap collected in a dedicated bag. See our piece on the environmental impact of HDPE bale net wrap for a fuller treatment.
Why is some net wrap green and some white?
Color is purely a pigment masterbatch decision; it does not change strength or UV life on its own. Green is dominant in North America because it blends with stored bales and shows dirt less. White is more common in Europe and on premium silage wrap because reflectance keeps the bale slightly cooler in summer storage. XES Extreme ships as grass green for the US market.
What's the difference between net wrap and CoverEdge™ style products?
CoverEdge is a John Deere-branded edge-to-edge wrap that uses a wider weft band at the edges so the net covers the entire face of the bale, not just the cylindrical surface. It requires JD baler models that are factory-fitted for it. XES Extreme is a standard-width drop-in alternative for non-CoverEdge balers — see our CoverEdge alternative comparison for the cost-and-fit details.
How long does a roll of XES net wrap take to install on a baler?
About 90 seconds once you've done it a few times. See how to load net wrap into a round baler for the seven-step routine and the troubleshooting cheat sheet.

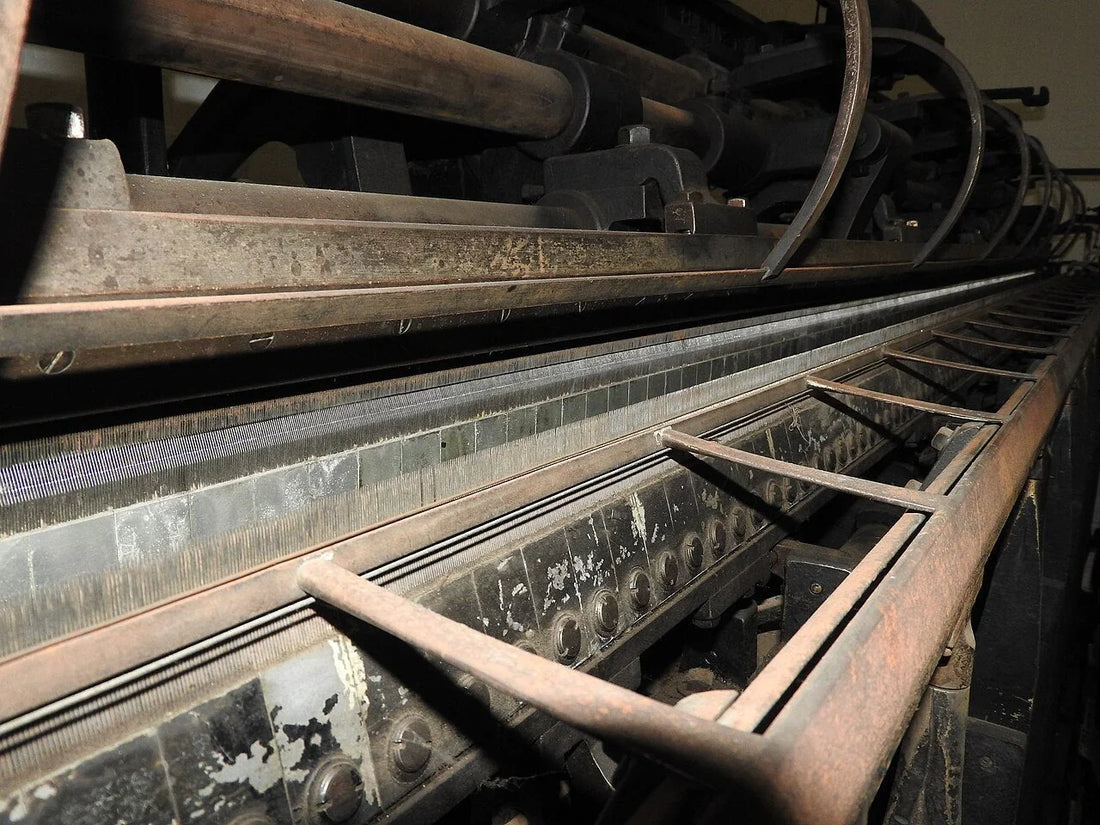

Featured photo: NIM 1910 Warp knitting machine by ClemRutter, licensed under CC BY-SA 4.0, via Wikimedia Commons.
