Quick answer: There is no universal direction or threading route for loading net wrap in a round baler. Identify the exact model, serial number or VIN, and fitted binding system, then follow that machine's decal and operator manual. John Deere's 468/568 instructions route the free end from the top of the roll; do not transfer that detail to other models.
Before touching the net-wrap system: Park on level ground, set the parking brake, lower the pickup and gate unless the exact manual requires another position, disengage the PTO, shut off the engine, remove the key, and wait for all motion to stop. Disconnect monitor or actuator power and relieve stored hydraulic energy exactly as the manual directs.
If the gate must be raised, use only the manufacturer's specified mechanical gate lock or support. Keep clear of the knife, rollers, actuator, belts, chains, pinch points, and stored-energy components.
Seller disclosure: XES Netting manufactures and sells bale net wrap. This guide explains how to find the correct loading procedure and work safely; it does not replace the operator manual, safety decals, or dealer instructions for your exact machine.
Loading means placing and routing the roll. It is not the same job as diagnosing a feed actuator, adjusting a brake, setting net tension, or servicing a cutting system. Those components and settings vary by baler generation and fitted attachment.
Start with the exact machine, not a generic route
Two balers with similar decals or the same chamber size can use different net-wrap attachments. Before opening a cover, record:
- Manufacturer and full model: Include suffixes such as Classic, Signature, Premium, Silage Special, or a series designation.
- Serial number or VIN: A model name alone may span revisions with different parts and procedures.
- Fitted binding system: Confirm whether the machine has factory net wrap, an optional attachment, a conversion kit, or a combined twine/net system.
- Manual publication or revision: Match the manual to the serial-number range and installed equipment.
If a used baler has an attachment that does not match the base machine's manual, identify the attachment by its own plate, part number, or installation paperwork. Do not copy a route from a neighboring baler, a newer generation, or a video that does not show the same model and binding system.
Check roll fit before lifting
A roll can have the expected width and still be wrong for the holder. Check every fit dimension against the exact manual or attachment specification before moving the roll to the baler.
| Item to verify | Why it matters | Where to verify it |
|---|---|---|
| Binding type | A twine-only holder or a different net attachment may not accept the roll. | Machine and attachment identification plates |
| Net width | The approved width depends on the chamber and net system, not the brand name alone. | Operator manual or attachment specification |
| Core and holder interface | Core diameter, plugs, cones, spacers, or supports must match the holder. | OEM parts information and manual |
| Maximum outside diameter | An oversized package may not clear the cover or loading mechanism. | Manual specification |
| Axial package length | This is the end-to-end length along the roll's core; it must fit between the supports. | Roll label and holder specification |
| Labeled usable length | Usable net length is a label specification; it cannot be inferred from package size. | Roll label or product documentation |
Use the roll-lifting method specified by the manufacturer. If the baler has no approved mechanical loader, use a suitable lifting aid or a team lift that preserves stable footing and keeps hands out of pinch points. Do not publish or rely on a generic roll-weight estimate.
How to find the correct loading and routing diagram
- Read the machine and attachment plates. Photograph the full model, serial number or VIN, and any separate binding-system identification.
- Find the original decal. Check the net compartment and cover for the routing and hazard decals. A missing or unreadable decal is a reason to obtain the correct replacement, not to guess.
- Match the operator manual. Confirm the model, serial range, fitted options, and publication revision before using its diagram.
- Use the OEM portal or dealer. If the exact manual is not public, register the machine or ask the manufacturer or dealer for the correct document.
- Resolve conflicts before loading. If the decal, manual, installed parts, or previous owner's route disagree, stop and have the configuration identified.
The Vermeer product-manual portal specifically asks owners for the model and 17-digit VIN, or the serial number on older machines. New Holland provides registered equipment resources through its official self-repair portal, while Case IH directs owners to its official operator-manual service.
A safe loading workflow without inventing a route
Use these work categories with the exact OEM procedure. They are not a substitute set of threading steps.
1. Prepare the machine and work area
Park on level, firm ground. Set the parking brake. Lower the pickup and gate unless the exact procedure requires otherwise. Disengage the PTO, shut off the engine, remove the key, and wait for every component to stop. Keep bystanders away.
2. Isolate electrical, actuator, and hydraulic energy
Disconnect monitor-controller or actuator power where the manual specifies. Relieve or secure stored hydraulic energy according to that manual. Never assume that shutting off the PTO prevents an electric actuator or hydraulically supported component from moving.
3. Support any raised gate exactly as specified
If the manual requires the gate raised, engage and verify the manufacturer's mechanical gate lock or support before entering any hazard area. Never substitute a loose block, prop, or hydraulic pressure for the specified lock.
4. Move and inspect the roll safely
Use the approved loader, lifting aid, or enough people to maintain control. Keep stable footing and protect hands from crush and pinch points. Remove packaging only as the exact manual directs. Use the PPE specified by the manufacturer; gloves do not make it safe to touch a knife or put hands near rollers.
5. Load, orient, and route only from the exact diagram
Follow the identified decal or manual for roll orientation, stripe position, supports, spacers, tension arms, bars, rollers, and the permitted amount of leading material. Do not invent a leader length, push material through, manually rotate the roll, add a knot, or put hands past a roller based on a generic guide. Keep hands away from rollers and the knife.
6. Close the machine before restoring power
Account for tools and packaging, move everyone clear, and close and latch every cover or shield. Restore power only from the normal operating position and in the sequence stated by the manual.
What official sources say for specific models
These examples show why a brand-wide rule is unsafe. Each statement is limited to the named model and source.
| Exact model | What the official source confirms | Limit of this example |
|---|---|---|
| John Deere 468, 468 Silage Special, and 568 covered by OMFH309531 | The official Deere routing page says to place the free end from the top of the roll between the net-frame cross-member and rubber roll. It also requires PTO disengagement, engine shutdown, and monitor-controller power disconnection before servicing. | Do not transfer this route, stripe position, or leading-material detail to another Deere generation or attachment. |
| Vermeer 604R Premium | Vermeer's official 604 R-series overview says the Premium model has an electric net-lift system that can move a roll from the ground or truck into the net-wrap system. | That source does not publish the threading route. It also does not establish that the 604R Classic or Signature has the same lift. Use the exact VIN-specific manual. |
| New Holland Roll-Belt 450 | New Holland's official self-repair service provides manuals and installation instructions for registered equipment. | No public route is asserted here. Register the exact machine and match the manual to its serial number and fitted binding system. |
| Case IH RB465 | Case IH's official manual service provides model-specific operator documentation. | No route, leader length, brake setting, or monitor setting is inferred. Use the document for the exact serial number and installed equipment. |
Verify the first cycle from the tractor seat
Before a powered cycle, confirm that all covers and shields are closed and latched, tools and packaging are removed, and every bystander is clear. Sit in the tractor seat and use only the monitor, an installed mirror, or a fixed camera to observe operation.
Compare what you can safely see with the exact manual: Did the system start when expected? Did the monitor show the expected state? Did the net track, apply, and cut without an alarm or abnormal sound? Stop immediately if anything differs. Never watch a powered cycle beside an open cover, reach toward a moving roll, or ask another person to stand near the baler.
Troubleshoot by symptom without guessing
First decide whether the symptom began during loading or routing, or only after the machine attempted to feed, spread, tension, or cut. That distinction prevents a loading check from turning into unsafe component service.
| Symptom | Category to check | Safe next action |
|---|---|---|
| Net does not start or feed | Roll fit and routing, then feed actuator, sensor, or drive | Shut down and isolate the machine. Recheck the exact diagram and roll specifications. If they match, use the OEM diagnostic procedure or dealer. |
| Net tracks to one side or coverage is uneven | Approved roll width, supports or spacers, route, spread system, or tension system | Do not apply a generic brake or tension adjustment. Isolate the machine and follow the exact model's inspection and adjustment procedure. |
| Net wraps around a roller | Routing, damaged material, contamination, roller, or cutting fault | Stop and isolate the machine. Do not pull material from rollers by hand. Use the OEM clearing procedure or dealer service. |
| Net feeds but does not cut, or leaves an abnormal tail | Knife, counterknife, actuator, timing, or sensor system | Treat this as a cutting-system fault, not a loading shortcut. Keep hands away from the knife and use trained service. |
| Monitor code or unexpected actuator movement | Electrical, controller, sensor, or actuator fault | Disconnect power as directed and use the code-specific OEM diagnostic. Do not bypass a switch or sensor. |
When to stop and call a dealer
- The model, serial range, or fitted net-wrap attachment cannot be identified.
- The decal and manual disagree with the installed parts.
- A cover, latch, gate lock, guard, or safety decal is missing or damaged.
- The roll does not fit the holder without force or improvised spacers.
- Material is caught near a knife, roller, actuator, belt, chain, or stored-energy component.
- A powered first cycle produces an alarm, unexpected motion, abnormal sound, or failed cut.
Once the exact fit specification is known, compare it with the labeled dimensions on the net-wrap product page. Before loading, inspect the exact roll, label, and packaging for moisture or physical damage, and follow the net manufacturer's storage instructions.
Frequently asked questions
Which way does a net-wrap roll go in a round baler?
There is no universal direction. Use the routing decal and operator manual for the exact model, serial number or VIN, and fitted binding system. John Deere's OMFH309531 instructions for the 468, 468 Silage Special, and 568 route the free end from the top of the roll; that example does not establish the route for another baler.
Can I use one set of net-wrap loading steps for every baler?
No. Roll supports, tension arms, routing bars, rollers, cutting systems, stripe positions, and permitted leading material vary by model and attachment. A safe general workflow can prepare and isolate the machine, but the loading route must come from the exact OEM decal or manual.
How much net should hang out after threading?
Use only the amount stated or illustrated in the exact operator manual. There is no safe universal leader length. Do not add slack, manually advance material, or add a knot based on a generic guide.
Can I watch the first net-wrap cycle with the cover open?
No. Close and latch all covers and shields, clear bystanders, and observe only from the tractor seat through the monitor, an installed mirror, or a fixed camera. Stop and isolate the machine before any inspection.
What information do I need to find the correct net-wrap instructions?
Record the manufacturer, complete model designation, serial number or VIN, fitted binding-system type, and any attachment plate or part number. Match those details to the manual's serial range and revision. If the configuration is uncertain, ask the OEM dealer to identify it before loading.

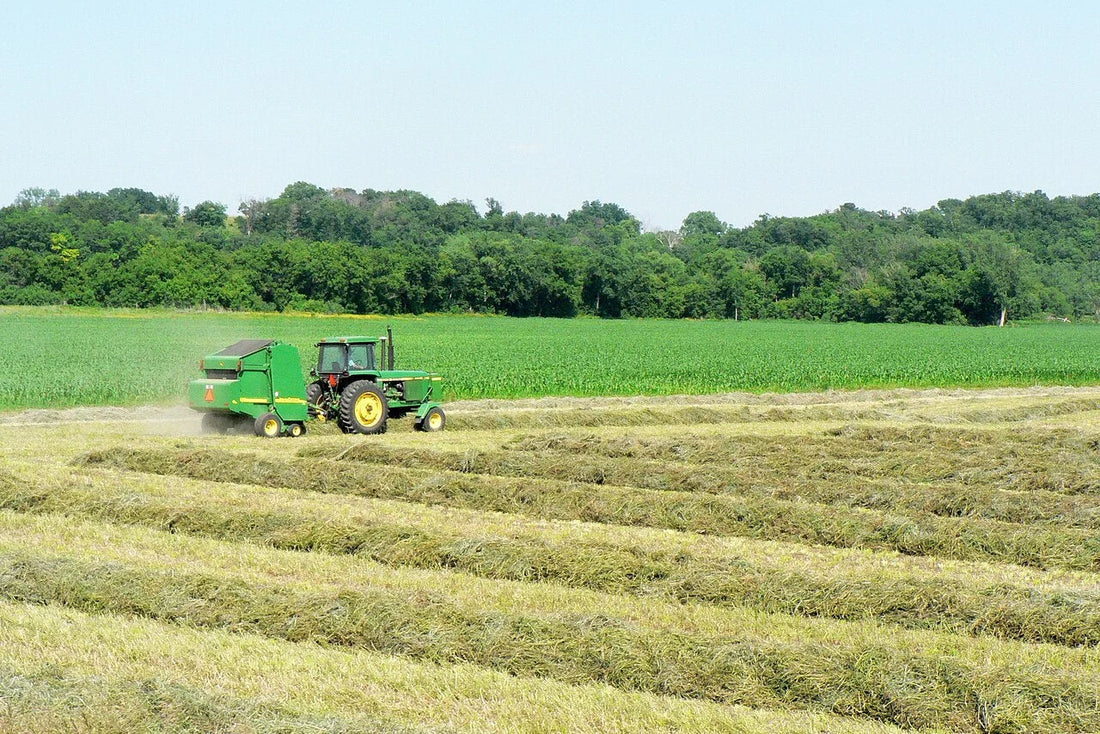

Inline photo: John Deere round baler 568 by Dudley B. Batchelor, Jr., licensed under CC BY-SA 2.0 via Wikimedia Commons.
