Quick answer: Identify the complete Vermeer model and serial number, get the matching manual, and confirm the pictured netwrap routing before adjusting parts. Then follow the symptom: check the feed path when a bale is bare, the leading tail and model-specific tension when net will not start, and the knife travel and routing when it will not cut. Lower guides and an uneven tailgate latch solved one documented 605M case, but that is not a failure ranking for other Vermeer families.
Safety before troubleshooting a Vermeer baler
Stop before reaching into the baler: Park on level ground, disengage the PTO, shut off the tractor, remove the key and wait for every moving part to stop. If the tailgate must be raised, engage the mechanical gate lock or support specified in the operator's manual for your exact model. Never rely on hydraulic pressure alone. Observe a live wrap cycle only from the cab, a mirror, a properly mounted camera or the machine's designated viewing point.
Vermeer has used the 504, 604 and 605 names across many generations, and Rebel and Rancher machines are not mechanically identical to every 600-series baler. Find the complete model suffix and serial number before adjusting a guide, brake or knife. Vermeer's product-manual portal asks for the model and 17-digit VIN, or the six-digit serial number used on some older machines, to locate the matching operator, maintenance and parts information.
Penn State Extension's baler-safety guidance also says to disengage the PTO, shut down the engine, remove the key, wait for moving parts to stop and use the lockout device before working beneath a raised baler component. The exact lock and procedure still come from the Vermeer manual for your machine.
Find your Vermeer model family first
Vermeer has reused the 504, 604 and 605 numbers across many generations, so the suffix matters more than the number. Match your machine below, then use the operator manual for that exact model and serial range.
| Model family | What to know | Start with |
|---|---|---|
| 605 series: 605J, 605K, 605L, 605M, 605N, 605 Super M, 605 Cornstalk Special | 5 ft wide chamber, with hardware differences across generations. One 605M case involved lower guides and a tailgate latch; the same report noted a newer 605N did not use a guide at every belt | Exact routing and hardware layout; inspect guides and latches only where fitted |
| 604 series: 604K, 604L, 604M, 604N, 604R, 604 Pro, 604 Rancher, 604S | 4 ft wide chamber. Net width differs from the 605 family — confirm before ordering rolls | Routing, net tail, brake setting |
| 504 series: 504M, 504N, 504R (Classic, Signature, Premium), 504 Pro | Smaller frame; trim levels change the monitor and net-wrap controls, not just the paint | Routing, guide clearance, monitor procedure |
| Rebel series: 5410, 5420, 5520, 6620 Rebel | Lighter-duty frame; net wrap was not fitted to every unit | Confirm the machine has factory net wrap, then routing |
| 605S Rancher | A current Rancher family with a standard mechanical netwrap system. Do not transfer an older 605 guide layout or setting without checking the 605S manual | Manual routing, leading tail and mechanical tension procedure |
| Rancher 6650 | A distinct current Rancher family. Vermeer lists netwrap as optional and net tension as a mechanical adjustment, so not every unit has the same wrapping equipment | Confirm netwrap is fitted, then use its exact routing and tension procedure |
Vermeer net-wrap symptom checks at a glance
| Symptom | First safe check | Safe next step |
|---|---|---|
| Monitor completes the cycle; bale is bare | Exact-model routing and the full feed path | If the model uses lower guides, inspect them and both tailgate latches to the manual specification |
| On a model with lower guides, bare bales return after adjustment | Both tailgate latches and gate alignment | Repair the latch or linkage fault before resetting the guides |
| Must press apply again | Routing and the available leading tail | Match the threading decal and restore enough tail for the next start |
| Net reaches the chamber inconsistently | Pan contact, roll centering and brake setting | Restore even feed-path contact and use the model-specific brake procedure |
| Ragged tail or net will not shear | Knife edge, full travel, brake and routing | Follow the exact knife-clearance procedure and replace a damaged knife |
| Net drifts sideways or wraps a roller | Roll centering, fitted guides, pan contact and tailgate alignment | Correct the mechanical feed path before changing wrap settings |
| Fails only with one roll or crop | Width, roll damage and a known-good-roll swap | Compare the two rolls under the same field conditions |
Monitor says wrapped, but the bale is bare
This symptom means the monitor saw a wrap command, not that the net reached the bale. First match the complete routing and installed hardware to the manual for the model and serial number, then inspect the feed path from the roll to the chamber. On models fitted with thin guide fingers near the lower tailgate roller, a bent or missing finger can steer net away from the bale.
The clearest field evidence is one resolved 2019 605M case. The baler began wrapping the lower roller every five or six bales after the operator tried to close the gate on a bale caught by the kicker. The owner later reported two findings: one guide was missing, and a broken bolt in the tailgate-cylinder linkage kept the right side from latching. After moving a guide, resetting the others and repairing the latch problem, the baler made 150 bales without another failure. Read the owner's 605M resolution report.
Evidence limit: this is a single documented repair, not service-frequency data. The owner also noted that a friend's newer 605N did not have guides on every belt. Use the case to understand how a guide and latch fault can interact on a 605M, not to assume the same guide count, layout or likely cause on another Vermeer.
Check in this order:
- Use the exact manual or threading decal to confirm routing and which guides or feed components should be present.
- If the machine uses lower guides, inspect each fitted guide for a missing fastener, bend or polished contact mark.
- Confirm the guides sit consistently against the belt path without contacting the lower drum. Use the fastener size and clearance in your model manual; do not assume every generation uses the same hardware.
- Inspect both tailgate latches, the cylinder-to-latch linkage and the gate alignment. A gate that does not close square can move the guide-to-belt relationship.
- After adjustment, close the gate and listen for contact only from the tractor seat. Shut down completely before returning to the tailgate.
Net will not start without pressing apply again
When the second press works, the feed path is presenting the leading edge intermittently rather than consistently enough for the bale or belts to take it. Do not jump straight to a starter roller or sensor.
Work the feed path from the roll toward the chamber:
- Threading and leading tail: Match the decal or manual exactly. A route that looks plausible can change the approach angle or leave too little net available for the next start.
- Net roll: Center the roll, remove damaged outer layers and confirm the width specified for the exact baler.
- Pan and belt contact: Check that the net pan or guide assembly contacts the belt path evenly where the manual specifies.
- Guide fingers: Look for a guide touching a roller, sitting away from its belt or carrying packed chaff.
- Spreader or spiral roll: If your model uses one, confirm its orientation after previous repair work.
- Brake setting: Follow the Vermeer procedure for the model and serial number. More or less brake is not universally correct.
A separate 605N operator discussion identifies the same practical checks: spiral-roll orientation, brake pressure, full pan contact, lower guide fingers and windrow shape. Those are field reports, not one setting for every Vermeer; apply only the checks that match the exact manual and can be completed with the machine shut down and locked out.
Net feeds but will not cut
A cut failure is a different system from a start failure. The net must be routed correctly, held at the specified tension and presented to a sharp knife through its full travel.
- Inspect without touching the edge. Look for a chipped, rounded or contaminated knife. Never test sharpness with a finger.
- Confirm full knife travel. A binding linkage, weak actuator movement or buildup can stop the knife short.
- Check brake and routing together. Slack net can fold away from the knife; excessive resistance can tear it before the cut.
- Use the manual clearance. Knife geometry differs across Vermeer generations, so avoid generic gap measurements.
Replace or adjust parts only after the model-specific procedure identifies the failed step. Keep the PTO disengaged, engine off, key removed and raised components locked out throughout inspection and maintenance.
Net tracks sideways or wraps around a roller
Sideways tracking can begin with an alignment, contact or surface problem. Clean loose net and chaff from the feed path, then compare the left and right sides rather than looking only at the side where the net accumulated.
- Confirm the roll is centered and turns freely without one end dragging.
- Compare guide position, pan contact and roller condition across the full width.
- Inspect belt lacing and exposed pins for anything that can catch the net.
- Check the tailgate closes and latches square.
- If the problem changes with windrow shape, build a square bale before changing hardware.
Clean buildup at the start of the day and whenever tracking changes; do not wait for a fixed bale count. A warm-machine pattern can help reproduce the fault, but it does not prove that the roller compound or thermal expansion is the cause. Shut down, remove the key, wait for motion to stop and lock out raised components before cleaning or inspection.
When a broader Vermeer baler problem looks like a net-wrap fault
Not every failed wrap starts in the netwrap attachment. The safe way to separate a wrap fault from a broader baler problem is to note what changed, reproduce the symptom from the operator's seat and follow the exact manual's test sequence. These are diagnostic branches, not a ranking of common Vermeer failures.
| What changed | What it can indicate | Next safe check | Dealer trigger |
|---|---|---|---|
| Wrap trouble began after a gate impact, or one side does not latch | Gate or latch geometry may have changed the net feed path, as in the documented 605M case | With the baler secured, compare both latches and the manual's gate-alignment points | Bent structure, unequal closing or a latch that will not hold |
| Starting or tracking changes with windrow shape | Crop distribution and bale shape may be affecting how the bale takes the net; a 605N discussion reports this as a check, not a universal cause | Build a square bale with the manual's recommended feeding pattern before changing hardware | The symptom remains with a square bale and the routing checks pass |
| The monitor shows a repeatable code or a manual test will not complete | The model-specific control, actuator or sensor test needs to lead the diagnosis | Record the exact code and follow the matching manual's diagnostic sequence | The code repeats, a component will not move through its test or the manual calls for service |
| Only one roll fails under the same conditions | The comparison isolates roll damage, fit or construction from a baler-wide fault | Repeat the same test with a dry, undamaged roll of the specified width | Both rolls fail in the same place after the mechanical checks pass |
Belt tracking, bearings, hydraulics, bale-density faults and structural damage require their own model-specific procedures. This article does not rank those failures or replace a Vermeer service diagnosis.
Prove whether the roll or baler is at fault
Change one variable at a time. After confirming routing, width and the mechanical feed path, install a known-good roll that has been stored dry and has undamaged edges. Run it in the same baler, crop and field conditions. If the failure stays in the same place, keep diagnosing the machine. If it follows the roll, inspect roll damage, width and construction before changing baler settings.
Use the known-good-roll comparison above and the Vermeer net-wrap size guide before buying parts.
When to call a Vermeer dealer
- The tailgate, lower roller or latch structure is visibly bent or will not close square.
- A guide repeatedly moves after correct adjustment.
- The monitor shows a repeatable actuator, sensor or solenoid fault.
- The knife or actuator cannot complete its manual test procedure.
- The problem continues after routing, fitted guides, gate alignment, cleaning and a known-good-roll test all pass.
Frequently asked questions
What should I check first when a Vermeer bale comes out without net?
Confirm the exact-model routing and installed feed hardware from the manual first. Then inspect the full path from the roll to the chamber. On models that use lower tailgate guides, check each fitted guide and confirm both sides of the gate latch evenly. Guides and a latch fault solved one documented 605M case, but that layout and cause should not be assumed on other models.
Why does my Vermeer require a second press of the apply button?
The leading edge is not reaching the bale consistently. Check threading, the available net tail, roll centering, pan-to-belt contact, guide clearance, buildup and the model-specific brake setting. Do not assume the starter roller needs replacement until those feed-path checks pass and the manual's test procedure points to the roller.
Can I watch a Vermeer wrap cycle from behind the baler?
No. Observe an operating baler only from the cab, a mirror, a properly mounted camera or the machine's designated viewing point. Before approaching the tailgate, disengage the PTO, shut off the tractor, remove the key, wait for all motion to stop and use the mechanical gate lock specified in the operator's manual.
How do I tell whether the net roll or the baler is causing the failure?
First verify routing, roll width and the mechanical feed path. Then run a known-good, undamaged roll in the same baler and field conditions. A fault that remains in the same location points to the baler; a fault that follows the roll points to roll damage, fit or construction.
Are the Vermeer 605S Rancher and Rancher 6650 netwrap systems the same?
Do not assume they are. Vermeer lists a standard mechanical netwrap system on the 605S Rancher, while netwrap is optional on the Rancher 6650 and its tension is mechanically adjusted. Confirm the equipment on the baler, then use the manual for that exact model and serial number.
Source and seller note: Model and equipment distinctions come from the linked Vermeer product and manual pages; safety steps are cross-checked against Penn State Extension. Field examples come from the linked AgTalk discussions and are labeled as operator reports, not prevalence data. XES manufactures and sells bale net wrap and is not Vermeer or a Vermeer dealer. Use the operator or service manual for your exact model and serial number before adjustment.

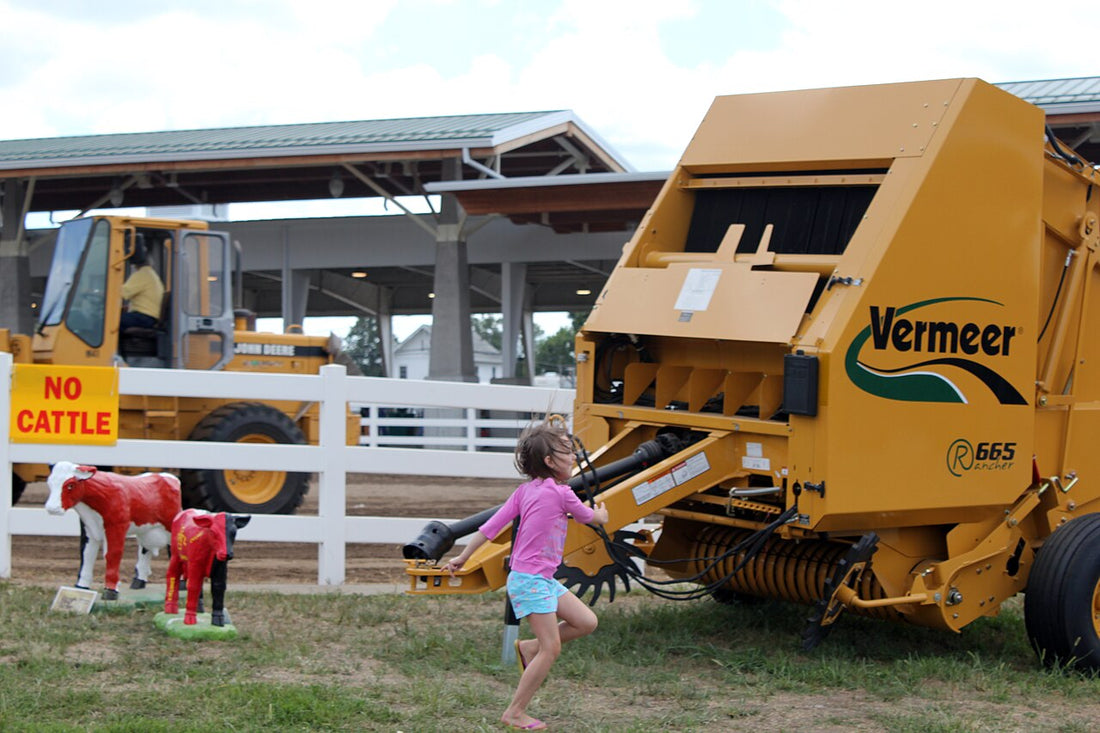

Featured photo: Vermeer Rancher-series round baler on display, by Quinn Dombrowski, licensed under CC BY-SA 2.0, via Wikimedia Commons.
