Quick answer: A slip clutch or shear bolt is the fuse in your baler's driveline — and a fuse only protects you if it can still blow. Clutches seize solid over winter from condensation and rust, and a seized clutch pushes every shock load straight through to the shear bolt, the gearbox, and the flywheel. The fix is a five-minute spring ritual: loosen the clutch bolts, run the PTO until the clutch visibly slips, then torque the bolts back to the manual's spec. Then use the shear bolt your manual specifies — not whatever grade 5 is in the parts drawer — and treat a broken bolt as a symptom to diagnose, never a part to keep replacing.
Every baler has a deliberate weak point. On some machines it is a friction disc clutch that slips when torque spikes; on others it is a bolt engineered to snap. Either way the job is the same: absorb or interrupt a shock load before it reaches parts that cost real money. The trouble is that both kinds of fuse fail quietly — a slip clutch that has rusted solid still looks exactly like a slip clutch, and it will keep looking fine right up until it destroys a gearbox.
This guide is about the driveline specifically — the PTO shaft, the clutches, the shear bolts, and the U-joints. For belts, chains, and bearings, see round baler chains and bearings service. For how fast to run, see round baler speed and PTO rpm.
The one job you should do every spring
If you take one thing from this page, take this. Before the first cutting, free the slip clutch and reset it. A Texas custom baler with decades on round and square machines gives the procedure in one sentence:
"Always at beginning of hay season loosen driveline slip cutch then after slip clutch has visibly slipped tighten SC nuts back to spec's."
— Tx Jim · HayTalk thread 15886
The reason is simple physics plus a barn full of humidity. Friction discs sit clamped between steel plates all winter, and steel plus moisture equals rust:
"I make it a habit of slipping all the clutch/brake units on the haytools every spring. Sitting in the barn all winter, they tend to sieze up from condensation and rust." [sic]
— ARD Farm · HayTalk thread 17607
Note that he says all the clutch and brake units — not just the main driveline one. More on why that matters in a moment.
How to burn in a slip clutch
The procedure varies slightly by machine, so your operator manual wins any disagreement with this list. But the shape of it is consistent:
- Park safely. Level ground, tractor off, key out, everything stopped. You will be working right beside a shaft that is about to spin.
- Back the bolts off. Loosen the spring-loaded bolts or nuts on the clutch until the pressure plates are barely holding the friction discs. On some designs the plates will not fully separate because of locating pins — that is normal.
- Slip it. Start the tractor, engage the PTO briefly, and let the clutch slip for a moment. You want to hear and see the discs break free and rotate against the plates.
- Re-torque to spec. Shut down, then tighten back to the manual's figure. On plate-style clutches, the bolt shoulder should seat against the pressure plate.
One experienced dealer tech describes the same reset when diagnosing a round baler that kept stalling:
"remove all the bolts from the main slip clutch and free the slip clutch disc from the pressure plates. The center pressure plate has pins which corresponds with holes on the discs so you will probably not be able to separate the discs from the center pressure plate. There should be enough room to separate the two end plates from the disc. Install the bolts loosely in the slip clutch. Start the tractor and the pto and allow the slip clutch to slip momentarily. Tighten the bolts completely. The shoulder on the bolt should be tight against the pressure plate."
— mike10 · HayTalk thread 93224
A clutch that is too tight is just as bad as one that is rusted, because it will not release at the torque it was designed to release at. And a clutch that is too loose wears itself out fast — which is why "back it off and leave it loose" is not the answer either. Set it to spec.
This is not just shop-floor folklore. Weasler, which builds the PTO drivelines fitted to a lot of hay equipment, publishes the same procedure and puts a number on when it is required: run-in is "necessary for all new clutches and any clutch that have not been used for approximately 60 days" [sic]. Their M-Type instructions say to loosen the outside bolts until they are just loose, tighten them all one half turn, then run the PTO "for a few seconds or until clutch visibly smokes" before shutting down and retightening. A winter in a shed is well past 60 days, which is exactly why this belongs on the spring checklist. Weasler's general driveline manual is blunter still: "After prolonged periods of non-use friction clutch must be checked for freeze-up. Release the friction discs and adjust to correct torque before putting into operation."
Two cautions from the same manual, because they are easy to get wrong: measure the original spring height before you release the springs, and do not exceed the manufacturer's recommended settings or fit a spring that is not the recommended one. If you back a clutch off without recording where it started, you have no reference to set it back to.
Why a seized clutch breaks expensive things
Here is the cascade that catches people. The clutch and the shear bolt are supposed to work as a team: the clutch absorbs small shocks continuously, and the bolt is the last resort. Take the clutch out of the equation and every shock arrives at the bolt undiminished.
"Check that slip clutch! Burn it in, the procedure should be in the manual (Loosen bolts, start tractor, slip clutch, retighten bolts to specified torque). The slip clutch acts like a shock absorber, and slips slightly in tough going, or when the knotter clutch kicks in etc. A frozen slip clutch will be causing shock loads to be transferred through the shear bolt, causing it to break."
— askinner · HayTalk thread 19421
That is the mild version — you break bolts and lose time. The severe version is when the shear-bolt hubs themselves have rusted onto the shaft, so the bolt cannot shear cleanly either:
"If your balers """driveline protection is seized"" it won't be free to do what it was designed to do which is "SLIP" the major concern.??? I know your balers driveline protection isn't slipping BUT that's not the most important issue!!" [sic]
— Tx Jim · HayTalk thread 98988
In the same thread he spells out what happens next, in capitals, because he has done it:
"THEORTECTICALLY IF SHEAR BOLT HUBS happened to be SEIEZED & you plug baler with a sufficient HP tractor you will DESTROY SOME BALER DRIVELINE COMPONENTS. BTDT" [sic]
— Tx Jim · HayTalk thread 98988
And the same failure chain shows up on small square balers, where the flywheel bolt pays the price:
"I do know from experience a seized slip clutch on JD sq balers will cause premature failure of flywheel shear bolt."
— Tx Jim · HayTalk thread 99926
Note that the big-tractor detail matters. A tractor with enough power to muscle through a plug will happily hand that torque to a driveline that has no way to let go. More horsepower is not a substitute for working protection — see tractor HP for a round baler for the sizing side of that.
A round baler has more than one clutch
This is the part most owners never learn, and it turns "something is slipping" from a mystery into a two-minute diagnosis. On a typical belt-type round baler there are several protection points, not one. A dealer tech walked a customer through the whole map:
"You have four slip clutches and one drive clutch on the baler. The main drive clutch in front of the gearbox, The pickup clutch is on the center shaft of the pickup. The floor roll slip clutch is about belt height on the left side of the baler. The chain coming from the front drive shaft is attached to it. The sledge roll clutch is on the right side of the baler. The drive roll engagement clutch is at the top of the baler on the left side and drives the belts."
— mike10 · HayTalk thread 93224
Better still, each one announces itself differently — so you can tell which is slipping by what you hear and what stops turning:
"While the plate clutches at the main drive, pickup, and sledge will not make any noise when slipping if everything is stopping then the floor roll clutch and the engagement clutch must be slipping unless the main clutch itself is slipping. …
When the floor roll clutch slips you will hear the noise and the pickup will also stop since the pickup is also driven through that clutch. …
When the sledge roll clutch slips you will see your belts going all over the place but they will not stop."
— mike10 · HayTalk thread 93224
He adds one more tell for the belt engagement clutch: "If you feel the baler jump while baling or hear a squeak along with the jump, the belt engagement clutch is slipping."
Exact locations and counts vary by brand and model — a Vermeer is not a Deere is not a New Holland — but the principle transfers. Open the parts diagram for your machine, find every clutch, and know what each one protects. Then when something slips mid-field you are checking one component instead of the whole baler.
The diagnosis-by-symptom table
| What you observe | Likely culprit | First thing to check |
|---|---|---|
| Everything stops turning, engine barely loads | Main driveline clutch slipping — or the tractor's own PTO clutch | Open the front driveline cover and watch the main clutch under load |
| Loud racket, pickup stops, belts keep going | Floor roll clutch (jaw type) slipping | Floor roll clutch at belt height, left side on many machines |
| Belts wander all over but nothing stops | Sledge roll clutch slipping | Sledge roll clutch, right side |
| Baler jumps with a squeak while baling | Belt drive-roll engagement clutch | Top left of the baler where the belts are driven |
| Shear bolt breaks in heavy windrows | Pickup clutch not slipping when it should | Free and reset the pickup clutch before blaming the bolt |
Shear bolts: the correct one is the one in the manual
Ask around and you will hear "always use OEM." That is the safe default, and on some machines it is genuinely the only right answer, because the bolt is a specific alloy and hardness sized to break at a specific torque. A dealer tech puts it first on the checklist:
"Whenever there is a shear bolt problem the first thing to check is if the correct shear bolt is being used. The shear bolt must be an OEM bolt and if I remember correctly the bolt is yellow in color."
— mike10 · HayTalk thread 102128
But "always OEM" is not literally true across every machine and every position, and pretending otherwise makes farmers ignore the rule. One owner with 30,000-plus bales through a Massey noticed his own baler used both kinds:
"The knotter and flywheel shear bolts are standard Grade 5 bolts that I can purchase at any hardware store but the stuffer shear bolts are a special bolt I have to get from MF - why?"
— jd-tom · HayTalk thread 23246
So the honest rule is narrower and more useful: use exactly what the parts book specifies for that position on that machine. Sometimes that is a hardware-store grade 5; sometimes it is a special bolt with a reduced shank. Substituting a stronger bolt does not make the baler tougher — it moves the failure point to something that is not designed to fail. Substituting a weaker one leaves you replacing bolts all afternoon.
Driveline manufacturers state it the same way, and note that grade is only one of three things that matter: "Replace sheared bolts with the manufacturer's recommended diameter, length and grade only!" Diameter sets the shear area, length decides whether an unthreaded shank or a thread sits in the shear plane, and grade sets the material strength. Change any one of the three and you have changed the torque at which the bolt lets go — which is the entire specification you were relying on.
The distinction is not snobbery about brand-name parts. When a round baler owner started shearing bolts every third or fourth bale and reported he was running "Tractor Supply Grade 5 Shear Bolts. Not sure if they are OEM but never had a problem like this before yesterday," the answer was specific about why:
"That is the first thing to try. Regular grade five bolts are not made like the original equipment bolts are."
— mike10 · HayTalk thread 102436
Diameter matters as much as grade. In a separate thread about a New Holland shearing its PTO pin, the size check came before anything else:
"Are you using NH shear bolts. Are you using the correct size shear bolt, it should take two 7/16” wrenches."
— mike10 · HayTalk thread 103722
Keep the right bolts in a labelled bag in the toolbox, and keep sizes separate. It is genuinely common to find two sizes of knotter bolts mixed in one box and reach for the wrong one at dusk.
A broken shear bolt is a symptom, not a part
The single most expensive habit in baler ownership is treating shear bolts as consumables. The bolt did its job; something made it necessary. Find that something before the second bolt goes in:
"I always tell owners when I go over the baler operation with them that if that shear bolt breaks there is a reason and you better find it.. Most of the time it won't cost to much for the repair when the first shear bolt shears, but if you put in the second shear bolt, without finding the cuase and inspecting the knotter, it could cost you big time." [sic]
— mike10 · HayTalk thread 26521
On a square baler the usual suspect list, roughly in order of how often it turns out to be the answer:
- Needle safety latch out of adjustment — cables stretch and parts wear until the latch enters the chamber early. This is the most common cause on many machines.
- Knotter brake not holding — the needles drift into the chamber and get hit.
- Drive latch not holding the drive pawl — effectively de-clutches the knotter drive mid-cycle. Tell: the bolt breaks with the knotters halfway through their travel.
- Wrong shear bolt.
- Low engine speed. Running under rated PTO rpm puts more load on the bolt, not less.
- Timing. Check it at the start of the year.
The same tech ends that list with the line worth taping inside the toolbox lid:
"If the bolt is shearing at any time, then you may want to check your slip clutch, use the correct bolt, and run the baler at 540 rpm."
— mike10 · HayTalk thread 67658
There is a diagnostic trick hidden in that list: note where the needles are when the bolt breaks. Needles just entering the chamber with the metering wheel tripped points at safety-latch adjustment or timing. Needles nearly at the top of travel points at the drive latch. Metering arm not fully up with needles already in the chamber points at the brake. The position of the mechanism at the moment of failure tells you which system let go.
And on a plunger machine, do not forget the load side of the equation. Worn side rails where the knives cross add clearance, and clearance adds load: "Ideally you want only .030" clearance between the knives for a clean cut and lower power requirement." Bales packed too tight, or a thrower slamming heavy bales at low rpm, will also find the bolt.
On a round baler, look at the tailgate and the chamber
Round balers break bolts for a different set of reasons, and two of them are worth checking before you touch anything mechanical. The first is debris riding around inside the chamber:
"Mine broke 4 times before I realized some larger tree limb logs/broken wood was circulating inside baler and jamming the belts, and bolts just sheared off. My lesson learned is I will use a ladder and check the top of the baler for debris before baling lol, not just from the ground up!!"
— HayGrandma · HayTalk thread 102436
The second is a tailgate that is creeping open while you bale, usually because the lift cylinders are bypassing internally:
"just had that issue with my 648 and it was caused by the hydraulic cylinders leaking by and letting the rear gate open while baling. I think you need to fix the leaky cylinders."
— pettibone · HayTalk thread 102436
Beyond those, the round-baler checklist runs through the drive path: belt tension and whether the belts are riding on the bottom of the pulleys, apron chain slack with an empty chamber and the gate closed (there should be none), uneven apron-chain wear side to side, a missing floor roll drive chain, and play in the floor roll ends. Bolts that break specifically at bale ejection point at the tailgate and reverse-drive linkage rather than at the crop.
U-joints, shaft angles, and phasing
The rest of the driveline deserves a look while you are in there. Two things go wrong quietly.
Unequal U-joint angles. A single U-joint does not transmit rotation at a perfectly constant speed through a turn — it speeds up and slows down twice per revolution. Two joints cancel each other out only if their angles are close to equal and the yokes are correctly phased. Get it wrong and you feed a vibration into the gearbox all day:
"You want the first two pto ujoints to be as close to equal angles as possible to cut down on noise coming from the sledge roll gears. If the pto shaft is level or looks like it is in a straight line from the gearbox you need to adjust this bearing and/or hitch."
— mike10 · HayTalk thread 18174
Practically: match the tractor drawbar height to the baler's spec, and check the front PTO support bearing position. Some machines let you rotate an offset mounting plate 180 degrees to change the shaft angle — a free fix for a noise you might otherwise chase into the gearbox.
Shielding. The straight part of the shaft is usually covered; the U-joints and connectors often are not, and those are where clothing catches. Penn State Extension's PTO safety guide is blunt about the numbers: a driveline at rated speed turns 540 rpm (9 times a second) or 1,000 rpm (16.6 times a second), and "many IID shaft entanglements happen while the shaft is turning at one-half or one-quarter of the recommended operating speed." Replace missing guards. Shut the PTO off before you touch anything.
The overrunning clutch and off-season storage
Two smaller items round out the driveline.
An overrunning clutch lets the baler's rotating mass coast to a stop instead of driving the tractor's transmission backward when you disengage. When one fails it usually fails from the inside: springs break and pins stick in their bores, so the clutch either will not engage or will not release. If your baler's flywheel or rotor keeps driving after you pull the PTO lever — or the machine will not take drive at all — the overrunning clutch is worth pulling apart before you condemn anything bigger.
Worth clearing up a common misconception: an overrunning clutch is not a torque limiter and will not stand in for one. Weasler lists balers among the implements that need one, and says plainly that overrunning clutches "will not absorb any energy, so inertia start-up peaks must be dampened by other means." It handles coast-down. Your slip clutch and shear bolts handle overload. Having one working does nothing for the other.
For off-season storage, releasing spring tension on flywheel and driveline clutches keeps the friction material from taking a set against the plates through six months of humidity. It also guarantees you re-torque them in spring, because the baler will not work until you do. This one is straight out of the manufacturer's own instructions too — "Before seasonal storage, release spring tension. Store the clutch dry." Grease the U-joints and the telescoping shaft while you are there, then park the machine inside if you can. The same condensation that rusts a clutch solid is what rusts everything else.
Where net wrap fits in the driveline story
Two connections, and neither is a stretch.
First, the net system is itself a place where the driveline can get loaded unexpectedly. If wrap feeds into a running but empty chamber and balls up, the resulting jam goes straight back up the driveline — the sort of event your protection exists for. Keeping the net system in adjustment is driveline maintenance by another name; start with net wrap won't start or feed if yours is misbehaving.
Second, consistent wrap means consistent load. Net that varies in width or strength across the roll makes the wrap cycle uneven, and uneven is exactly what a driveline dislikes. Our net is DLG-tested (Report #7439) for uniform strength across the full roll width, so the wrap cycle is the same on bale 1 and bale 900. Widths and lengths are on the net wrap product page.
And the everyday connection: a machine whose fuses actually work is a machine that finishes the field. Most of what kills a hay day is not weather — it is a two-hour repair that a five-minute spring procedure would have prevented.
The bottom line
Free and reset every slip clutch before the season starts, then torque them to the manual's spec — not tighter, not looser. Know where every clutch on your machine lives and what noise each one makes, so a mid-field slip is a diagnosis instead of a mystery. Use the exact shear bolt the parts book calls for in each position. And when a bolt breaks, stop and find out why before the second one goes in, because the first bolt is cheap and the knotter behind it is not.
Frequently asked questions
Why does my baler shear bolt keep breaking?
The most common hidden cause is a seized or over-tightened slip clutch. When the clutch cannot slip, every shock load transfers straight through to the shear bolt, so it breaks repeatedly even though nothing looks wrong. Other frequent causes on square balers are a needle safety latch out of adjustment, a knotter brake that is not holding, running below rated PTO speed, and using the wrong bolt. Free and reset the clutch first, then work the list.
How do you burn in a slip clutch on a baler?
Loosen the clutch bolts or nuts until the pressure plates barely hold the friction discs, start the tractor, engage the PTO briefly so the clutch visibly slips, then shut down and tighten the bolts back to the torque figure in your operator manual. On plate-style clutches the bolt shoulder should seat against the pressure plate. Measure the original spring height before you release anything, so you have a reference to set it back to. Driveline maker Weasler says run-in is required for any clutch unused for roughly 60 days — so once every spring, after a winter in the shed, is the right interval.
Do I have to use OEM shear bolts?
Use exactly what the parts book specifies for that position on that machine. On some balers certain positions take a standard grade 5 bolt you can buy anywhere; other positions take a special bolt with a specific shank and hardness that only the dealer stocks. Weasler's driveline manual says to replace sheared bolts with the manufacturer's recommended diameter, length and grade only — all three matter, because diameter sets the shear area and length decides whether shank or thread sits in the shear plane. A stronger bolt does not make the baler tougher — it just moves the failure to a part that was never designed to break.
How many slip clutches does a round baler have?
More than one. A typical belt-type round baler has several protection points — commonly a main driveline clutch ahead of the gearbox, a pickup clutch, a floor roll clutch, a sledge roll clutch, and a belt drive-roll engagement clutch. Counts and locations vary by brand and model, so check your parts diagram. Each one protects a different subsystem and gives a different symptom when it slips.
Can a seized slip clutch damage my baler?
Yes, and that is the whole point of servicing it. A clutch that cannot slip transfers shock loads to the shear bolt, the gearbox, the flywheel, and the driveline itself. If the shear-bolt hubs have also rusted onto the shaft, there is no fuse left at all — plug the baler with a high-horsepower tractor in that condition and you can destroy driveline components outright. Experienced operators report exactly that outcome.
This guide is maintained by the XES Netting team — a bale net-wrap manufacturer. Every farmer quote in this post is verbatim with a thread link, so you can go read the originals; [sic] marks spelling as posted. Procedures and torque figures vary by make and model — your operator manual and parts book always win. Shut the tractor off, remove the key, and let everything stop before working on a driveline.

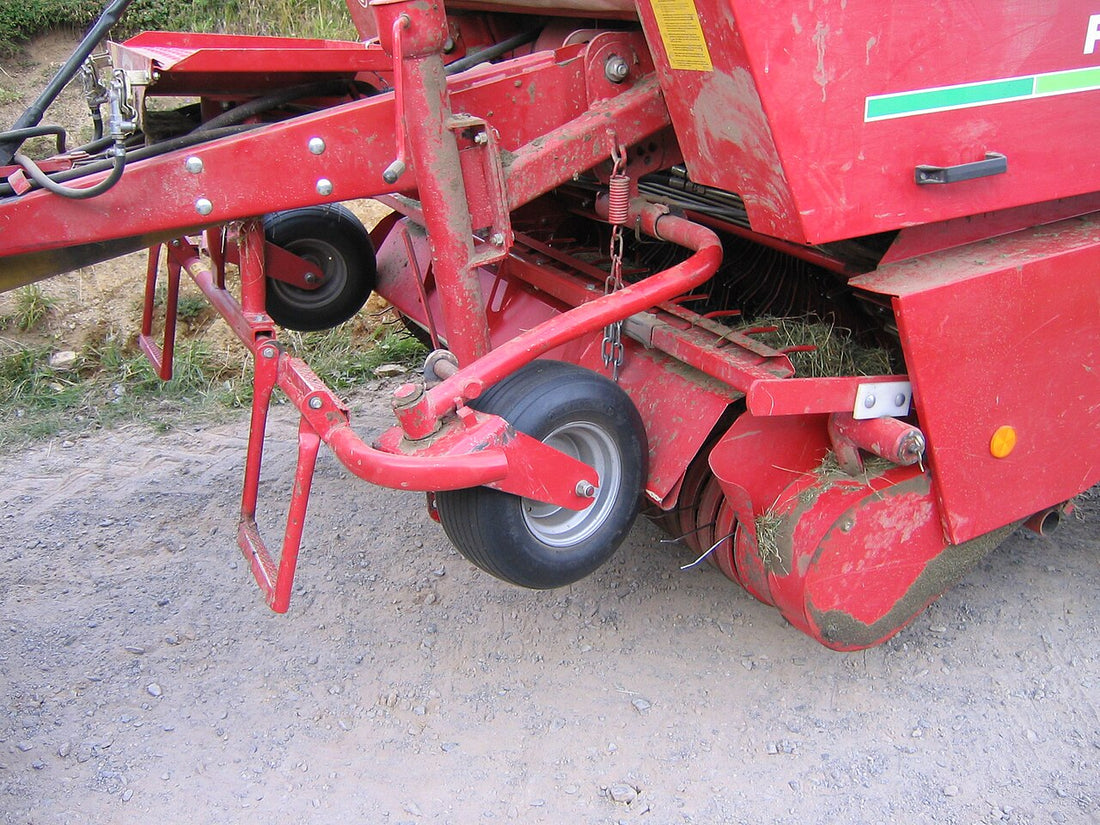

Featured photo: Round baler 3069 by Flominator, licensed under CC BY-SA 3.0, via Wikimedia Commons.
