Tractor Setup for a Round Baler: Drawbar, PTO, Hydraulics and Power

By the XES Netting team — bale net-wrap manufacturer · Updated September 3, 2026 · ~10 min read

Most "what tractor do I need for a round baler" advice stops at horsepower. That is the easy half. The questions that actually strand people in the field on the first day of hay are the connection questions: the drawbar is the wrong length, the tailgate won't latch, the monitor browns out mid-wrap, or the baler shipped for 1000 rpm and the tractor only has a 540 stub.

This guide covers everything except horsepower — that is handled separately in how much tractor horsepower a round baler needs. Here we deal with the drawbar, the PTO shaft, the hydraulics and the electrical supply, using manufacturer specifications alongside the failure modes operators actually run into.

Table of contents

• Start with the drawbar, not the horsepower
• 540 or 1000: which PTO shaft your baler wants
• Hydraulics: how many remotes, and what kind
• The float trap: why your neighbour's setting may break yours
• Electrical: monitor power is not a detail
• Where net wrap fits in all this
• Pre-hookup checklist
• Frequently asked questions

---

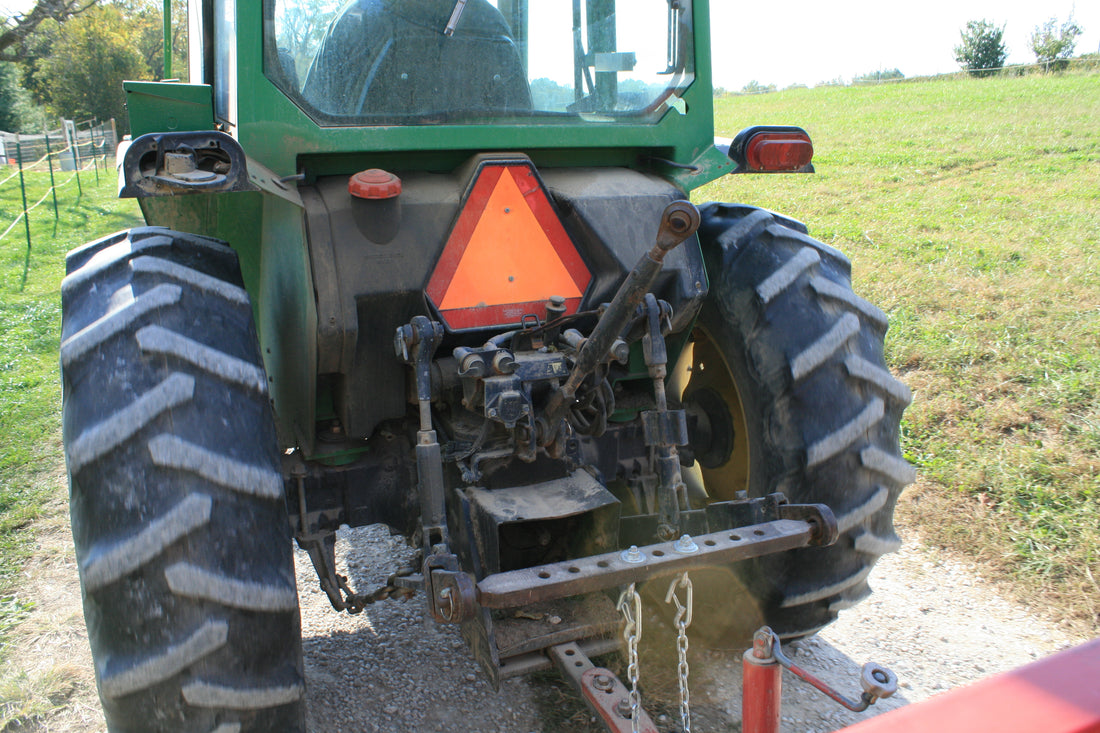

Start with the drawbar, not the horsepower

Drawbar geometry is the most-specified and least-read page in any baler manual. It matters because the PTO driveline has to telescope through its full range as the baler pitches and turns. Get the length wrong and you either bottom the shaft out or pull it apart; get the height wrong and the baler stops feeding properly.

John Deere publishes the numbers as a table in its 460M/560M operator's manual, and they follow the industry hitch standards, so they are a reasonable sanity check for most drawn balers:

PTO size	End of PTO to drawbar hole	Centre of PTO to top of drawbar	Top of drawbar to ground
540 rpm	356 mm (14 in)	152–305 mm (6–12 in)	330–508 mm (13–20 in)
1-3/8 in, 1000 rpm	406 mm (16 in)	152–305 mm (6–12 in)	330–508 mm (13–20 in)
1-3/4 in, 1000 rpm	508 mm (20 in)	203–305 mm (8–12 in)	330–559 mm (13–22 in)

Source: John Deere 460M and 560M Round Balers Operator's Manual, "Adjust Drawbar". Confirm against your own baler's manual before setting anything.

Four details from the same page are easy to miss and cause real damage:

• Pin the drawbar solid. A swinging drawbar must be locked in the centre position for PTO-driven implements, and the clevis removed.
• Drawbar thickness matters. Deere caps it at 51 mm (2.0 in) to avoid damaging the baler tongue and hitch.
• If the drawbar is offset, turn the offset down.
• If you use a shaft adapter to step a 1-3/4 in. shaft down to 1-3/8 in., measure from the end of the adapter, not the original shaft.

Height is not a rounding error either. Deere lists specific symptoms for each direction, which is a useful diagnostic list in its own right if a baler you already own is misbehaving:

Drawbar too low	Drawbar too high
Drags tall windrows	Pickup teeth will not touch the ground
Reduced feeding capacity by closing the feed opening	Gate will not clear the bale during discharge
Reduced pickup transport clearance	Inadequate driveline clearance when the tractor noses down
Inadequate pickup float at recommended spring settings
Slow bale discharge

Notice how many of those look like baler faults rather than tractor setup. "Pickup won't pick up clean" and "gate won't clear the bale" both send people hunting through the baler when the answer is a drawbar in the wrong hole. Deere also asks for a minimum of 76–89 mm (3.0–3.5 in) of clearance between the driveline and the top of the hitch strap, measured on level ground, so the shaft is not struck when the front of the tractor pitches down.

540 or 1000: which PTO shaft your baler wants

Balers are built for one PTO speed and labelled accordingly. Deere's instruction is unambiguous: never operate a baler equipped for 540 rpm operation with a tractor at a higher PTO speed, and the proper speed is printed on a tag on the front of the baler. Check that tag before you connect anything, particularly on a used machine where the gearbox may have been changed.

Many balers can be converted between the two. On several models it is a matter of flipping or rotating the gearbox and fitting the matching shaft — the baler's internals still turn at their designed speed either way. Operators who have done the swap describe it plainly, and flag a consequence most people forget:

"also when u spin at 1000 the drive line in turning almost twice as fast therefor u joints go out twice as fast also drawbar length should change when going from 540 to 1000"

— fredro · HayTalk thread 18015

That last clause is exactly what the manufacturer's table above says: change PTO size, change the drawbar setting. It is a genuinely common oversight on converted machines.

Why 1000 rpm exists at all

The trade-off is torque against shaft speed, and it was explained well in the same discussion:

"The reason for 1000 is that it cuts roughly in half the torque that the pto is transmitting. Generally, torque is what breaks things, so half the torque means less weight in steel needed to make the pto shafts."

— Gearclash · HayTalk thread 18015

That shows up in the field as broken parts on higher-powered machines running 540:

"I used to break one or two cross shafts on the 540 pto 567's each year, have not broke one on the 1000 pto 567's."

— carcajou · HayTalk thread 18015

But faster is not automatically better. A doubled shaft speed is harder on universal joints, and some operators find 1000 rougher in turns:

"I have a 540 baler and a 1000 baler. I would rather bale with the 540 simply because no matter what i do on the 1000 one the pto hammers when i turn unless i slow it way down."

— jtpfarm · HayTalk thread 18015

A constant-velocity joint at the tractor end changes that calculation, since it is designed to tolerate the sharp angles of a tight headland turn. As Gearclash noted in the same thread, "I should clarify that the baler I have has a CV joint by the tractor, in theory eliminating vibration and the need to adjust the drawbar length." Treat that as model-specific, not universal — the manual for your machine governs.

For most small and mid-size operations, the practical answer is the simplest one:

"One other advantage to sticking with 540 pto on your lower hp equipment, depends on the tractor of course but a lot of older or smaller tractors a 1000 rpm PTO was never an option."

— mlappin · HayTalk thread 18015

Note that this is about which shaft your baler is built for. What engine and PTO rpm to actually run while baling is a separate question, covered in round baler speed and PTO rpm.

Hydraulics: how many remotes, and what kind

This is the question that decides whether an older tractor can run a modern baler at all. The specification is short and worth quoting exactly:

"The tractor must have at least one double-acting selective control valve (SCV). If the baler is equipped with the optional hydraulic pickup lift, the tractor must have at least two SCVs."

— John Deere 460M and 560M Round Balers Operator's Manual, "Adjust Tractor Hydraulic Outlets"

So: one remote runs the tailgate. A second is needed if you have hydraulic pickup lift. Balers with hydraulic bale ramps, precutter drop floors, density systems or a mounted wrapper can want more still, which is why tractors with only one remote often end up with a diverter valve so one circuit can serve two functions.

Flow setting matters as much as count. Deere asks you to adjust the outlets to give roughly a 5-second gate opening time, checked with no bale in the chamber and hot oil, using the same flow setting in both extend and retract. A gate that slams open is hard on the machine; one that crawls costs you seconds on every bale.

Couplers are a real failure point, not a detail

Mixed-colour fleets accumulate adapters, and adapters restrict flow. In one long troubleshooting thread about a New Holland baler that would not latch behind an older Deere, an experienced hand went straight to the coupler design:

"I would start to look into changing that coupler out for one that uses a pin-type coupler, they allow for much more flow because they push the seats farther apart."

— Toyes Hill Angus · HayTalk thread 16326

The cheapest diagnostic in the same thread is worth remembering because it takes two minutes: "Do you have more than one SCV on your tractor? If so, try the other one," asked NDVA HAYMAN. If the fault follows the circuit, it is the tractor valve. If it follows the hose, it is the coupler or the baler.

The float trap: why your neighbour's setting may break yours

Here is a case where copying someone else's advice will cost you a day, because two brands want opposite things.

On the John Deere balers above, the manual is explicit: when lowering the baler gate, avoid putting hydraulics into float position — the SCV lever must return to the neutral position. Float is wrong on that machine.

Now consider a baler whose gate is a single-acting circuit: hydraulics raise the gate, and gravity plus spring latches close it. That design needs the return line to actually reach zero pressure. One operator hit this squarely when he put a new New Holland Roll-Belt 450 behind a 1977 John Deere 2640:

"The problem that I have is that the door will open and it will close but the latches will not close. I connected the baler up to a friend's Deere tractor and it worked fine. I connected it to a Kubota and it works fine."

— thall83313 · HayTalk thread 16326

The baler was fine. The tractor was fine. The combination was not. After rebuilding the valve, tee-ing in gauges and working through the thread, the cause turned out to be standby pressure that the tractor is designed to hold:

"I did talk with someone from the Deere dealership who tells me that the tractor hydraulics are designed to maintain 30 pounds of pressure. That doesn't seem like too much but apparently it is enough to keep the springs from pulling the latches closed."

— thall83313 · HayTalk thread 16326

A few tens of psi acting across a cylinder bore is a meaningful force — enough to hold a gate up against its latch springs. The diagnostic that found it is simple enough to do yourself: "you can T in a pressure guage with the door cylinder and make sure that it reads 0 or very close to it when the gate is lowered," wrote Toyes Hill Angus in the same thread.

The practical rule: find out whether your baler's gate circuit is single- or double-acting, then follow your manual on float versus neutral. If a gate will not latch on one tractor but latches on another, stop looking at the baler and start looking at residual pressure and couplers.

Electrical: monitor power is not a detail

A modern round baler is only as reliable as its 12-volt supply, because the monitor drives the wrap cycle. Deere's setup instructions cover three points that are worth applying to any brand.

Polarity is not forgiving. The manual states that the monitor-controller is polarity sensitive and the red lead must connect to the positive side of a 12 V system, warning that connecting it incorrectly can damage the system or prevent proper operation.

There is an actual voltage test. Rather than guessing whether a cigarette-lighter-style outlet is good enough, Deere gives a load test: with the engine running, read the voltage while holding the twine actuator stalled in the cut-off position. If the voltage is less than 9.7 V, install a convenience outlet kit and connect the power and ground wires directly to the battery terminal clamp bolts. That is the single most useful number in this article: measure under load, not at rest, because a marginal circuit reads fine until the actuator pulls current.

The 7-pin implement socket is not standardised the way you assume. Different tractors put different things on the centre pin, and a mismatch can quietly destroy a module:

"If you are running the baler on a tractor that has a keyed hot center pin instead of brake lights in the 7 pin implement plug, eventually the brake light relay in that module will get fried, and it seems it can take other stuff with it."

— Gearclash · HayTalk thread 95570

Before you plug a baler's light harness into an unfamiliar tractor, confirm what that tractor's centre pin actually carries. If your monitor is already throwing faults rather than failing to power up, work through round baler monitor troubleshooting instead.

Where net wrap fits in all this

Three of the four systems above land directly on wrap quality.

Power. The net wrap actuator is one of the highest-current things the monitor does. A supply that sags under load produces the classic intermittent fault: wrap starts on some bales and not others, with no pattern. That symptom is usually chased inside the baler, when the cause is a tired convenience outlet. If that sounds like your machine, run the load test above before replacing parts, then work through net wrap won't start or feed.

Drawbar height. A drawbar set too low closes the feed opening and a baler that feeds unevenly builds bales with soft, under-filled shoulders. Net wrap needs a firm, square-shouldered bale to grip; it cannot fix a bale the chamber never filled properly.

Gate timing. Gate speed is part of the wrap-and-eject cycle. A gate that opens too slowly holds the wrapped bale in the chamber longer than the cycle expects.

Once the tractor is right, confirm the roll width your chamber takes with the baler size checker before ordering.

Pre-hookup checklist

Work through this with the engine off and the key out before the first bale of the season, or any time you move a baler to a different tractor.

System	Check
PTO speed	Read the tag on the front of the baler. Confirm the tractor stub and speed match it. Never run a 540 baler faster.
Drawbar length	Measure end of PTO shaft to centre of drawbar hole against your manual's table for your PTO size.
Drawbar position	Locked in the centre position with pins. Clevis removed. Offset turned down. Thickness within spec.
Drawbar height	Within the manual's range, measured on level ground. Check driveline-to-hitch-strap clearance.
Driveline	Locked onto the stub (pull to confirm). Shields intact and free to rotate. Lubricated.
SCV count	One double-acting minimum; two if hydraulic pickup lift. More for ramps, drop floors or a wrapper.
Gate timing	About 5 seconds to open, empty chamber, hot oil, same flow both directions.
Float vs neutral	Follow your own manual. Deere says return to neutral, not float, on these models.
Couplers	Correct series, fully seated, minimum adapters. Suspect them first on flow problems.
Monitor power	Correct polarity. Load-test the voltage; go direct to the battery via a proper kit if it sags.
7-pin socket	Confirm what the centre pin carries on that specific tractor before plugging in lights.
Hose routing	Slack for full turns, no chafe points, nothing that can catch when you unhitch.

Frequently asked questions

How many hydraulic remotes does a round baler need?

At least one double-acting selective control valve for the tailgate. John Deere specifies a second SCV if the baler has the optional hydraulic pickup lift. Balers with bale ramps, precutter drop floors or a mounted wrapper may need more, and tractors short on remotes often use a diverter valve to share one circuit.

What should the drawbar length be for a round baler?

John Deere specifies 356 mm (14 in) from the end of the PTO shaft to the drawbar hole for 540 rpm, 406 mm (16 in) for a 1-3/8 in. 1000 rpm shaft, and 508 mm (20 in) for a 1-3/4 in. 1000 rpm shaft. Always confirm against your own baler's manual.

Can I run a round baler with only one hydraulic remote?

Often yes, if the baler has no hydraulic pickup lift and no ramp or wrapper. One double-acting remote runs the tailgate, which is the minimum most manufacturers specify. Where a second function exists, many operators fit a diverter valve rather than adding an SCV to the tractor.

What happens if the tractor drawbar is set too low for a baler?

The manufacturer lists five consequences: the drawbar drags tall windrows, feeding capacity drops because the feed opening closes, pickup transport clearance is reduced, pickup float becomes inadequate at recommended spring settings, and bale discharge slows. These commonly get misdiagnosed as pickup or gate faults on the baler.

Why won't my baler tailgate latch on one tractor but latch on another?

On single-acting gate circuits that close by gravity and spring latches, residual standby pressure can hold the gate up. Tractors are designed to maintain some pressure, and even a few tens of psi across a cylinder bore resists the latch springs. Restrictive couplers or adapters cause the same symptom.

How much voltage does a round baler monitor need?

Measure it under load rather than at rest. John Deere's procedure reads voltage while the twine actuator is stalled in the cut-off position, and calls for installing a dedicated convenience outlet kit wired to the battery terminals if the reading falls below 9.7 V. Polarity must be correct or damage can result.

The bottom line

Horsepower gets a baler turning; the connections decide whether it works. Set the drawbar to the dimension your PTO size calls for, pin it solid, and check the height against the manual's range. Confirm the speed on the baler's own tag before connecting the driveline. Provide at least one double-acting remote — two with hydraulic pickup lift — timed to about a five-second gate. Then load-test the monitor's power supply instead of assuming it is fine.

Most of the "new baler is junk" stories that fill the forums in June are really setup stories. Half an hour with a tape measure and a multimeter before the first bale is the cheapest hour in your hay season.

Next: work through the machine's own settling-in period in round baler break-in: what actually happens in the first 50 bales, size your tractor with tractor horsepower for a round baler, and if you are moving the baler between farms, review towing a baler on the road.

Sources: John Deere 460M and 560M Round Balers Operator's Manual (Adjust Drawbar; Select Tractor PTO Speed; Adjust Tractor Hydraulic Outlets; Tractor Convenience Outlet), accessed September 3, 2026. Operator experience quoted verbatim from HayTalk threads 16326, 18015 and 95570. Specifications differ by make, model and year — always set your own machine to the figures in its own manual.
